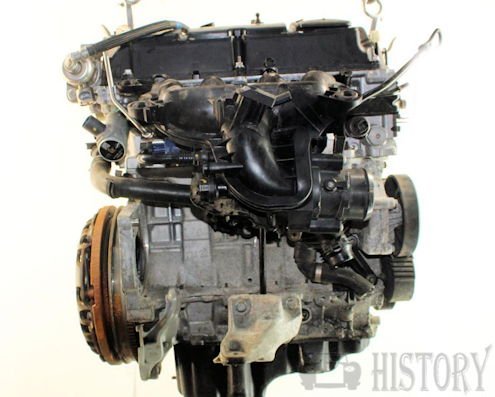

BMW N13 petrol engine

BMW N13 petrol engine


The BMW N13 is a petrol engine series of the automobile manufacturer BMW with four cylinders in row arrangement and turbocharging . The engine generation was presented in 2011. It premiered in the BMW 116i / 118i as a replacement for the previously installed direct injection gasoline engine N43 and will gradually be used in other model series. The basis of the N13 is the Prince engine, which was developed jointly by BMW and PSA Peugeot Citroën (also in miniused). Another difference compared to the 1.6-l Prince engine is that this engine has been modified to be longitudinally mounted. The N13 is another step in BMW's Efficient Dynamics program. With the N20 , which has also already been presented , the engine shares large parts of its technology, such as the turbocharger called BMW TwinPower Turbo , its HighPrecision Injection, Valvetronic and twin VANOS . The two-piece crankcase is made of die-cast aluminum.

In May 2012, the N13 was presented in a new expansion stage with 75 kW as the entry-level model for the BMW 114i , see web link from May 2012, and in the 100 kW variant in the BMW 316i . Both models are available since September 2012.

Since summer 2016, the engine is being replaced by the B38 and B48 .

Data

engine type capacity Bore × stroke Power at 1 / min Torque at 1 / min compression construction
N13B16 1.6 L (1598 cm 3 ) 77 mm × 85.8 mm 75 kW (102 hp) at 4000-6450 180 Nm at 1100-3900 10.5: 1 since 09/2012
100 kW (136 hp) at 4400-6450 220 Nm at 1350-4300 since 09/2011
125 kW (170 hp) at 4800-6450 250 Nm at 1500-4500
130 kW (177 hp) at 4800-6450 since 03/2015

Use

N13B16 (102 hp)
  • BMW 114i ( F20 ), 07/2012 to 03/2015
N13B16 (136 hp)
  • BMW 116i ( F20 ), 09/2011 to 03/2015
  • BMW 118i ( F20 LCI), since 03/2015
  • BMW 316i ( F30 ), since 11/2012
N13B16 (170 hp)
  • BMW 118i ( F20 ), 09/2011 to 03/2015
  • BMW 320i EfficientDynamics Edition ( F30 ), since 11/2012
N13B16 (177 hp)
  • BMW 120i ( F20 LCI), since 03/2015 to about 07/2016
