Dodge Coronet Sixth generation
 |
|
|
Make |
Dodge |
|
Production |
1971 to 1974 |
|
Class |
Motor car |
|
Assembly |
Michigan, U.S. |
|
Body types |
wagon,sedan |
|
Doors |
4-door |
|
Platform |
B-body |
|
Engines |
225 cu in (3.7 L) Straight 6 |
|
Transmission |
3-speed Chrysler A320 manual |
|
Wheelbase |
118.0 in (2,997 mm) |
|
Length |
Sedan: 207.0 in (5,258 mm) |
|
Width |
Sedan: 77.7 in (1,974 mm) |
|
Height |
Sedan: 53.7 in (1,364 mm) |

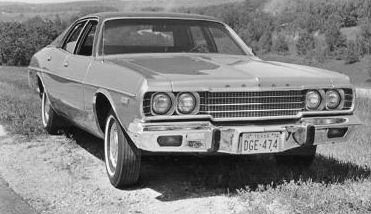

The Dodge Coronet Sixth generation car, was built in the 1970s from 1971 to 1974.
History
The new Coronet the same as of the four-door Plymouth Satellite , but had a smoother design. It existed only as a sedan and station wagon, with the related and also revised Charger coupe. The 6 cylinder 225 cu in (3.7 L) Straight 6 with 145 hp came standard for Coronet ,and all Coronet Custom Series except 9-passenger Station Wagon model; not available for other Series. For 1971 the Coronet fuel tank capacity was 17.4 imp gallons. Optional Accessories Torqueflite automatic gearbox with 3 ratios (1st 2.450, 2nd 1.450. 3rd 1, rev 2.00),2.930 axle ratio a limited slip final drive and power-assisted steering; servo brake; front disc with servo and air-conditioning system.
The 318 cu in (5.2 L) 318 LA V8engine with 230 hp was also Sandard for the Coronet and Coronet Custom as well as the Coronet Brougham and Crestwood Series.The 383 cu in (6.3 L) B "Magnum" V8 engine came with V8 275 hp was optional for Coronet and Coronet Custom as well as the Coronet Brougham and Coronet Crestwood Series. A 383 cu V8 with 300 hp also optional for the Coronet aswell as later the 400 and 440 cu in.
By 1972 revisions of the front grille, headlamps and taillights . From that point on, sales dropped sharply this is attributed to both the oil crisis and the merging of the Dodge and Plymouth models and equality compared to the other models of the Chrysler Group.
In 1973 and 1974 Dodge introduced the TorsionQuiet system, which included additional mufflers and rubber mounts for better ride comfort and lower noise inside the car .In addition to interior trim changes and front grille, headlamps,also the rear taillights.For 1973 The front and rear were again redesigned for the improvments to crash tests of the mid 1970s.
Related
Technical
-
Dodge Coronet 6th generation Technical details and specifications (1971-1974)
TRANSMISSION
driving wheels: rear
clutch: single dry plate
gearbox: mechanical
gears: 3 + reverse; synchromesh gears: 1st and 3rd
gearbox ratios: 1 2.950, Il 1.830, 1, rev 3.800
gear lever: steering column or central
final drive: hypoid bevel
axle ratio: 3.230
width of rims: 5" station wagons 5.5";
tyres: E78 x 14 station wagons H78 x 14.CHASSIS
integral
front suspension: independent. wishbones.longitudinal torsion bars, telescopic dampers (anti-roll bar on station wagons only)
rear suspension: rigid axle, semi-elliptic leafsprings, telescopic dampers.STEERING
recirculating ball
turns of steering wheel lock to lock: 5.30.BRAKES
drum. dual circuit
area rubbed by linings: total 314.2 sq In, 2.026 sq cm (station wagons 380.1 sq in, 2,451 sq cm).ELECTRICAL EOUIPMENT
voltage: 12 V
battery: 46 A
generator type: alternator, 37 ADIMENSIONS AND WEIGHT
wheel base: 115 in, 2,921 mm 4-door sedans
wheel base: 118 in, 2,997 mm; front Station wagons6
track: 59.70 in,1 ,516 mm rear track: 61.60 in.1,565 mm
length: 205.40 in, 5,217 mm 4-door sedans 207 in, 5,258 mm
length: station wagons 213.40 in, 5,420 mm
overall width: 76 90 in, 1,953 mm 4-door sedans 77.70 in, 1,973 mm —
overall width: station wagons 78.70 in, 1,999 mm
overall height: 52.30 in, 1 328 mm 2-door hardtop 52.60 in 336 mm 4-door
overall height: station wagons 56.40 in, 1,432 mm
dry weight: Coronet a-door Sedan 3,355 1b, 1,521 kg Coronet 6-passenger Station Wagon 3,855 1b, 1,748 kg — Coronet Custom 4-door
seöan 3,360 1b, 1.524 kg — Coronet Custom 6-passenger Station Wagon 3,860 1b, 1,750 kg
Charger 2-door Hard-Top 3350 1b, 1,519 kg6 cylinders 225 cu in 145 hp Engine
ENGINE
front 4 stroke
cylinders: 6, in line
bore and stroke: 3.40 x 4.12 in, 86.4 x 104.6 mm
engine capacity: 225 cu in, 3,688 cu cm
compression ratio: 8.4
cylinder block: cast iron
cylinder head: cast iron
crankshaft bearings: 4
valves: 2 per cylinder, overhead, in line, push-rods and rockers
camshafts: 1, side; lubrication: rotary pump, full flow filter
lubricating system capacity: 8.3 imp pt, 9-9 US pt, 4.7 1
carburation: 1 Holley R-4655A downdraught single barrel carburettor
fuel feed: mechanical pump
cooling system: water
cooling system capacity: 21.6 imp pt, 26 US pt, 12.3 1.
PERFORMANCE: 6 cylinders 225 cu in 145 hp
max power (SAE): 145 hp at 4,000 rpm
max torque (SAE): 215 1b ft, 29.7 kg m at 2,400 rpm
max engine rpm: 4,500
specific power: 39.3 hp/l
max speed: about 94 mph, 151 km/h
power-weight ratio: Coronet Custom 4-door Sedan and Coronet 4-door sedan 23.1 lb/hp. 10.5 kg/hp
fuel consumption: 19.5 m; Imp 16.2 us gal, 14.5 1 x .100 km.318 cu in V8 230 hp
Engine
cylinders: 8, Vee-slanted at 90°;
bore and stroke: x 3.31 in, 99.3 x 84.1 mm
engine cåpacity: 318 cu in, 3.212 cu cm
compression ratio: 8.6
crankshaft bearings: 5
valves: hydraulic tappets
cam-shafts: 1, at centre of Vee
carburation: 1 Carter BBD-4957S downdraught twin barrel carburettor
cooling system capacity: 26.6 imp pt, 31.9 US pt, 15.1 1
PERFORMANCE: 318 cu in V8 230 hp
max power (SAE): 230 hp at 4,400 rpm
max torque (SAE): 320 1b ft, 44.1 kg at 2.000 rpm
max engine rpm: 5,000
max speed: about 106 mph, 170 km/h
fuel consumption: 16 m/ imp gal, 13.3 m/US gal
383 cu in V8 275 hp
ENGINE
cylinders: 8, Vee-slanted at 90°
bore and stroke: 4.25 x 3.38 in, 107.9 x 85.8 mm
engine capacity: 383 cu in, 6.276 cu cm
compression ratio: 8.5
crankshaft bearings: 5
valves: hydraulic tappets
camshafts: at centre of Vee
carburation: 1 Carter BBD-4962S downdraught twin barrel carburettor
cooling system capacity: 24. imp pt. 29 US pt
battery: 59 Ah.TRANSMISSION
gearbox:Torqueflite automatic (standard)
PERFORMANCE: 383 cu in V8 275 hp
max power (SAE) : 275 hp at 4,400 rpm
max torque (SAE): 375 1b ft, 51.7 kg m at 2,800 rpm
max engine rpm: 4,700
max speed: about 110 mph, 177 km/h
fuel consumption: 15.4 m/ imp gal, 18.4 1 x 100 km.383 cu V8 300 hp
ENGINE
cylinders: 8, Vee-slanted at 90°;
bore and stroke 4.25 x 3.38 in, 107.9 x 85.8 mm
engine capacity: 383 cu i 6,276 cu cm
compression ratio: 8.5
crankshaft bearings: 5
valves: hydraulic tappets
carburation: 1 Holley R-4667 downdraught 4-barrel carburettor
cooling system capaci 24.1 imp pt, 29 US pt, 13.7 1.
CHASSIS front suspension: anti-roll bar.
PERFORMANCE: 383 cu V8 300 hp
max power max torque (SAE): 410 1b ft, 56.6 kg m 3,400 rpm
max engine rpm: 5,200
max speed: about 114 mph, 183 km./h
power weight ratio: Charger Super Bee 12.5 lb/hp, 5.7 kg/hp Coronet 4-door Sedan and Coronet Custom 4-door Se
12.3 lb/hp, 5.5 kg/hp —Coronet Brougham 4-door Sedan lb/hp, 5.6 kg/hp; speed in direct drive at 1,000 rpm:
mph, 35.7 km/h;
fuel consumption: 14.9 m/ imp gal, m/ US gal, 18.9 1 x 100 km.V8 370 hp
ENGINE
cylinders: 8, Vee-slanted at 90°
bore and 4.32 x 3.75 in, 109.7 x 95.2 mm
engine capacity: 440 7,210 cu cm
compression ratio: 9.5
crankshaft bearings: 5
valves: hydraulic tappet
carburation: 1 Carter AV downdraught 4-barrel carburettor
cooling system c 25.9 imp pt, 31.1 US Pt, 14.7 1.
ELECTRICAL EQUIPMENT battery: 70 Ah.
PERFORMANCE
max torque (SAE): 480 1b ft, 66.2 at 3,200 rpm
max engine rpm: 5,400
max speed: about 117 mph, 188 km/hV8 385 hp power team
ENGINE
cylinders: 8, Vee-slanted at 90°
bore and stroke: 4.32 x 3.75 in, 109.7 x 95.2 mm
engine capacity: 440 cu in, 7,210 cu cm
compression ratio: 10.3:
crankshaft bearings: 5
valves: hydraulic tappets; camshafts: 1, at centre of Vee
lubricating system capacity: 10 imp pt, 12 US pt, 5.7 1
carburation: 3 Holley R-4671A- 4672A-4669A downdraught twin barrel carburettors
cooling system capacity: 25.9 imp pt, 31.1 US pt, 14.7 1.
CHASSIS front suspension: anti-roll bar.
ELECTRICAL EQUIPMENT battery: 70 Ah.TRANSMISSION
gears: 4 + reverse; synchromesh gears: 1st, 3rd, 4th
axle ratio: 3.540
width of rims: 6"; tyres: G70 x 14.PERFORMANCE
max power (SAE) : 385 hp at 4,700 rpm; max torque (SAE): 490 1b ft, 67.6 kg at 3,200 rpm
max engine rpm: 5,600
specific power: 53.4 hp/l
max speed: about 121 mph, 194 km/h
power- weight ratio: Charger Super Bee 9.7 lb/hp, 4.3 kg/hp — Charger R/ T 9.8 lb/hp, 4.4 kg/hp; speed in direct drive at
1 ,000 rpm: 21.7 mph, 34.9 km/h
fuel consumption: 12.9 m/ imp gal, 10.7 m/ US gal, 21.9 1 x 100 km.V8 426 cu in 425 hp
ENGINE
cylinders: 8, Vee-slanted at 90°
bore and stroke: 4.25 x 3.75 in, 107.9 x 95.2 mm
engine capacity: 426 cu in, 6,981 cu cm
compression ratio: ,10.2
crankshaft bearings: 5
valves: hydraulic tappets
camshafts: 1, at centre of Vee
lubricating system capacity: 10 imp pt, 12 US pt, 5.7 1
carburation: 2 Carter AFB-4971S- 4969S downdraught 4-barrel carburettors
cooling system capacity: 26.6 imp pt, 31.9 US pt, 15.1 1.
TRANSMISSION gears: 4 + reverse
rims: 6"; tyres: G70 x ,14.PERFORMANCE
max power (SAE) : 425 hp at 5,000 rpm
max torque (SAE): 490 1b ft, 67.6 kg at 4,000 rpm
max engine rpm: 5,700
specific power: 60.9 hp/l
max speed: about 122 mph, 196 km/h;
power-weight ratio: Charger Super Bee 9.2 lb/hp, 4.1 kg/hp — Charger R/ T 9.3 lb/hp, 4.2 kg/hp; speed in direct drive
at 1,000 rpm: 21.7 mph, 34.9 km/h; fuel consumption: 12.6 m/ imp gal, 10.5 m/US gal, 22.5 1 x 100 km.-Note: More Specifications and Repair Manuals available for registered users-
