Off-Road
USA
2000s

Ford Excursion

Ford Excursion (2000-2006)

Manufacturer

Ford Motor Company

Model years

2000 to 2006

Assembly

U.S.A

Class

Off Road

Body style

4-door Full-size SUV

Layout

Front engine, rear-wheel drive / four-wheel drive

Engine

5.4 L Triton V8
6.8 L Triton V10
7.3 L V8 turbodiesel
6.0 L V8 turbodiesel

Transmission

4-speed automatic Ford 4R100
5-speed automatic Ford 5R110W

Wheelbase

137.1 in (3,482 mm)

Length

226.7 in (5,758 mm)

Width

2000–01: 80.0 in (2,032 mm)
2002–05: 79.9 in (2,029 mm)

Height

4WD: 80.2 in (2,037 mm)
2WD: 77.2 in (1,961 mm)

Curb weight

7,700 lb (3,500 kg) (Turbodiesel)
7,200 lb (3,300 kg) (Gasoline)

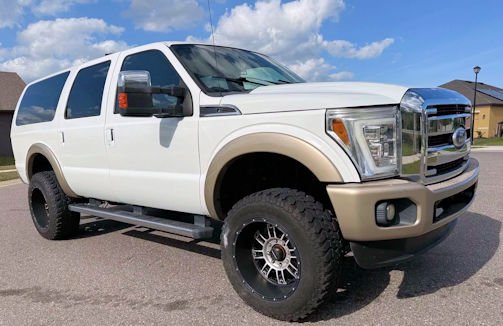

The Ford Excursion is a full-size SUV of the US automaker Ford, which was manufactured from early 2000 to mid-2006.

The excursion is one of the largest vehicles on American roads and the largest off-road vehicle in the world. It is based on the heavy-duty versions of the Ford F-Series and was available with rear-wheel or (even while driving) switchable four- wheel drive. The four-wheel version has rigid axles front and rear.

Ford Excursion Service Guide (2000-2006)

Despite its all-wheel drive technology, the big SUV does not match the off-road characteristics of its competitors Chevrolet Suburban and Hummer H1.

In the spring of 2004, the excursion was slightly revised, which mainly concerned front (more chrome on the grille) and rear (changed lights).

As a result of a lack of demand, Ford discontinued the series in May 2006, with sales down more than 60% in the previous year basic model as the XL XLT and Linited as the top tree version with power seats and improved audio system.

Ford Excursion specifications (2000-2006)

In the place of the excursion occurs since the model year 2007 by 40 cm extended derived from the Ford F-150 variant of the Ford Expedition with the additional name EL.

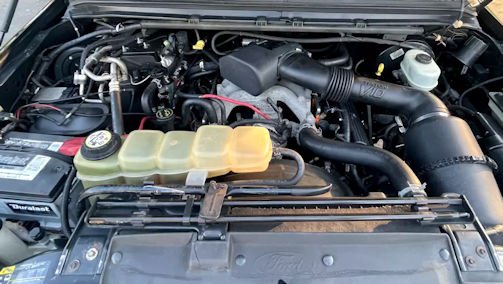

There were four engines to choose from: a 5.4-liter V8 with 255 hp, a 6.8-liter V10 with 314 hp, a 6-liter V8 diesel with 325 hp and a 7.3-liter V8 turbo diesel with 275 hp (from 2004 290 hp).

Ford Excursion Technical details  (2000-2006)

Related items
Ford Excursion | Vehicles launched in 2000 | American 2000s

Technical

Technical
  • Technical data

    • Length: 5.76 meters
    • Width: 2.03 meters
    • Height: 2.04 meters
    • Curb weight: 3.26 tons
    • Engine: 5.4-liter V8 with 255 hp, 6.8-liter V10 engine with 314 horsepower, 6-liter V8 turbo diesel with 325 hp or 7.3-liter V8 turbo diesel with 253 hp
    • Tensile load: up to 4.9 tons weight
    • Fuel consumption: 13 Liters of diesel or 20 litres of gas per 100 kilometres
    • Engine: 6.0L V8 OHV 32V Power Stroke Turbo Diesel
    • Drive: selectable four-wheel drive
    • Emission class: EURO 3
    • Transmission: Electronic 5-speed automatic transmission with overdrive
    • Power (PS / KW): 325/239 at 3,300 / min
    • Torque: 759 Nm at 2,000 rpm
    • Length: 5,758 mm
    • Width: 2,032 mm
    • Height: 2,042 mm
    • Wheelbase: 3,482 mm
    • Axle ratio: 3.73
    • Turning circle: 17.7 m
    • Tank capacity: 167 litres
    • Consumption according to the manufacturer (highway): 13.9 litres / 100 km
    • Consumption according to the manufacturer (city traffic): 15.8 litres / 100 km
    • Boot volume: 1,359 litres
    • Boot volume with folded seats: 2,851 litres
    • Boot volume max.: 4,145 litres
