Honda N22A N22B engine

The Honda N-type engine (Honda Ngata engine) is an in-line 4-cylinder Water-cooled diesel engine with Common rail Direct injection for medium-sized vehicles manufactured by Honda Motor Co Ltd.

History

The N series is Honda's first automotive diesel engine, for medium-sized vehicles developed in-house as a successor to the diesel engine that had been supplied by Isuzu Motors. It uses common rail direct injection, which Honda brands as i-CTDi (Intelligent Common-rail Turbocharged Direct injection). The most notable feature is the aluminium block, which uses proprietary technology in the manufacturing process to provide light weight and high rigidity. Roller chains drive two overhead camshafts. A variable-geometry turbocharger and intercooler are used.

The 2,200cc N22A i-CTDi (Intelligent Common rail Turbocharged Direct Injection) was introduced for the first time in the European specifications of the 7th generation Accord and 4th generation Accord Tourer (Accord Wagon in Japan) announced at the Frankfurt Motor Show on September 1, 2003. The third-generation CR-V European specification N22A-equipped vehicle announced on September 4, 2006 was equipped with a DPF.

On September 25, 2006, it was announced that the improved N22A engine had met the US emissions regulations "Tier II Bin 5." In 2007, the name I-DTEC was announced. The 2,200cc N22B i-DTEC was adopted for the first time in the European specifications of the 8th generation Accord and the 5th generation Accord Tourer released in 2008.

Later variants 1.6L i-DTEC was adopted for the first time in the Civic European specification released in 2013. N15A 1.5L i-DTEC was adopted in Amaze released in India in 2013. 160ps 1.6L i-DTEC was adopted for CR-V in 2015.

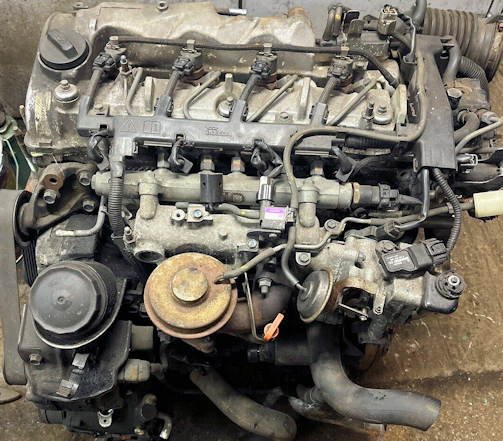

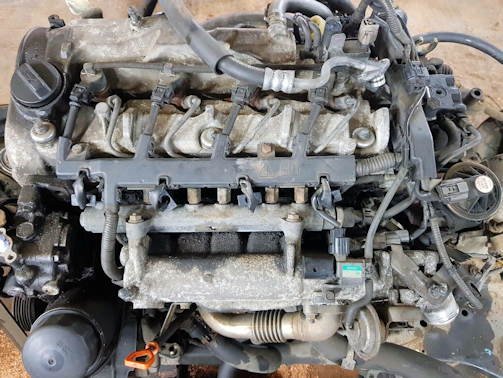

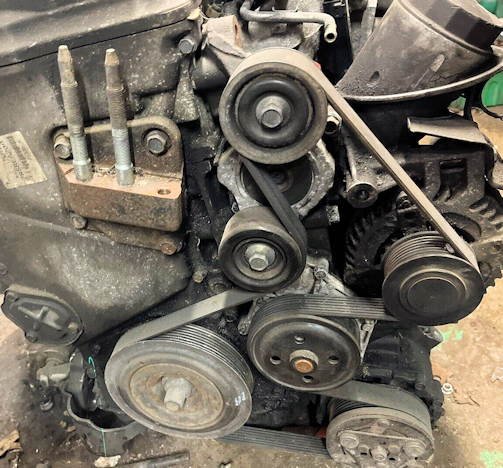

N22A i-CTDi

The biggest feature is that the cylinder block adopts an aluminium block manufactured with a technology called "semi-solid (semi-molten) casting”, which has succeeded in achieving both high rigidity and weight reduction. There are two intake and two exhaust valves, and the camshaft is driven by a timing chain. The fuel injection system is a high-pressure common rail type direct injection, and a variable nozzle turbocharger from Honeywell. with an intercooler installed. Some models are equipped with a DPF (Diesel Particulate Filter) in the exhaust system.

• Bore & Stroke: 85 mm × 97.1 mm (3.35 in × 3.82 in)
• Cylinder Layout: inline 4
• Displacement: 2.2 L (2,204 cc)
• Valve Configuration: 16-valve DOHC
• Type: i-CTDi
• Compression ratio: 16.7:1
• Max boost: 13.5 psi (0.93 bar)
• Max power: 140 PS (103 kW; 138 hp) at 4000 rpm
• Max torque: 340 N⋅m (251 lb⋅ft) at 2000 rpm
• Redline: 5000 rpm
• Valve mechanism: DOHC intake 2 exhaust 2
• Fuel injection system: Solenoid type common rail 1,600bar
• Reference specs (BE5 FR-V)

Used in

• FR-V : Japanese name Edix (BE5)
• CR-V (ED9/RE6) (2004-09)
• Civic (FK3/FN3) (2005-11)
• Accord (CN1) (2002–08)
• Accord Tourer (CN2) (2002–08)

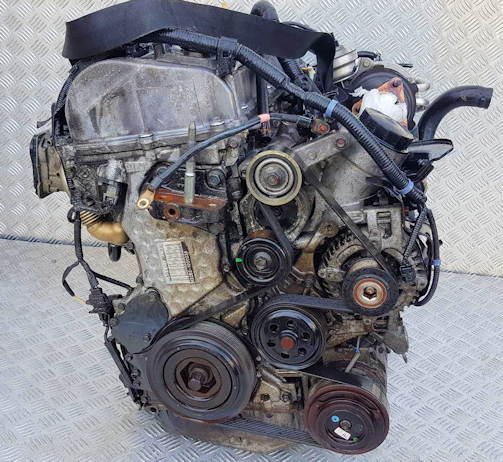

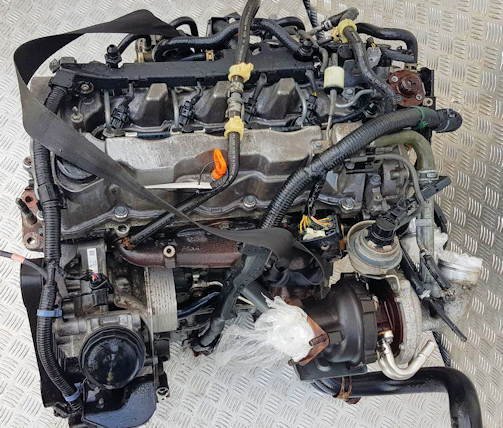

N22B i-DTEC

It was developed with the goal of meeting the US exhaust gas regulations "Tier II Bin 5," which requires NOx emission levels equivalent to those of gasoline vehicles with new type front intake/rear exhaust port configuration, and also conforms to Europe's "Euro 5." The exhaust port of the cylinder head has been changed to the front, the compression ratio and injection nozzle have been renewed, and the displacement has been reduced to 2.2 L or less by reducing the stroke. This is available with the five-speed automatic transmission only.

• Valve mechanism: DOHC intake 2 exhaust 2
• Displacement: 2.2 L (2,199 cc)
• Fuel injection: piezo element common rail 1,800 bar
• Bore & Stroke: 85 mm × 96.9 mm (3.35 in × 3.81 in)
• Cylinder Layout: inline 4
• Valve Configuration: 16-valve DOHC
• Type: i-DTEC
• Compression ratio: 16.3:1
• Max power: 150 PS (110 kW; 148 hp) at 4000 rpm
• Max torque: 350 N⋅m (258 lb⋅ft) at 2000 rpm

Used in

• Accord
• accord tourer

N22B2 i-DTEC

High output; specifications based on Accord. The 2007 to 2014 Honda Accord (CU) Type S has 196 PS (144 kW; 193 hp) and 415 N⋅m (306 lb⋅ft). with six-speed manual gearbox,

• Bore & Stroke: 85 mm × 96.9 mm (3.35 in × 3.81 in)
• Cylinder Layout: inline 4
• Displacement: 2.2 L (2,199 cc)
• Valve Configuration: 16-valve DOHC
• Type: i-DTEC
• Compression ratio: 16.3:1
• Max power: 180 PS (132 kW; 178 hp) at 4000 rpm or 196 PS (144 kW; 193 hp) at 4600 rpm on the 2007-2014 (Accord CU) Type S
• Max torque: 380 N⋅m (280 lb⋅ft) at 2000 rpm or 415 N⋅m (306 lb⋅ft) at 2400 rpm on the 2007-2014 (Accord CU) Type S
• Transmission: 6MT
• 0-100: 8.7 sec (7,9 Type S)
• Top speed: 240 km/h (150 mph)
