Honda City First Generation
![]() | |
Production period: | 1981-1986 |
Body versions: | sedan ,convertible |
Engines: | Gasoline : 1.2 liters (45-74 kW) |
Length: | 3350-3420 mm |
Width: | 1570-1625 mm |
Height: | 1470 mm |
Wheelbase : | 2220 mm |
Curb weight : | 635-745 kg |

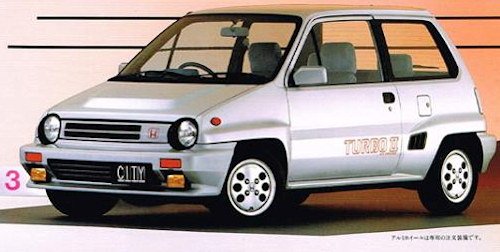

The Honda City was first produced in 1981 as a three-door hatchback model and was then offered exclusively in the Japanese market.
History
The Honda City is a small car of the Japanese vehicle manufacturer Honda . Originally the car was introduced in 1981 in the Japanese market, now it is offered in various countries. In Japan, the current version is now called Honda Fit Aria and is complemented by the Honda Fit .
This was followed by a convertible and two turbo versions of the city in the first generation. Only the normal hatchback version was offered from 1984 to 1986 in Europe as Honda Jazz .
At the Tokyo Motor Show in 1981 , the city was presented as a space miracle, because you could accommodate a mini motorcycle ( Motocompo ) in the trunk. He was then called "Tall Boy" among his creators. Due to the fuel-efficient consumption and the large amount of space, the Honda City was very quickly a great success and enjoyed great popularity among the Japanese population.

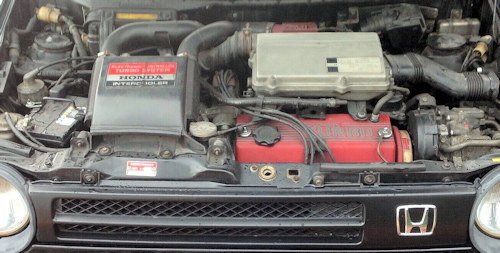

Technically, the engines were very advanced at the time. In the turbo version, a 1.2-liter engine with turbocharger was used, which brought it by means of PGM-FI (Programmed Fuel Injection) to 100 hp. An additional intercooler made it to 110 hp for the Turbo II.
PERFORMANCE: 61hp
max speed: 90 mph. 145 km/h
max power (JIS): 61 hp (45 kW at 5,000 rpm
max torque (JIS): 71 1b ft, 9.8 kg m 96 Nm at 3,000 rpm
max engine rpm: 6,000
Power 49.6 hP/I (36.6 kW/l)
power. weight ratio: PRO 1200 T 22.9 lb/hp (31.1 lb/kW), 10.4 kg/hp (14.1 kg/kW)
PERFORMANCE: 63 hp
power-weight ratio: 23.3 lb/hp (31.9 1b/ kW), 10.6 kg/hp (14.5 kg/kW)
consumption: 53.3 m/imp gal, 44.4 m/US gal, 5.3 1 x 100 km on Japanese emission test cycle.
max power (JIS): 63 hp (46 kW) at 5,000 rpm
max torque (JIS): 72 1b ft, 10 kg m (98 Nm) at 3,000 rpm
51.2 hp/l (37.4 kW/l).
PERFORMANCE: 67hp
power-weight ratio: 21.9 lb/hp (29.9 lb/kW), 9.9 kg/hp (13.6 kg/kW).
max power (JIS): 67 hp (49 kW) at 5,500 rpm
max torque (JIS): 72 1b ft, 10 kg m (98 Nm) at 3,500 rpm
max engine rpm: 6,500; 54.4 hp/l (39.8 kW/l).
PERFORMANCE: Turbocharged 100 hp
max power (JIS): 100 hp (74 kW) at 5,500 rpm
max torque (JIS): 109 1b ft, 15 kg m (147 Nm) at 3,000 rpm; 81.2 hp/l (60.1 kW/l);
max speed: 112 mph, 180 km/h
power-weight ratio: 15.2 lb/hp (20.6 lb/kW), 6.9 kg/hp (9.3 kg/kW)
consumption: 52.3 m/imp gal, 43.6 m/US galon Japanese emission test cycle.
PERFORMANCE: Turbocharged 110 hp
turbocharged; compression ratio: 7.6:1
max power (JIS): 110 hp (81 kW) at 5,500 rpm
max torque (JIS): 118 1b ft, 16.3 kg m (160 Nm) at 3,000 rpm; 89.4 hp/l (65.8 kW/l)
Honda programmed injection by digital computer
max speed: 112 mph, 180 km/h;
weight ratio: 14.7 lb/hp (20 lb/kW), 6.7 kg/hp (9.1 kg/kW);
consumption: 49.6 m/imp gal, 41.3 m/US gal, 5.7 Ix 100 km on Japanese emission test cycle.
variants
- R (basic version)
- R Manhattan (basic version with high roof, since 1983)
- E (Economy, four variants EI to E IV with lower fuel consumption)
- U (successor to the R, since 1985)
- Hypershift (model with computer-controlled transmission)
- Pro (Professional; Combination variant, since 1983)
- Turbo I (turbo version from 1982 to 1984)
- Turbo II (Turbo version from 1983 to 1986)
- Convertible (1984 to 1986)
Description
Technical
-
Honda City 1st gen Technical details and specifications (1981-1986)
ENGINE:
location front. transverse
4 stroke, CVCC-II charge stratification with new funnel shaped combustion chambers
(turbocharged) Honda programmed injection by digital computer; turbocharger. (option) computer controlled wastegate
4 cylinders, vertical, in line
75.1 cu in, 1,231 cc
bore and stroke: 2.60 x 3.54 in, 66 x 90 mm
compression ratio: (61 hp) 9:1 (63 hp) 10:1 (turbocharged) 7.5:1
light alloy block and head, wet liners
5 crankshaft bearings
valves: 3 per cylinder, overhead, Vee slanted, rockers
camshafts: 1, overhead, cogged belt
lubrication: rotary pump, full flow filter 7 imp pt. 8.5 US pt
1 Keihin-Honda downdraught 3-barrel CVCC carburettor
fuel feed: electric pump
emission control by CVCC.II charge stratification, oxidizing catalytic converter in exhaust
manifold and exhaust gas recirculation
water-cooled 8.8 imp pt. 10.6 US pt
(option) air-conditioning.TRANSMISSION
driving wheels: front
clutch: single dry plate (diaphragm)
gearbox: mechanical; gears: 4
fully synchronized
ratios: 1st 3.181, 2nd 1.823, 3rd 1.181, 4th 0.846. rev 2.916
(option) 5 gears: fully synchronized
5 speed ratios 1st 2.916, 2nd 1.764, 3rd 1.181, 4th 0.846, 5th 0.714, rev 2.916.
(turbocharged) 1st 2.916, 2nd 1.764, 3rd 1.181, 4th 0.846, 5th 0.655, rev 2.916
(option) Hondamatic semi-automatic transmission with 3 ratios
semi-automatic ratios (1st 2.047, 2nd 1.285, 3rd 0.911),
gear lever location: central
final drive: helical spur gears
axle ratio: 3.875 (options) 3.105 4.428 (turbocharged) 4.066
CHASSIS
type integral
front longitudinal subframe; front suspension: independent, by McPherson, coil springs/telescopic damper struts, lower transverse arms, trailing diagonal links
rear: independent, transverse arms, trailing links, coil springs, telescopic dampers.
carrying capacity: 706 1b, 320 kg
width of rims: 4" (turbocharged) 4.5"
tyres: 145 SR x 12.(options) 165/70 SR x 12. (turbocharged) 165/70 HR x 12.and 185/60 HR x 13.
(turbocharged) front and rear suspension: anti-roll bar.STEERING
rack-and-pinion
turns lock to lock: 3.60. (turbocharged) lock to lock: 3.40.
turning circle: 32.1 ft. 9.8 mBRAKES
front disc (diameter 8.39 in, 21.3 cm), rear drum, dual circuit. (option) servo.ELECTRICAL EQUIPMENT
12 V
30 Ah battery
45 A alternator
Mitsubishi distributorDIMENSIONS AND WEIGHT
wheel base: 87.40 in, 222 cm
track: 53.94 in, 137 cm
length: 133.07 in, 338 cm
width: 61.81 in, 157 cm
height: 57.87 in, 147 cm
weight: PRO 1200 T 1,400 1b, 635 kg - PRO 1200 F 1,433 1b, 650 kg;
weight distribution: 64% front, 36% rear
fuel tank: 9 imp gal, 10.8 US gal, 41 1.Factory codes
- Type code:
AA (R, E, U & Turbo I & II)
FA (Convertible)
VF (Pro)
- Engine Code:
ER1 (R, E)
ER2 (convertible)
ER4 (U)
ER-T (Turbo I & II)
Technical data
Honda City 1981-1986
versions
City R, E, U (AA)
City Pro (VF)
City Convertible (FA)
City Turbo (AA)
engine type
4-cylinder inline engine, 12 valves, SOHC CVCC
ditto, + PGM-FI, turbocharger
capacity
1.2 liters (1231 cm³)
power
46 kW (63 hp) at 5000 min -1
45 kW (61 hp) at 5000 min -1
49 kW (67 hp) at 5500 min -1
74 kW (100 hp) at 5500 min -1
Max. torque
100 Nm at 3000 min -1
98 Nm at 3000 min -1
100 Nm at 3500 min -1
147/160 Nm at 3000 min -1
top speed
141 km / h
135 km / h
150 km / h
179 km / h
Acceleration (0-100 km / h)
12.9 s
13.1 s
13.7 s
10.2 s / 10.0 s
Empty weight in kg
655-710
(depending on the equipment)635-660
(depending on the equipment)800-810
(depending on the equipment)735-745
(depending on the equipment)Tank capacity in l
41
Trunk volume in l
205
Length / width / height in mm
3380/1570/1470
3420/1625/1470
