Motor Cars
Japan
1970s

Honda 145

Honda 145 car history

Make :

Honda

Production period:

1972 to 1974

Class :

motor car

Type :

saloon/coupe

Engines:

1433 cc

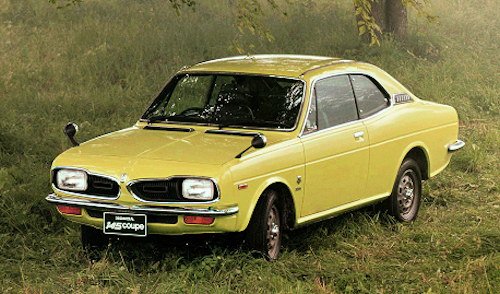

The Honda 145 series  is a small car of the car manufacturer Honda from the 1970s.

History

The successors of the technically interesting, but probably less successful because of the air-cooled engine type 1300 were built under the name 145 from 1972 to 1974. The 145 appeared to the Japanese but probably as a swan song to a bygone era, because the more modern Civic already conquered the market. Therefore, only 9,736 units (sedans and coupes) were built. Variant of: 1300.  Models and variants: four-door saloon; two-door coupé.

The new, liquid-cooled 1.45-liter engine, which at first glance looks like a Civic engine, was installed in the virtually unchanged body of its predecessor 1300 . However, the received 145 Coupe rectangular headlights as the sedan of the original version of the model 77 . Even the suspension has not changed.

PERFORMANCE: 1.433 cc

  • max power (DIN): 80 hp at 5.500 rpm:
  • max torque (DIN): 87 1b ft. 12 kg m at 3.500 rpm
  • max engine rpm: 6.500; 55.8 hp/l
  • max speeds: (I) 29 mph, 47 km/h; (II) 48 mph. 78 km/h; (III) 73 mph. t 18 km/h; (IV) 99 mph, 160 km/h
  • power-weight ratio: 23.3 lb/hp. 10.6 kg/hp

It is noteworthy that the model FI of the 145 Coupé was Honda's first production vehicle with mechanically controlled intake manifold injection for performance enhancement .

PERFORMANCE: Fl Coupé

  • max power (DIN): 90 hp at 6,000 rpm
  • max torque (DIN): 91 1b ft, 12.5 kg m at 4,000 rpm
  • max engine rpm: 6,800; 62.8 hp/l
  • Honda fuel injection system.
  • max speeds: (I) 30 mph 48 km/h; (II) 52 mph, 84 km/h; (III) 78 mph, 125 km/h; (IV) 106 mph, 170 km/h
  • power-weight ratio: 20.8 lb/hp, 9.4 kg/hp.

In 1973, a year before production ceased, Honda launched the 145 Coupé with an automatic transmission. But even this measure did not revive the paragraph.

Related items
Japanese Vehicles 1970s | Vehicles launched in 1972

Technical

Technical
  • Honda 145 Technical details and specifications (1972-1974)


    ENGINE: 1.433 cc
    Engine location:front, transverse
    4 stroke: 4 cylinders, in line
    Engine capacity: 87.4 cu in, 1.433 cc
    Bore and stroke: 2.83 x 3.46 in. 72 x 88 mm
    compression ratio: 8.6:1
    cast iron cylinder block
    light alloy head
    5 crankshaft bearings
    valves: overhead, rockers
    camshafts: 1,overhead
    lubrication: rotary pump. full flow filter 5.3 imp pt, 6.3 US pt
    1 Hitachi downdraught twin barrel carburettor
    fuel feed: mechanical pump
    water-cooled

    TRANSMISSION
    driving wheels: front
    clutch: single dry plate (diaphragm)
    gearbox: mechanical: gears: 4
    fully synchronized
    ratios: I 3.000. II 1.789, III 1.182. IV 0.846. rev 2.916
    gear lever location: central
    final drive: helical spur gears
    axle ratio: 4.733

    CHASSIS
    integral. front auxiliary frame
    front suspension: independent, by McPherson, coll springs/telescopic damper struts, lower wishbones (trailing links), anti-roll bar
    rear suspension: Independent. swinging semi-axles (cross beam system), semi-elliptic leafsprlngs. telescopic dampers.

    STEERING
    rack-and-pinion
    turns lock to lock: 3.30.
    turning circle (between walls): 31.5 ft, 9.6 m

    BRAKES
    front disc. rear drum, rear compensator, servo
    swept area: front 16.1 sq in, 104 sq cm, rear 40 sq in, 258 sq cm
    total 56.1 sq In, 362 sq cm.

    ELECTRICAL EQUIPMENT
    12 V
    35 Ah battery
    700 W alternator
    Hitachi distributor

    DIMENSIONS AND WEIGHT
    wheel base: 88.58 in, 2,250 mm
    tracks: 49.41 in, 1,255 mm front, 48.23 in, 1,225 mm rear
    length: 157.28 in, 3,995 mm
    width: 57.68 in, 1,465 mm
    height: 53.54 in, 1,360 mm
    ground clearance: 6.30 in, 160 mm
    dry weight: 1,863 1b, 845 kg



    Type

    construction

    model

    type code

    capacity

    kW ( PS )

    construction time

    145

    Saloon

    Standard, DeLuxe, Custom

    642

    1433 cm 3

    59 (80)

    1972-1974

    145

    Coupe

    SL, GT, GL

    643

    1433 cm 3

    59 (80)

    1973-1974

    145

    Coupe

    FI (fuel injection)

    643

    1433 cm 3

    66 (90)

    1973-1974

     © Motor car History

Service

Service
  • Honda 145 Service Guide (1972-1974)

    gearbox and final drive oil: 4.4 imp pt. 5.3 US pt. 2.5 1, SAE 10W-30
    tyre pressure: front 23 psi, 1.6 atm, rear 23 psi, 1.6 atm
    fuel tank: 9.9 imp gal, 11.9 US gal
    width of rims: 4"
    tyres: 6.20 S x 13
    ENGINE: 1.433 cc
    fuel: 85-90 oct petrol
    engine sump oil: 5.3 imp pt, 6.3 US pt, 3 1, SAE 10W-30, change every 3,100 miles, 5,000 km
    tappet clearances: inlet 0.005 in. 0.12 mm, exhaust 0.005 in, 0.12 mm
    valve timing: 10° 30° 40° 10° Fl Coupé valve timing: 5° 30° 40° 5°.
    coolant capacity 7 Imp pt. 8.5 US pt. 4 1.
