Kaiser Jeepster C-101

Kaiser Jeepster C-101 Technical details (1966-1971)

Make

 Kaiser

Class

 Off road

Production

 1966 to 1971

Body

station wagon,convertible, pickup,roadster.

Engine

 2.2, 3.7 litres

Transmission

 mechanical; gears: 3 with high and low ratios

Wheelbase

 81 in, 2,057 mm

Length

 138.15 in, 3,509 mm

Width

 71.75 in, 1,882 mm

Height

 69.50 in, 1,765 mm

Dry weight

 2,835 1b, 1,286 kg



 The Kaiser Jeepster Commando is an automobile which was first produced by Kaiser Jeep in 1966.

History

The Jeepster was a Jeep brand car. The first Jeepster was offered in 1948 by Willys-Overland, in 1966, the name reappeared in a new model, the Jeepster Commando C-101 by Kaiser Jeep. Again, the sales could not meet the expectations and the new owner AMC in 1973 to stop production.

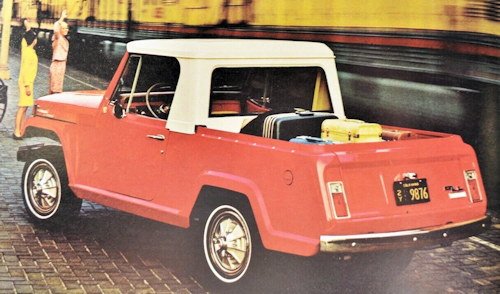

The Jeepster lived again in 1966 in the form of the Jeepster Commando C-101. For the Jeepster Commando a number of body styles were available: a station wagon, a convertible, a pickup and a roadster. A particularly noteworthy offer was the deluxe combination with rear sliding windows and full equipment. In some cases, the vehicles also had a two-colour finish.Inside the 'Jeepster Commando wagon, there are foam-molded front bucket and rear bench seats, single 4-wheel drive shift lever and a choice of trim packages that include deluxe seats, door-to-door Carpets, slide-open rear quarter windows and many other luxury appointments. Sporty console shift is also available with either manual Or automatic transmissions. And to power the 160 horsepower Dauntless V-6 engine option Or thestandard Hurricane 4-cylinder engine.
Off-center rear springs that are nearly five feet long and a front stabilizer bar provide smooth riding, easy-handling features.

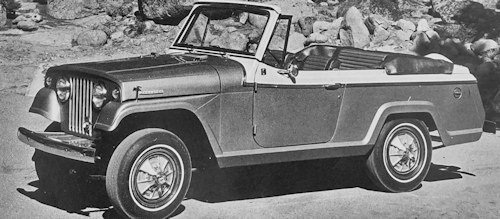

 The Hurst Jeepster with modifications by Hurst Performance had a special Hurst Dual-Gate shifter with the optional automatic transmission a special paint in Champagne White with red and blue stripes, and speedometer on the hood fitted with Goodyear G70 x 15 tyres. The convertible was available in three versions: Revival Jeepster, Commando Cabriolet and an open roadster completely without body. The revival Jeepster was the showpiece in the program: he had a particularly luxurious interior, an electric hood and a rear mounted, upright spare wheel with cover ("Continental Kit"). The Commando Cabriolet had the same body, but only the basic equipment.

Engines:

  • 1966-1971: 2.2 litres - R4 - Willys Hurricane engine F134, 75 bhp (55 kW) and 154 Nm
  • 1966-1971: 3.7 litres - V6 - Kaiser Dauntless engine, 160 bhp (119 kW) and 318 Nm

 The counter-steering four-cylinder in-line engine Willys Hurricane - a direct descendant of the former Go-Devil engines - and finally a four-wheel drive was used. This engine developed 75 bhp (55 kW) at 4,000 rpm. and a torque of 154 Nm at 2,000 / min. On request, there was the 160 bhp (119 kW) Kaiser-dauntless engine. The V6 developed a torque of 318 Nm.

  • PERFORMANCE:2.2L
    Engine Capacity 134.20 cu in, 2,199.13 cu cm
    Fuel Consumption 25.7 mlimp gal, 21.4 m/US gal, 11 1 x 100 km
    Max Speed 78 mph, 125.6 km/h
    Max power (SAE): 75 hp at 4,000 rpm
    Max torque (SAE): 114 1b ft, 15.7 kg m at 2,000 rpm
    Max engine rpm: 4,600
    Specific power: 34.1 hp/l
    Power-weight ratio: 37.7 lb/hp, 17.1 kg/hp
    Speed in direct drive at 1,000 rpm: 19.3 mph, 31.1 km/h.
  • PERFORMANCE:3.7L
    Max power (SAE) 160 hp at 4,200 rpm
    Max torque (SAE) 235 1b ft, 32.4 kg m at 2,400 rpm
    Max engine rpm 4,500
    Specific power 43.4 hp
    Fuel consumption 20.2 m/imp gal, 16.8 m/US gal, 14 1 x 100 km

From 1966 to 1971, 57,350 Jeepster Commando C-101 were sold.

Kaiser Jeepster C-101 specifications (1966-1971)

Related items
Vehicles launched in 1966 | American 1970s | American 1960s | Jeep | off road

Technical

Technical
  • Kaiser Jeepster C-101 Technical details and specifications (1966-1971)


    ENGINE 2.2L
    location front, 4 stroke
    cylinders: 4, vertical, in line
    bore and stroke: 3.12 x 4.37 in, 79.2 x 111 mm
    engine capacity: 134.20 cu in, 2,199.13 cu cm
    compression ratio: 7.4
    cylinder block: cast iron
    cylinder head: cast iron
    crankshaft bearings: 3
    valves: 2 per cylinder, overhead, in line, push-rods and rockers
    camshafts: 1, side
    lubrication: rotary pump, filter on by-pass
    lubricating system capacity: 8.27 imp pt, 10 US pt, 4.7 l
    carburation: 1 Carter YF 938 SD downdraught single barrel carburettor. 3.7L Dual-barrel
    fuel feed: mechanical pump
    cooling system: water
    ENGINE 3.7L
    engine 6 cylinders Vee-slanted at 90°
    capacity 225 cu in, 3,687.07 cu cm
    bore and stroke 3.75 x 3.40 in, 95.2 x 86.4 mm,
    9 compression ratio
    hydraulic tappets

    TRANSMISSION
    driving wheels: front (automatically engaged with transfer box low ratio) and rear
    clutch: single dry plate
    gearbox: mechanical; gears: 3 with high and low ratios + reverse
    synchromesh gears: 2nd and 3rd
    gearbox ratios: I 3.339 (low 5.80), II 1.551 (low 4.01), III 1 (low 2.46), rev 3.798 (low 6.26)
    3.7L 3-speed mechanical gearbox (I 2.790, II 1.680, III 1, rev 3.790),
    gear and low ratio levers: steering column
    final drive: hypoid bevel
    axle ratio: 4.270. 3.7L 3.730 axle

    CHASSIS
    type ladder frame, lateral members
    front suspension: rigid axle, semi-elliptic leafsprings, telescopic dampers
    rear suspension: rigid axle, semi-elliptic leafsprings, telescopic dampers.

    STEERING
    cam and peg
    turns of steering wheel lock to lock: 2.58.
    turning circle (between walls): 37 ft, 11.3 m

    BRAKES
    drum, 2 front leading shoes
    area rubbed by linings: total 255.30 sq in, 1,646.68 sq cm.

    ELECTRICAL EQUIPMENT
    voltage: 12 V
    battery: 50 Ah
    generator type: alternator, 35 Ah
    headlamps: 2, iodine.

    DIMENSIONS AND WEIGHT
    wheel base: 81 in, 2,057 mm
    front track: 48.45 in, 1,231 mm
    rear track: 48.45 in, 1,231 mm
    overall length: 138.15 in, 3,509 mm
    overall width: 71.75 in, 1,882 mm
    overall height: 69.50 in, 1,765 mm
    ground clearance: 8 in, 203 mm
    dry weight: 2,835 1b, 1,286 kg

    © Motor car History

Service

Service
  • Kaiser Jeepster C-101 maintenance and Service Guide (1966-1971)

    Fuel type: 90 oct petrol
    Engine oil change: 6.69 imp pt, 8 US pt, 3.8 1, SAE 20, change every 3,000 miles, 4,800 km
    Gearbox oil: 2.46 imp pt, 3 IJS pt, 1.4 1, SAE 90, change every 12,000 miles, 19,300 km
    Final drive oil: 2.11 imp pt, 2.50 US pt, 1.2 1, SAE 90, change every 6,000 miles, 9,700 km
    Cooling system capacity: 20.06 imp pt, 24 US pt
    Greasing: every 1,000-6,000 miles, 1,600 - 9,700 km, 33 points
    Tappet clearances: inlet 0.018 in, 0.46 mm, exhaust 0.016 in, 0.41 mm
    Valve timing: inlet opens 9° before tdc and closes 50° after bdc, exhaust opens 47° before bdc and closes 12° after tdc
    Valve timing 3.7L: 24° 81° 72° 43°
    Normal tyre pressure: front 26 psi, 1.8 atm, rear 28 psi, 2 atm.
    Width of rims: 5.5"
    Tyres: 7.35 x 15
    Fuel tank capacity: 8.8 imp gal, 10.5 US gal
    Carrying capacity: 1,058 1b, 480 kg
