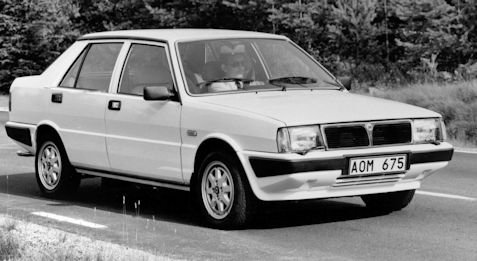

Lancia Prisma
 |
|
|
Production period: |
1982 to 1989 |
|
Class: |
Motor Car |
|
Body versions: |
compact |
|
Engines: |
|
|
Length: |
4180 mm |
|
Width: |
1620 mm |
|
Height: |
1385 mm |
|
Wheelbase: |
2475 mm |
|
Curb weight: |
950-1050 kg |
|
successor |
Lancia Dedra |
The Lancia Prisma is a car mode from the 1980's by the Italian automaker Lancia and the notchback version of the Delta starting from November 1982. As with the Delta used Lancia the Fiat Ritmo, but with the Lancia engineered Camuffo rear axle.
During its construction period, five gasoline engines with outputs between 55 kW (75 hp) and 85 kW (115 hp) and two diesel engines with 48 kW (65 hp) and 59 kW (80 hp) were available.
In May 1986, the prism received a discreet facelift along with the Delta. The wheel discs, interior and radiator grille were adapted to the then design line. The 1.6-liter gasoline engine was now also offered with electronic injection and thus made 79 kW (108 hp). The new 2.0 ie had all-wheel drive.
In April 1989, he was replaced by the Dedra, which was from mid-1994 as a station wagon.
Engines
All engines have two valves per cylinder, which are operated by bucket tappets of toothed belt driven, overhead camshafts. For the two smaller gasoline engines and the diesels, the valves are parallel, while the other engines are arranged in a V-shape.
Options
light alloy wheels: electric windows: tinted glass; sunroof; central door locking: metallic spray; trip computer; folding rear seats; check control.
Related
Technical
-
Dimensions:
Wheelbase 247.5cm
track 140/140cm
clearance 14.5cm
Length 418cm
width 162cm, height 138.5cm.
Load space 15.9—26.1cu ft (450—740dm3)
fuel tank capacity 55/57L
tyres 165/70SR 13 optional 165/65 SR 14
wheel rims 5J.Body/Weight:
4-door Saloon/Sedan,
5-seater
kerb weight (DIN) 950k gross
vehicle weight 1400kg.Chassis:
Integral body
front independent suspension with McPherson lower control arm
rear independent suspension with twin control arms, trailing arms, tension struts
McPherson struts, telescopic damper, front and rear antiroll barSteering
rack and pinion
turning circle 11.6mEngine data (1300)
(DIN): 4—cylinder in—line (86.4 x 55.5mm)
1302cm3
compression 9.5:1
leaded premium grade.
Engine construction: Designated 831 A.O.
Transverse front engine, inclined
1 overhead camshaft (toothed belt)
light—alloy cylinder head;
5 bearing crankshaft
oil capacity 4.5L (4.4US qt)
1 Weber horizontal 2V cab
12V 40Ah Battery
55A alternator
cooling system capacity approx 6L (5.7US qt)
Transmission (1300)
(to front wheels)
5-speed manual
final drive ratio 3.765.
Gear ratios: 1st 4.091; 2nd 2235; 3rd 1.469; 4th 1.043; 5th 0.863; R 3.714.Brakes (1300)
Servo/power assisted brakes
front discs
rear drums
disc diameter 22•7cm
mechanical handbrake to rear wheel
Enginesengine
Displacement
cm³design type
Power
kW; PS 1 / minTorque
Nm 1 / minconstruction time
1300
1301
SOHC
55; 75 at 5800
105 at 3500
11 / 1982-04 / 1989
1500
1498
SOHC
62; 85 at 5800
123 at 3500
11 / 1982-04 / 1989
1600
1585
DOHC
77; 105 at 5900
127 at 4000
11 / 1982-04 / 1986
1600
1585
DOHC
74; 100 at 5900
127 at 4000
05 / 1986-04 / 1989
1600 ie
1585
DOHC
79; 108 at 6100
136 at 3300
05 / 1986-04 / 1989
2000 ie 4WD
1995
DOHC
85; 115 at 5400
163 at 3250
05 / 1986-04 / 1989
1900 d
1929
SOHC
48; 65 at 4600
119 at 2000
11 / 1982-04 / 1989
1900 TD
1929
SOHC
59; 80 at 4200
172 at 2400
05 / 1985-04 / 1989
Note:
All engines and full specifications available for registered users© Motor-car.net
Service
-
1300
fuel: 97 oct petrol
oil: engine 7.6 imp pt, 9.1 US pt. 4.3 1. SAE IOW-50, change every 6,200 miles, 10,000 km
gearbox and final drive 5.4 imp pt. 6.5 US pt. 3.1 1, SAE 90. change every 18,600 miles, 30,000 km
greasing: none
spark plug: Champion RN 7 Y or Mareiii CW 78 LPRi
valve timing: 11° 41° 52° 2°
tyre pressure, front 28 psi. 2 atm, rear 28 psi. 2 atmNote: Full Specifications and Service Repair Manuals available for registered users
