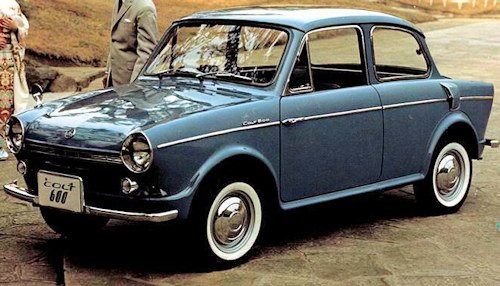

Mitsubishi Colt 600

Mitsubishi Colt 600

Manufacturer

Shin Mitsubishi Heavy-Industries, Ltd

Production

1962 to 1965

Body style

2-door sedan

Layout

Rear-engine, rear-wheel drive

Engine

594 cc NE35B, air-cooled OHV Straight-twin engine

Transmission

3-speed manual

Wheelbase

2,065 mm (81.3 in)

Length

3,385 mm (133.3 in)

Width

1,410 mm (56 in)

Height

1,370 mm (54 in)

Curb weight

555 kg (1,224 lb)



Mitsubishi Colt are a series of passenger cars of the Japanese automaker Mitsubishi Motors

History

In autumn 1962, the Colt 600 came as a successor to the Mitsubishi 500 on the market.A five-seat, two-door passenger sedan produced by Shin Mitsubishi Heavy-Industries, Ltd - The 600 was the first Mitsubishi to bear the "Colt" name With the same technology with two-cylinder rear engine and the same wheelbase, the body was revised and enlarged. A few months later, a lower class notchback sedan was also offered. The designer Giovanni Michelotti drew the Colt 1000 with relatively large windows. Soon, a three-door van ( Mitsubishi Colt Van ) came on the market. In 1964, Mitsubishi sold nearly 30,000 van vans.The price new was 429,000 yen.

1965 Mitsubishi finished with 46,000 copies sold the fourth place among all Japanese manufacturers. In the same year the successor model of the type 600, the Colt 800 F appeared , and only a month before its market introduction the larger Colt 1500 . Thanks to the successful Colt model family, production reached a new high in 1968 with 130,253 cars.

Mitsubishi debuted the new Colt 600 as the successor to the first postwar vehicle 500 in the fall of 1962. The quick car with a top speed of 90 km/h was similar to the Goggomobil and the Fiat 500. The first Colt had a displacement of 594 cc and a power output of 18 kW / 25 hp.

PERFORMANCE: Mitsubishi Colt 600

ENGINE CAPACITY: 36.33 cu in, 594 cu cm;
FUEL CONSUMPTION: 40.3 m/imp gal, 33.6 m US gal, 7 Ix 100 km;
MAX SPEED: 62.7 mph, 101 km/h;
max power (SAE): 25 hp at 4800 rpm
max torque (SAE): 30 1b ft, 4.2 kgm at 3400 rpm
max number of engine rpm: 5600
specific power: 42.1 hp/l
max speed in 1st gear: 19.9 mph, 32 km/h
max speed in 2nd gear: 37.9 mph, 61 km/h
max speed in 3rd gear: 62.7 mph, 101 km/h
power-weight ratio: 48.8 lb/hp, 22.12 kg/hp
useful load: 882 1b, 400 kg
acceleration: standing 1/4 mile 26.3 sec
speed in top at 1000 rpm: 11.2 mph, 18.1 km/h.

The body was designed to be edgier and more modern than its predecessor. The 9th Tokyo Motor Show included a convertible 2 seat variant, which was the company's first "show car," but it was never sold to the general public. In the 1963 Malaysian Grand Prix, Mitsubishi entered two Colt 600 touring cars, which finished second and third in the under 600 cc class, respectively. In 1965, production was discontinued in favour of the more current Colt 800 fastback.

Related items
Mitsubishi Colt | Japanese Vehicles 1960s | Vehicles launched in 1962

Technical

Technical
  • Mitsubishi Colt 600 De Luxe Technical details and specifications

    ENGINE:
    ENGINE CAPACITY: 36.33 cu in, 594 cu cm
    rear, transverse, 4 stroke
    cylinders: 2, transverse, in line
    bore and stroke: 2.83 x 2.87 in, 71.9 x 72.9 mm
    engine capacity: 36.33 cu in, 594 cu cm
    compression ratio: 7.2 : 1
    cylinder block: light alloy
    cylinder head: light alloy
    crankshaft bearings: 2
    valves: 2 per cylinder, vertical, overhead, in line, with push rods and rockers
    camshaft: in crankcase;lubrication: gear pump, filter on by-pass
    lubricating system capacity: 2.4 imp qt, 2.9 US qt, 2.7 1;
    carburation: 1 Mikuni downdraft single barrel carburettor
    fuel feed: mechanical pump
    cooling system: air-cooled.

    TRANSMISSION:
    driving wheels: rear
    clutch: single dry plate
    gear box mechanical; gears: 3 + reverse
    synchromesh gears: II, III
    gear box ratios: (I) 3.417, (II) 1.789, (III) 1.080, (Rev) 3.417
    gear lever: steering column
    final drive: spiral; ratio: 5.079 : 1.

    CHASSIS:
    integral: front suspension: independent, trailing arm, coil springs Dubonnet type, telescopic dampers
    rear suspension: independent. swinging trailing arms, coil springs, telescopic dampers.

    STEERING:
    rack-and-pinion
    turns of steering wheel lock to lock: 2.8.

    BRAKES:
    drum; braking surface: front 33.40 sq in, 215.43 sq cm, rear 33.40 sq in.
    215.43 sq cm, total 66.80 sq in, 430.86 sq cm.

    ELECTRICAL EQUIPMENT:
    voltage: 12 V
    battery: 28 Ah
    dynamo: 180 W
    ignition distributor: Mitsubishi Electric TA-2AL

    DIMENSIONS AND WEIGHT:
    wheel base: 81.30 in, 20.65 mm
    front track: 46.50 in. 1181 mm
    rear track: 46.10 in, 1171 mm
    overall length: 132.99 in, 3378 mm
    overall width: 55.51 in, 1410 mm
    overall height: 53.90 in, 1369 mm
    ground clearance: 8.31 in, 211 mm
    dry weight: 1219 1b, 553 kg
    distribution of weight: 38.80/0 front axle, 61.2 0/0 rear axle
    turning radius: (between walls): 14 ft, 4.3 m

    © Motor car History



Service

Service
  • Mitsubishi Colt 600  Service instructions


    fuel: petrol, 80-85 Oct
    engine sump oil: 1.9 imp qt, 2.3 US qt, 2.2 1, SAE 20 (winter) 30 (summer), change every 1600 miles, 2500 km
    gearbox oil: 1.32 imp qt, 1.59 US qt, 1.5 1, SAE 80-90, change every 3100 miles, 5000 km
    steering box oil: change every 3100 miles, 5000 km
    greasing: every 3100 miles, 5000 km, 16 points
    tappet clearances: inlet 0.020 in, 0.5 mm; exhaust 0.020 in, 0.5 mm
    valve timing: (inlet) opens 15 ° before tdc and closes 55 ° after bdc, (exhaust) opens 50 ° before bdc and closes 20 ° after tdc;
    width of rims: 4"
    tyres: 5.20 – 12
    tyre pressure (medium load): front 17 psi, 1.2 atm, rear 20 psi, 1.4 atm.
    fuel tank capacity: 4.83 imp gal, 5.81 US gal, 22 1

    © Motor car History
