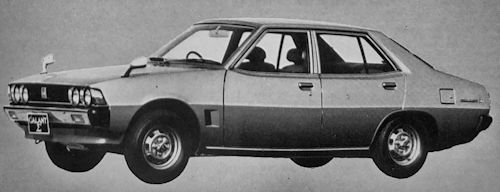

Mitsubishi Galant Sigma Third generation (A120)

Mitsubishi Galant Sigma Third generation (A120)

Also called

  • Mitsubishi Galant, Sigma, Express
  • Chrysler Sigma
  • Colt Galant ,Sigma
  • Dodge Colt

Production

1976 to 1982

Class

Motor Car

Body style

  • 4-door sedan
  • 5-door station wagon

Layout

Front-engine, rear-wheel-drive

Engine

  • 1597 cc 4G32/G32B I4 (A121/131)
  • 1850 cc 4G51 I4 (A122)
  • 1995 cc 4G52/G52B I4 (A123/133)
  • 1995 cc 4G52 turbo I4 (Australia)
  • 2555 cc 4G54 I4 (A125)

Wheelbase

2,515 mm (99.0 in)

Length

4,300–4,450 mm (169.3–175.2 in) (sedan)
4,340–4,490 mm (170.9–176.8 in) (wagon)

Width

1,655 mm (65.2 in)

Height

1,360 mm (53.5 in) (sedan)
1,385 mm (54.5 in) (wagon)

Curb weight

970–1,270 kg



Introduced in mid-1976 and named in Japan Galant Σ (Sigma) third Galant was also offered in Europe in February 1977 under the name Mitsubishi Galant , while the station wagon was sold in North America as Dodge Colt. In Australia, where the model was assembled in a Chrysler plant, it ran under the name Chrysler Sigma.

This generation existed only as a four-door sedan and five-door station wagon. As a coupe variant of Mitsubishi Sapporo introduced in the fall of 1975 , which was called in Japan Galant (lambda) and in Australia Chrysler Scorpion.

The main technical feature of this series were the MCA jet engines with "Jet Valve", an additional intake valve per cylinder, which made it possible to reduce exhaust emissions without having to thoroughly rework the cylinder head, as well as the patented balance shafts to increase smoothness.

PERFORMANCE

  • 1,597 cc
    max power (JIS): 86 hp at 5,000 rpm
    max torque (JIS): 98 1b ft, 13.5 kg m at 3,000 rpm
    max engine rpm: 5,700; 53.8 hp/l
  • 1,855 cc
    max power (JIS): 97 hp at 5,700 rpm
    max torque (JIS): 107 1b ft, 14.7 kg m at 3,800 rpm
    max engine rpm: 6,200; 52.3 hp/l
  • 1,995 cc
    max power (JIS): 105 hp at 5,400 rpm
    max torque (JIS): 119 1b ft, 16.5 kg m at 3,500 rpm
Related items
Vehicles launched in 1976 | Mitsubishi Galant | Japanese Vehicles 1970s | Japanese Vehicles 1980s

Rating

Have you Say: Rate this
Overall Vote
80% - 1 vote
1. Performance & Specification
80% - 1 vote
Built to last?
2. Appearance Overall *Cool factor*
60% - 1 vote
How good it looks ?

Technical

Technical

  • DIMENSIONS AND WEIGHT
    wheel base: 99.02 in, 251 cm
    tracks: 53.15 in, 135 cm front, 52.76 in, 134 cm rear
    length: 169.29 in, 430 cm
    width: 65.16 in, 165 cm
    height: 53.54 in, 136 cm
    ground clearance: 6.30 in, 16 cm
    weight: Custom and GL 2,172 1b, 985 kg - SL 2,194 1b, 995 kg - SL Super 2,216 1b, 1,005 kg
    turning circle (between walls): 36.1 ft. 11 m
    fuel tank: 13.2 imp gal, 15.8 US gal, 60 1.

    ENGINE


    1,597 cc
    Mitsubishi MCA. Jet super lean-burn low emission engine with third air inlet valve, exhaust gas recirculation and catalyst in exhaust manifold
    Location front
    4 stroke; 4 cylinders, In line
    97.4 cu In, 1,597 cc (3D3 x 3.39 in, 76.9 x86 mm)
    compression ratio: 8.5:1
    cast iron block
    light alloy head
    5 crankshaft bearings
    Mitsubishi Saturn 80 omni-phase balancing shafts
    valves: overhead, Vee-slanted, rockers
    camshafts: 1, overhead
    lubrication. rotar pump, full flow filter,7 imp pt, 8.5 US pt
    1 Stromberg 28-32 DIDTA downdraught twin barrel carburettor
    fuel feed: mechanical pump
    water-cooled, 10.6 imp pt, 12.7 US pt

    1855 cc
    Mitsubishi Astron 80 twin contra-rotating balancing shafts incorporated with crankshaft
    113.2 cu in, 1,855 cc (3.19 x 3.54 in, 81 x90 mm)
    lubrication: gear pump
    full flow filter, 7.6 imp pt. 9.1 US pt
    Stromberg 30-32 DIDTA downdraught twin barrel carburettor
    cooling system: 13.6 imp pt, 16.3 US pt, 7.7 1.


    1,995 cc
    Mitsubishi Astron 80 twin contra-rotating balancing shafts incorporated with crankshaft
    121.7 cu in, 1,995 cc (3.31 x 3.54 in, mm)
    lubrication: gear pump, full flow filter, 7.6 imp pt, 9.1 US pt
    1 Stromberg 30-32 DIDTA downdraught twin barrel carburettor
    cooling system: 13.6 imp pt. 16.3 US pt, 7.7 1.

    TRANSMISSION
    driving wheels: rear
    clutch: single dry plate (diaphragm)
    gearbox: mechanical; gears: 4 (5 for SL only)
    fully synchronized
    ratios: I 3.525, II 2.193, III 1.442, IV 1, rev 3.867
    SL I 3.215, II 2, III 1.316, IV 1, V 0.853, rev 3.667
    gear lever: central
    final drive: hypoid bevel;
    axle ratio: 3.909 - SL 4.222
    width of rims: 4.5" (5" for SL only) width of rims 2.0l : 5"; tyres: 165 SR x 13.
    tyres: "5 x 13 - SL 165 SR x 13.


    CHASSIS
    integral
    front suspension: independent, by Mc-Pherson, coil springs/telescopic damper struts, lower wish- bones (trailing links), anti-roll bar
    rear: rigid axle, semi-elliptic leafsprings, telescopic dampers.

    STEERING
    recirculating ball, variable ratio.

    BRAKES
    front disc, rear drum, servo
    lining area: front 19.2 sq in, 124 sq cm, rear 47.8 sq in, 308 sq cm
    total 67 sq in, 432 sq cm.

    ELECTRICAL EQUIPMENT
    12 V; 35 Ah battery
    40 A alternator
    Mitsubishi distributor
    4 headlamps.
