Technical
-
ENGINE 1.8L
front, 4 stroke; 4 cylinders, In line
108 cu in. 1,770 cc (3.35 x 3.07 in 85 x 78 mm)
compression ratio: 8.5:1
cast Iron cylinder block
light alloy head
5 crankshaft bearings
valves: overhead. in line, rockers:
camshafts: 1, overhead
lubrication: rotary pump, full flow filter, 7.5 imp pt. 9 US pt
1 Hitachi DCH340 downdraught twin barrel carburettor
emission control with catalytic converter, secondary air Injection and exhaust gas recirculation
fuel feed: mechanical pump
water. cooled, 14 imp pt, 16.9 US ptENGINE 2.0L
6 cylinders, in line
121.9 cu In, 1,998 cc (3.07 x 2.74 in. 78 x 69.7 mm)
compression ratio: 8.6:1
7 crankshaft bearings
lubricating system capacity 10 imp pt. 12 US pt. 5.7 1
Bosch L-Jetronic electronic fuel injection
fuel feed: electric pump
water-cooled, 15.8 pt. 19 US pt. 9 1.
TRANSMISSION
driving wheels: rear
clutch: single dry plate (diaphragm)
(4 speed)
gearbox: mechanical; gears: 4, fully synchronized
ratios: I 3.382, II 2.013. III 1.312, IV 1. rev 3.365
lever: central
final drive: hypoid bevel
axle ratio: 4.111
width of rims: 5"
tyres: 6.45 x 14.STEERING
SGL models servo
turns lock to lock: 3.60BRAKES
rear compensator.DIMENSIONS AND WEIGHT
rear track: Hardtop 53.54 in. 136 cm
length: 178.15 in, 452 cm
width: 66.34 in. 168 cm:
distribution of weight: 55.7% front, 44.3% rear.
weight: Custom 6 Sedan 2.580 1b, 1,170 kg - Custom 6 2-dr. Hardtop 2,657 1b, 1.205 kg - Custom 6 4-dr. Hardtop 2.690 1b, 1,220 kg - GL6 Sedan 2.602 lb. 1.180 kg - GL6 2-dr.
Hardtop 2,668 lb. 1.210 kg - GL6 a-dr. Hardtop 2.701 lb. 225 kg - SGL Sedan 2,624 1b, 1.190 kg - SGL 2-dr. Hardtop 2.690 1b, 1,220 kg - SGL a-dr. Hardtop 2,723 lb. 1,235 kg;
Specifications Nissan Laurel (C231, 1979)Nissan Laurel
1800
2000 (EU)
2400 (EU)
Engine:
4-cylinder in-line engine (four-stroke)
6-cylinder in-line engine (four-stroke)
displacement:
1770 cc
1998 cm³
2393 cm³
Engine Type:
L18
L20
L24
Bore × stroke:
85 mm × 78 mm
78 mm × 69.7 mm
83 mm × 73.7 mm
Power at 1 / min:
77 kW
(105 SAE-PS)
at 600071.5 kW
(97 hp)
at 560083 kW
(113 hp)
at 5000Max. Torque at 1 / min:
147 Nm at 3600
135 Nm at 3600
179 Nm at 3600
Compression:
8.5: 1
8.6: 1
Fuel supply:
1 downdraft register carburettor
Valve control:
OHC, drive via chain
Cooling:
water cooling
Transmission:
3, 4 or 5-speed gearbox
optional 3-speed automatic
rear-wheel driveFront suspension:
Strut axle, wishbone, tie rods, coil springs, stabilizer
Rear suspension:
Rigid axle, longitudinal and transverse control arm, coil springs
coupe and hardtop sedan: independent suspension with triangular trailing arms, coil springsbrakes:
Disc brakes front, drum brakes rear, brake booster
basic sedan with four-wheel drum brakesSteering:
Recirculating ball steering
Body:
Sheet steel, self-supporting
Track front / rear:
1380/1370 mm
Wheelbase:
2670 mm
Dimensions:
4500-4525 mm × 1670-1685 mm × 1395-1405 mm
Empty weight:
1110-1140 kg
1170-1240 kg
1240-1290 kg
Maximum speed (factory):
160-165 km / h
165-180 km / h
175-185 km / h
0-100 km / h:
not specified
Consumption (liters / 100 km):
about 10-14
about 12-16
about 12-17 p
Nissan Laurel
2600 (EU)
2800 (EU)
diesel
Engine:
6-cylinder in-line engine (four-stroke)
4-cylinder in-line engine (four-stroke)
displacement:
2565 cc
2753 cc
1991 cm³
Engine Type:
L26
L28
SD20
Bore × stroke:
83 mm × 79 mm
86 mm × 79 mm
83 mm × 92 mm
Power at 1 / min:
87 kW
(118 hp)
at 520092 kW
(125 hp)
at 480044 kW
(60 hp)
at 4000Max. Torque at 1 / min:
179 Nm at 3200
221 Nm at 3600
128 Nm at 1800
Compression:
8.6: 1
8.3: 1
20.0: 1
Fuel supply:
1 downdraft register carburettor
Diesel injection pump
Valve control:
OHC, drive via chain
Lateral camshaft, drive via toothed belt
Cooling:
water cooling
Transmission:
3, 4 or 5-speed gearbox
optional 3-speed automatic
rear-wheel driveFront suspension:
Strut axle, wishbone, tie rods, coil springs, stabilizer
Rear suspension:
Rigid axle, longitudinal and transverse control arm, coil springs
coupe and hardtop sedan: independent suspension with triangular trailing arms, coil springsbrakes:
Disc brakes front, drum brakes rear, brake booster
basic sedan with four-wheel drum brakesSteering:
Recirculating ball steering
Body:
Sheet steel, self-supporting
Track front / rear:
1380/1370 mm
Wheelbase:
2670 mm
Dimensions:
4500-4525 mm × 1670-1685 mm × 1395-1405 mm
Empty weight:
1240-1290 kg
1200-1215 kg
Maximum speed (factory):
175-185 km / h
110-120 km / h
0-100 km / h:
not specified
Consumption (liters / 100 km):
about 12-17 p
n / A
Manuals

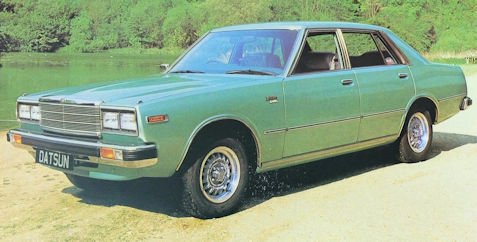

Nissan Laurel 3rd generation
 |
|
|
Production period: |
1977 to 1980 |
|
Class: |
Motor Car |
|
Body versions: |
Sedan, coupe |
|
Engines: |
Gasoline: 1.8-2.8 litres (78-107 kW) |
|
Length: |
4525 mm |
|
Width: |
1685 mm |
|
Height: |
1405 mm |
|
Wheelbase: |
2670 mm |
|
Curb weight: |
1235 kg |
In January 1977, the next Laurel model change took place. The Laurel was first offered as a post-free four-door hardtop sedan, the regular sedan and the coupe remained on offer.
For engines provided either a 1.8-liter four-cylinder, a two-liter inline six-cylinder with carburettors or injection a 2.8-liter six-cylinder or a two-liter diesel four-cylinder.
PERFORMANCE 1.8L
Fuel consumption: 28.2 m/lmp gal, 23.5 m/US gal.
max power (JIS): 105 hp at 6,000 rpm
max torque (JIS): 109 1b ft, 15 kg m at 3,600 rpm
max engine rpm: 6.400
PERFORMANCE: 2.0L
max speed: 109 mph, 175 km/h
130 hp at 6,000 rpm
In the fall of 1978, the Laurel received in the course of a facelift square rather than the round twin headlights.
In May 1979, the 200 L was replaced by the Datsun Laurel C231 series (square twin headlights), the 2.4-liter six-cylinder known from the Datsun 240K-GT and the Datsun 240Z (here with 83 kw / 113 hp) was driven. Furthermore, there were still the terms "Laurel 180L / 200L / 240L / 280L".
OPTIONAL
3-speed automatic transmission;
5.5" light alloy wheels with 185/70HR x 14 tyres.
|
