Renault Scénic II

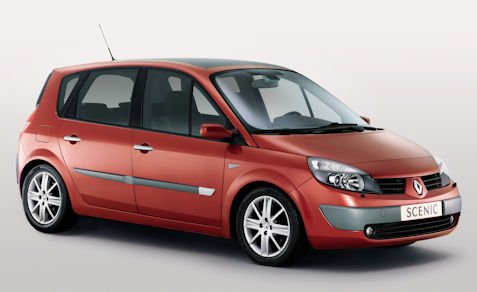

Renault Scénic II Technical details (2003-2009)
Make  Renault
Years of production 2003 - 2009
Production > 1.3 million
Classr  MPV
Assembly plant (s)  Douai
Fuel types Gasoline or Diesel
Engines Petrol:
1.4 16V 100
1.6 16V 115
2.0 16V 135
2.0 16V T 165

Diesel:
1.5 dCi 80/85/100/105
1.9 dCi 120/130
2.0 dCi 150
Engine position Front transversal
Displacement from 1,390 to 1,998  cc
Maximum power from 80 to 165  hp (59 to 121  kW )
Maximum torque 2 Tons  Nm
Gearbox Manual or Automatic
Maximum speed 140 Km / h km / h
Mixed consumption from 5.2 to 8 L / 100 km
Emission of CO 2 from 135 to 200 g / km
Bodywork 5 doors
Length 5 seat: 4,260  mm
7 seats: 4,490 mm
Width 1,810 mm
Height 1,627 mm
wheelbase 2,736 mm
Trunk volume from 430 to 1,990



The Renault Scénic II , appeared in 2003 ,This is the second generation of the French Renault minivan . Following the success of the first generation, the concept of compact minivan is largely taken over improved by other car manufacturers so that Scénic must now face the other competition. The Opel Zafira and Citroen Xsara Picasso are thus its main rivals.

Unlike the previous generation, the Scénic II is available in two versions: a short 5-seater version of 4.30  m and a 7-seater long version of 4.49  m , the Scénic II opts for a more dynamic silhouette while preserving the larger habitability.

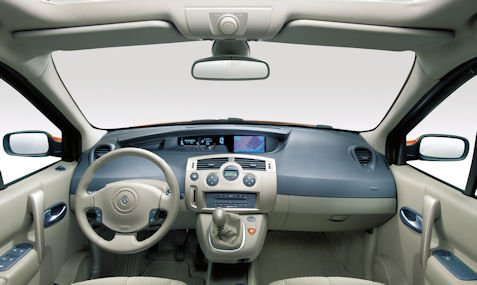

While, following the success of the Renault Scénic I , competition has largely monopolized the concept of compact minivan. The Scénic II, however, adopts a more dynamic profile, marked by taut lines, and gives off an impression of robustness .Noticeably different from the first generation, the angular features .Inside, the dashboard design is entirely new, while the Scénic I suffered from a finish that left something to be desired, because of production rates to meet the many orders, the quality of the finishes and materials of this Scénic is improved and also underwent a light exterior facelift in 2006 .

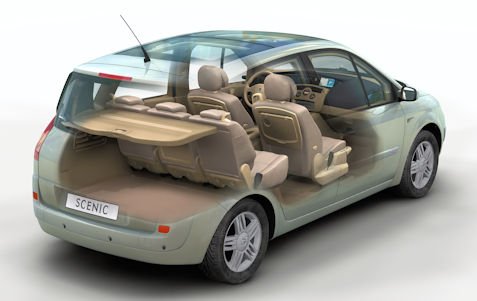

Renault Scénic II Service Guide (2003-2009)

The Renault Scénic II has dimensions roughly similar to its predecessor. Barely longer but especially wider, it retains an "excellent" compromise between livability and space. The Scénic II offers for the time, in its category, the best legroom for rear passengers. Regarding the trunk, the Scénic II sees its capacity increase twenty liters.

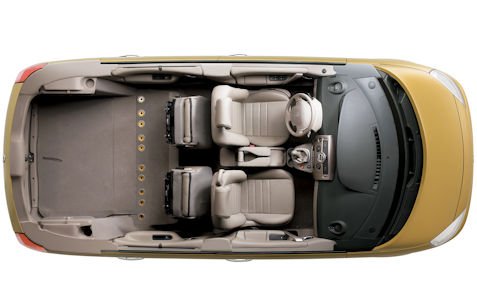

 Renault Scénic II  dimensions
The 5 seats double space once the three rear seats removed. The volume of the trunk is thus close to that of the Citroën Picasso but below the Volkswagen Touran which stands out with a volume of 695 to 1990 liters .Taking over the running gear of the Mégane, the Scénic offers a good road behavior thanks to dampers balanced between firmness and comfort. On the other hand, it is subject to a slight roll during tight turns .
Renault Scénic II Repair Manual (2003-2009)

The engines developed by Renault in the early 2000s have several mechanical weaknesses sometimes severe that are also due to a poor choice of the maintenance schedule made by the manufacturer (especially engine oil change). These problems are well known to the brand since in the spring of 2004 are put in place after-sales measures to correct these defects .
 The engine Renault 1.9 dCi type F9Q800  in particular, is affected with problems of reliability of its turbocharger which can cause the breakage of the engine . Renault, however, takes care of the repair only if the car has less than 150 000  km  . Engine modifications from mid-2005 have improved the reliability of the latter type F9Q812 which is still demanding on maintenance. The 1.5 dCi engine can also be affected with the same problems.

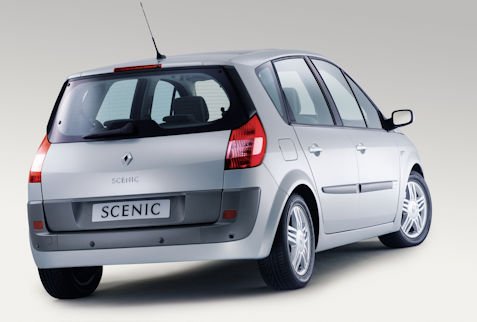

Renault Scénic II Specifications (2003-2009)

Renault Previous 75 / 84 Next

Related

Related items
Renault Scenic | France 2000s | Vehicles launched in 2003

Technical

Technical
  • Engines and transmission

      1.4 16V 1.6 16V 2.0 16V 136 2.0 Turbo 16V 165
    Energy gasoline gasoline gasoline gasoline
    Displacement 1,390  cm 3 1,598  cm 3 1,998  cm 3 1,998  cm 3
    Power 98 hp
    (72 kW)
    115 hp
    (85 kW)
    136 hp
    (100 kW)
    165 hp
    (121 kW)
    Consumption 7.2 ℓ / 100 km 7.2 ℓ / 100 km 8.0 ℓ / 100 km nc



      1.5 dCi 80 1.5 dCi 100 1.5 dCi 105 1.9 dCi 120 1.9 dCi 130 2.0 dCi 150
    Energy Diesel Diesel Diesel Diesel Diesel Diesel
    Displacement 1,461  cm 3 1,461  cm 3 1,461  cm 3 1,870  cm 3 1,870  cm 3 1,995  cm 3
    Power 80 HP
    (59 kW)
    100 hp
    (73 kW)
    105 HP
    (78 kW)
    120 hp
    (88 kW)
    130 hp
    (96 kW)
    150 hp
    (110 kW)
    Consumption 5.0 ℓ / 100 km 4.8 ℓ / 100 km 5.2 ℓ / 100 km 5.8 ℓ / 100 km 6.0 ℓ / 100 km 7.0 ℓ / 100 km



Service

Service
  • Engine: Renault Scénic II 1.4L DOHC 1390 cc

    Compression ratio - 10.0:1
    Ignition and Fuel system - Sagem Type S 3000
    Diagnostic socket - fitted
    Ignition coil - make Sagem
    Firing Order - 1-3-4-2
    Valve clearance -INLET Hydraulic
    Valve clearance -EXHAUST Hydraulic
    Oil pressure -1.5 Bar
    Engine oil grade - cold climate 5W/30 SAE
    Engine oil Change - 4.9 litres (with filter)
    Manual gearbox oil grade  - 75W/80 SAE
    Manual gearbox oil refill - 2.8 litres

    Note:
    All engines and full specifications available for registered users
