Rover 600 Series

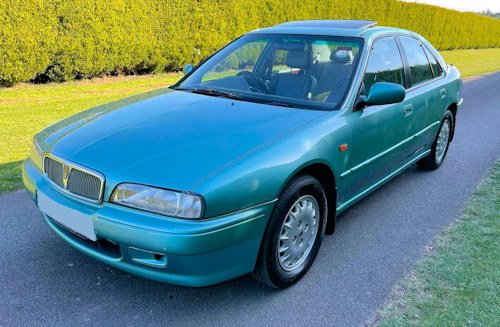

Rover 600 (1993-1999)

Production period:

1993 to 1999

Class :

motor car

Body versions :

Saloon 4 door

Engines:

Gasoline : 1.8-2.3 liters (85-147 kW)
Diesel : 2.0 liters (77 kW)

Length:

4645 mm

Width:

1950 mm

Height:

1380 mm

Wheelbase :

2720 ​​mm

Curb weight :

1255-1380 kg



The Rover 600s models were built in the 1990s by the British automaker MG Rover Group between 1993 and 1999.

History

The MG Rover Group brought out the 600 series in the summer of 1993, which, like other Rover models at the time was the result of cooperation with Honda.

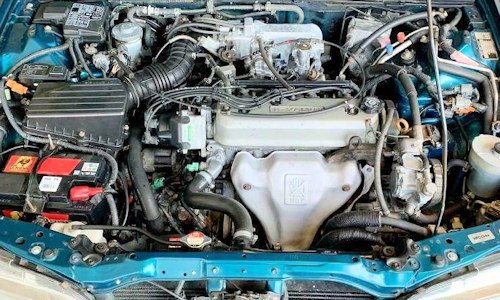

 The bodywork was based on the contemporary Honda Accord 5th generation , and the 1.8-liter SOHC, 2.0-liter SOHC and 2.3-liter DOHC four-cylinder petrol engines also came from Honda . Real rover engines, however, were the 2.0-liter turbo diesel and the 2.0-liter DOHC 16V turbo petrol engine of the T-series, which already had a reputation through its use in the Rover 220 Coupé.

Rover 600 (1993-1999)

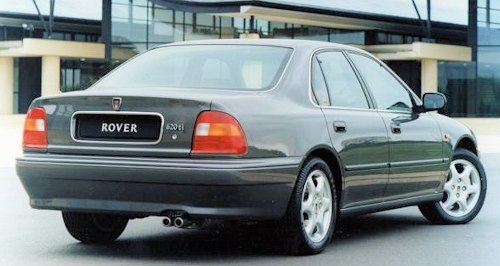

 From summer 1994, the Rover 620 became as a top model of the series. With its Garrett turbocharger and intercooling his performance was 147 kW (200 hp) that helped the vehicle to a top speed of over 142mph  (230 km / h) and an acceleration of about 7.3 s for 0-60 (0-100 km / h). The suspension developed by Honda was comfortable, but not sporty. Only the 620ti had a standard sports suspension All models had power steering.

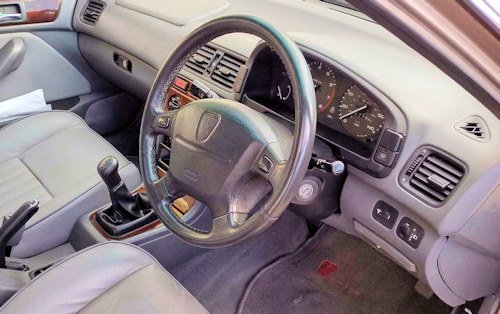

In the interior of the 600 there were wood and chrome applications and other luxurious features details, but the insufficient footwell in the rear was criticized for space All models had electric front windows , remote central locking with alarm and immobiliser . The interior was also derived from the Japanese Honda Accord . The only difference was the offered front passenger airbag for the models from spring 1996.The first revisions were also in 1996, which included a revised interior.The last revisions came in 1997, just over a year later,now with matching and body parts such as strips, door handles and door mirror cover.

Rover 600 (1993-1999)

Range was determined by engine size  and trim

  • 618, 620, 623, 620ti and 620 SDi extra

The selling prices were substantially lower than those of higher competition models. The production of the Rover 600 was discontinued in early 1999. As a successor, the Rover 75 came with a new more retro look on the market, which also replaced the larger Rover 800 series .

Rover 600 (1993-1999)

Categories
Rover
Title
Rover 600 (1993-1999)

Description

Have you Say: Rate this
Overall Vote
  • 1
  • 2
  • 3
  • 4
  • 5
1. Performance & Specification
  • 1
  • 2
  • 3
  • 4
  • 5
Built to last?
2. Appearance Overall *Cool factor*
  • 1
  • 2
  • 3
  • 4
  • 5
How good it looks ?
Related items
British Automotive 1990s | Vehicles launched in 1993

Technical

Technical
  • Rover 600  Technical details and specifications (1993-1999)

    1.8L Engine: F18A

    No. of cylinders 4/OHC
    Capacity 1849 cc
    Compression ratio 9,0:1
    Ignition system Type TSZ-i
    Fuel system Make Keihin Carb-2V
    Diagnostic socket No
    Ignition coil Make Hitachi
    Firing order 1-3-4-2
    Distributor Make Hitachi
    Oil pressure 3.4 bar @ 3000 rpm
    Thermostat opens 78±2°C
    Fuel system delivery pressure 0.09-0.14 bar



    Rover 600 2.0 Turbo engine 20T4 1994-1999

    No. of cylinders 4/DOHC
    Capacity 1994cc
    Firing order 1-3-4-2
    Compression ratio 8.5:1
    Suitable for unleaded petrol Yes
    Diagnostic socket Yes
    Ignition coil Make Motorola Type NEC 100600
    Distributor Make Motorola MKC101600
    Oil pressure 7.0 bar @ 6500 rpm
    Starter motor Make Lucas Type M79
    Maximum cranking amps 162-198 A
    Alternator Make Lucas Type A127
    Regulated voltage 13.6-14.4V

    © Motor car History



    gasoline engines

    model

    Cylinders /
    valves

    Displacement
    cm³

    Maximum power

    Max. Torque

    Engine
    manufacturer /
    code

    0-100
    km / h
    s

    V max
    km / h

    Construction period

    618 i / Si

    4/16

    1850

    85 kW (115 hp) at 5500 min -1

    150 Nm at 4200 min -1

    Honda / F18A3

    10.8

    195

    03 / 1996-02 / 1999

    620 i

    4/16

    1997

    85 kW (115 hp) at 5300 min -1

    173 Nm at 4200 min -1

    Honda / F20Z2

    10.8

    198

    08 / 1993-03 / 1996

    620 Si

    4/16

    1997

    96 kW (131 hp) at 5400 min -1

    177 Nm at 4800 min -1

    Honda / F20Z1

    10.2

    201

    08 / 1993-02 / 1999

    620 ti

    4/16

    1994

    147 kW (200 hp) at 6000 min -1

    240 Nm at 2100 min -1

    Rover / 20T4G

    7.5

    230

    07 / 1994-02 / 1999

    623 Si

    4/16

    2259

    116 kW (158 hp) at 5800 min -1

    206 Nm at 4500 min -1

    Honda / H23A3

    10.0

    216

    08 / 1993-02 / 1999

    diesel engines

    model

    Cylinders /
    valves

    Displacement
    cm³

    Maximum power

    Max. Torque

    Engine
    Manufacturer /
    Code

    0-100
    km / h
    s

    V max
    km / h

    Construction period

    620 Di / SDi

    4.8

    1994

    77 kW (105 hp) at 4200 min -1

    210 Nm at 2000 min -1

    Rover / 20T2N

    10.9

    188

    12 / 1994-02 / 1999

    The curb weight of the vehicles was 1255 to 1335 kg with petrol engine and 1310 to 1380 kg with diesel engine.

Service
  • Rover 600 Service Guide (1993-1999)

    1.8L Engine: F18A

    Spark plugs Electrode gap 1.0-1.1mm
    Spark plugs tighten 18 Nm
    Spark plugs Original equipment NGK Type ZFR6F-11
    Spark plugs Make Bosch Type FR7LCX
    Spark plugs Make Champion Type RC9YCC4
    Spark plugs Make NGK Type ZFR6F-11
    Valve clearance -INLET 0.24-0.28 check cold
    Valve clearance -EXHAUST 0.28-0.32mm check cold
    Engine oil grade - normal/moderate climate 10W/40 SAE 15W/40 SAE
    Engine oil grade - cold climate 5W/30 SAE
    Engine oil grade - hot climate 20W/40 SAE
    Engine oil change with filter 3.8 litres
    Cooling system 6.6 litres

    Tightening torques Cylinder head Renew bolts (No)
    Stage 1 Tighten 40 Nm
    Stage 2 Tighten 70 Nm
    Stage 3 Tighten 108 Nm

    Rover 600 2.0 Turbo engine 20T4 1994-1999

    Spark plugs Electrode gap 0,85mm
    Spark plugs Original equipment Unipart Type GSP6662
    Valve clearance -INLET Hydraulic
    Valve clearance -EXHAUST Hydraulic
    Engine oil grade - cold climate 5W/40 SAE
    Engine oil grade - moderate climate 10W/40 SAE
    Engine oil grade - hot climate 15W/50 SAE
    Engine oil change 4.5 litres
    Manual gearbox oil grade 75W/80WSAE
    Manual gearbox oil 2.2 litres
    Cooling system 7.0 litres
    Brake fluid Type Super DOT 4
    Power steering fluid Type Dexron II
    Power steering fluid 1.8 litres
