Steyr-Puch 500,650,700
 | |
Make: | Steyr-Puch |
Production period: | 1957 to 1973 |
Class: | Motor Car |
Body versions: | Saloon, Estate |
Engines: | 0.5–0.66 litres |
Length: | 2970-3054mm |
Width: | 1320-1374mm |
Height: | 1302-1325mm |
wheelbase: | 1840mm |
curb weight: | 470-580kg |

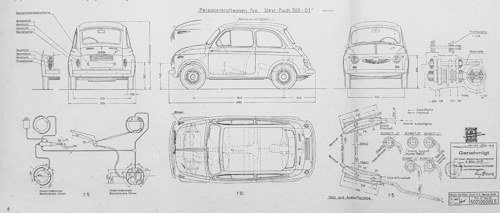

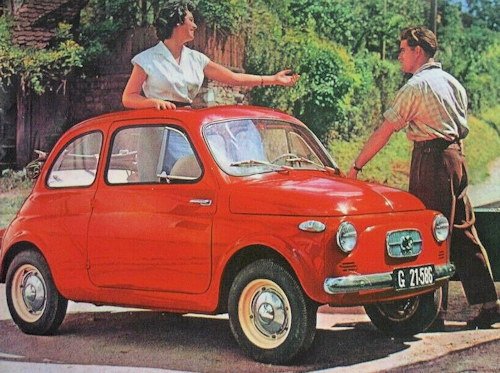

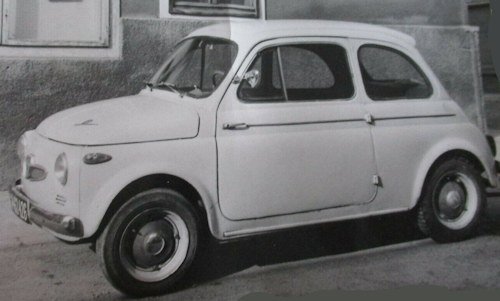

The Steyr-Puch 500 was a small car based on the Fiat 500 from the Puch works also as just Steyr 500 (Group of Steyr-Daimler-Puch AG in Graz).
History
In 1957 the Steyr-Puch 500 model Fiat was introduced. A 2 door, 4 seat rear-engine, rear-wheel drive car. For cost reasons, in-house body production was dispensed with and the body shell of the Fiat Nuova 500 was taken over. The air-cooled boxer engine for this vehicle with around 16 hp enabled good performance for the time, especially when driving uphill. The Steyr-Puch was clearly superior to the Fiat 500 with an in line engine, with the same fuel consumption and smoother running.
The gearbox, which was fully synchronized from the start, was also progressive and advantageous on mountainous roads. In the total braking surface of the drum brakes (total 66.98 sq in, 432 sq cm). However, the Fiat outperformed the Steyr-Puch by 18%.The chassis type was integral with the front suspension independent,wishbones, transverse leaf-spring lower arms and telescopic dampers, The rear suspension also independent, swinging trailing radius arms, coil springs and telescopic dampers.
The following models were made: The 493cc models 500,500d, 500DL.The 493cc model continued untill 1973
PERFORMANCE:493cc (1957-1973)
- engine capacity: 30.08 cu in, 493 cu cm
- fuel consumption:56.5 m/imp gal, 47 m/US gal, 5 1 x 100 km
- max speed: 65.2 mph, 105
- max power (DIN): 19.8 hp at 4,600 rpm
- max torque (DIN): 25 1b ft, 3.4 kg m at 2,800 rpm
- max engine rpm: 5,000
- specific power: 40.2 hp/l
- power-weight ratio: 57.8 lb/hp, 26.2 kg/hp
Built along with larger 643cc models 500 d and 700 E C (estates) in the 1960s
PERFORMANCE: 643cc (1961-1968)
- engine capacity: 39.24 cu in, 643 cu cm
- fuel consumption: 45.5 m/imp gal, 37.9 m/US gal, 6.2 1 x 100 km
- max speed: 67.7 mph, 109 km/h
- max power (DIN): 25 hp at 4,800 rpm
- max torque (DIN): 30 1b ft. 42 kg m at 3.000 rpm
- max number of engine rpm: 5,600
- specific power: 38.9 hp/l
- power- weight ratio: 51.2 lb/hp. 23.2 kg/hp
followed later in the 1960s with the 660cc models 650 TR and TR II and with the last version in the 1970s the 126 version. From 1959, Fiat took over the entire body including the roof (Puch 500 D). For rationalization reasons, from 1969 all the technology, including the transmission, came from Fiat and only the engine from Puch. From 1973, for a short time instead of the Fiat Nuova 500, the successor Fiat 126 was equipped with boxer engines.
PERFORMANCE: 650 TR 660cc (1964-1969)
- engine capacity: 40.27 cu in, 660 cu cm
- fuel consumption: 51.3 m/imp gal, 42.8 m/US gal, 5.5 1 x 100 km
- max speed: 79.5 mph, 128 km/h
- max power (DIN): 30 hp at 5,500 rpm
- max torque (DIN): 33 1b ft, 4.5 kg m at 3,500 rpm
- max engine rpm: 6,200
- specific power: 45.5 hp/l
- power-weight ratio: 36.8 lb/hp, 16.7 kg/hp
Description
Technical
-
Steyr-Puch 500,650,700 Technical details and specifications (1957-1973)
ENGINE: 493 cc
location rear, 4 stroke
cylinders: 2, horizontally opposed
bore and stroke: 2.76 x 2.52 in, 70 x 64 mm
engine capacity: 30.08 cu in, 493 cu cm
compression ratio: 6.7:
cylinder block: cast iron
cylinder head: light alloy, hemispherical combustion chambers
crankshaft bearings: 3
valves: 2 per cylinder, overhead, Vee-slanted, push-rods and rockers
camshafts: 1, central, lower
lubrication: gear pump, full flow filter, oil cooler
carburation: 1 Weber 28 IBMS or Solex 28 VFIS downdraught carburettor
fuel feed: mechanical pump
cooling system: air-cooled.ENGINE: 643 cc
rear. 4 stroke
cylinders: 2, horizontally opposed
bore and stroke: 3.15 x 252 in. 80 x 64 mm
engine capacity: 39.24 cu In, 643 cu cm
compression ratio: 7;
cylinder block: light alloy
cylinder head: light alloy
crankshaft bearings: 3
valves: 2 per cylinder, overhead. Vee-slanted, push-rods and rockers
camshafts: 1, central, lower; lubrication: gear pump
full flow filter, oil cooler
carburation: 1 Weber 32 ICS 1 downdraught carburettor
fuel feed: mechanical pump
cooling system: air-cooled.ENGINE: 660cc
rear, 4 stroke; cylinders: 2, horizontally opposed
bore and stroke: 3.19 x 2.52 in, 81 x 64 mm
engine capacity: 40.27 cu in, 660 cu cm
compression ratio: 8.8
cylinder block: cast iron
cylinder head: light alloy, hemispherical combustion chambers
crankshaft bearings: 3
valves: 2 per cylinder, overhead, Vee-slanted, push-rods and rockers
camshafts: 1, central, lower
lubrication: gear pump, full flow filter, oil cooler
lubricating system capacity: 4.84 imp pt, 5.81 US pt
carburation: 1 Zenith downdraught carburettor
fuel feed: mechanical pump
cooling system: air-cooled.TRANSMISSION
driving wheels: rear
clutch: single dry plate
gearbox: mechanical; gears: 4 + reverse; silent claw coupling gears
gearbox ratios 493cc: 1st 3.700, 2nd 2.067, 3rd 1.300, 4th 0.875, rev 5.140
gearbox ratios 660cc : 1st 3.080, 2nd 1.790, 3rd 1.300, 4th 0.960, rev 3.720
gear lever location: central
final drive: spiral bevel
axle ratio: 493cc 5.125, 660cc 4.880CHASSIS
type integral
front suspension: independent, wishbones, transverse leaf-spring lower arms, telescopic dampers
rear suspension: independent, swinging trailing radius arms, coil springs, telescopic dampers.STEERING
screw and sector
turns of steering wheel lock to lock: 2.80.
turning circle (between walls): 28.2 ft, 8.6 mBRAKES
drum
lining area: front 33.49 sq in, 216 sq cm
lining area: rear 33.49 sq in, 216 sq cm,
lining area: total 66.98 sq in, 432 sq cm.ELECTRICAL EQUIPMENT
voltage: 12 V
battery: 32 Ah
generator type: dynamo, 230 W
ignition distributor: BoschDIMENSIONS AND WEIGHT: Saloon
wheel base: 72.44 in, 1,840 mm
front track: 44.13 in, 1,121 mm
rear track: 44.68 in, 1,135 mm
overall length: 116.93 in, 2,970 mm
overall width: 51.97 in, 1,320 mm
overall height: 53.94 in, 1,370 mm
ground clearance: 5.71 in, 145 mm
dry weight: 1,147 1b, 520 kgDIMENSIONS AND WEIGHT: Estate
wheel base 76.38 in, 1,940 mm
front track 44.09 in, 1,120 mm
rear track 44.68 in, 1,135 mm
overall length 125.20 in, 3,180 mm
overall width 53.54 in, 1,360 mm
overall height 55.51 in, 1,410 mm
dry weight 1,235 1b, 560 kg© Motor car History
-
Steyr-Puch 500,650,700 Maintenance and Service Guide (1957-1973)
500,650 493 cc 660cc
Fuel type: 100 oct petrol
Engine oil change : 4.40 imp pt, 5.28 US pt, 2.5 1, SAE 20W-40, change every 1,900 miles, 3,000 km
Total lubricating system capacity: 4.84 imp pt, 5.81 US pt
Gearbox and final drive oil: 1.93 imp pt, 2.33 US pt. SAE 90, change every 18,600 miles, 30,000 km
Greasing: every 1,600 miles, 2,500 km, 2 points
Tappet clearances: inlet 0.006 in, 0.15 mm, exhaust 0.006 in, 0.15 mm700 (Early) 643 cc
fuel: 80-85 oct petrol
engine oil change: 2.99 imp pt. 3.59 US pt. 1.7 1, SAE 20W-40, change every 1,900 miles, 3,000 km
Total lubricating system capacity: 3.52 imp pt, 4.23 US pt
gearbox and final drive oil: 1.94 imp pt. 2.32 US pt.SAE 90, change every 18,600 miles, 30.000 km
steering box oil: 0.18 imp pt. 0.21 US pt. 0.1 1, SAE 90
greasing: every 1,600 miles, 2.500 km, 3 pointsNormal tyre pressure: front 18 psi, 1.3 atm, rear 25 psi, 1.8 atm.
Tyres: 125 x 12
Fuel tank capacity: 4.8 imp gal, 5.8 US gal
Carrying capacity: 706 1b, 320 kg© Motor car History
