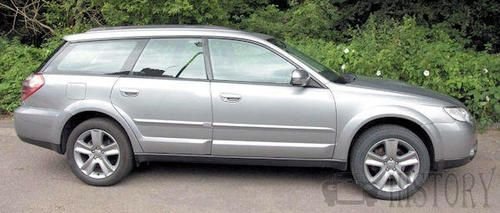

Subaru Outback Fourth Generation
 | |
| Manufacturer | Subaru |
|---|---|
| Production | 2009–2014 |
| Model years | 2010- |
| Body style | 5-door crossover SUV 4-door sedan |
| Layout | AWD |
| Engine | 2.0 L DOHC turbodiesel 148 hp (110 kW) H4 2.5 L SOHC i-AVLS 170 hp (130 kW) H4 3.6 L DOHC DAVCS 256 hp (191 kW) H6 |
| Transmission | Lineartronic CVT 5-speed automatic 6-speed manual |
| Wheelbase | 2,741 mm (107.9 in) |
| Length | 2010-12: 4,780 mm (188.2 in) 2013-: 4,801 mm (189.0 in) |
| Width | 1,821 mm (71.7 in) |
| Height | 2010-12: 1,669 mm (65.7 in) 2013-: 1,623 mm (63.9 in) |
| Curb weight | 1,659 kg (3,658 lb) (3.6R Limited) |
| Related | Subaru Legacy Subaru Tribeca Subaru Exiga |
Based on the fifth generation Legacy, the fourth generation Subaru Outback was introduced in April 2009 at the New York Auto Show, the fifteenth anniversary of the first Outback's introduction at the same event. The Outback was introduced in Japan May 20, 2009.The "Legacy" prefix has been dropped internationally. Air Bags are offered for the driver and front passenger, side bolster airbags for front seats on the outer edge, side curtain airbags for front and rear passengers and a knee bolster air bag for the driver.
The ground clearance increases to 8.7 in (220 mm), and is the ninth Subaru vehicle to feature continuously variable transmission (CVT). The double-sized moonroof is no longer being offered, and has been reduced to a conventional size that doesn't extend over the rear seats. The turbocharged engine is also no longer offered on all international versions of the Outback. An engine coolant temperature gauge is no longer offered, replaced by a fuel economy gauge instead. When the engine temperature is below normal, an indicator light shines blue and when the engine is overheating, the light turns red. Using the key to unlock the drivers door after locking the vehicle with the remote will set off the security system; the vehicle must be unlocked with the remote, a tradition going back to the first generation when remote keyless access was introduced.
The side windows are no longer frameless, ending a Subaru tradition started with the first generation Leone in the early 1970s. The "D" pillar on the wagon is no longer covered in glass, also ending a design tradition established with the first generation and borrowed from the Subaru XT. The front and rear bumper covers are no longer painted a contrasting color, but the plastic side body cladding continues. The external "Limited" badge has been retired on North American vehicles, and if the vehicle has the 3.6 L six-cylinder engine, the rear of the vehicle has a "3.6R" badge applied internationally. Black housing for headlights is not offered on the Outback worldwide. The Outback with 2.0 L diesel engine can be distinguished by its hood scoop and "Boxer Diesel" emblem on the rear. January 21, 2010, the Outback was introduced for sale in South Korea.
Subaru introduced improvements to the chassis that they call Dynamic Chassis Control Concept, which uses high-tensile steel in critical areas to achieve high strength with lighter weight. The front-end structure introduces Cradle Mount that isolates the suspension and engine from the passenger compartment for a smoother and quieter ride using rubber mounts. New for this generation is a double wishbone rear suspension, with all suspension links and the rear differential isolated from the rear subframe with large rubber mounts to minimize noise and vibration intruding into the passenger compartment. Subaru has also added safety technologies such as Electronic Stability Control, Brake Assist, and Electronic Brakeforce Distribution to the list of standard features.
In North America, the fourth generation Outback won Motor Trend magazines Sport/Utility of the Year Award for 2010, and Ward's Automotive Group's 2010 Interior of the Year awards in the popular-priced car category under $29,999.
Basic equipment
The basic equipment that is standard across all versions of the Subaru Outback from 2009 to 2014.
|
North American models
Trim level designations have been modified based on the engine installed; the Subaru EJ engine 2.5 L naturally aspirated engine are labeled 2.5i, 2.5i Premium, and 2.5i Limited, with the Subaru EZ 6-cylinder engine identified as 3.6R, 3.6R Premium and 3.6R Limited. As with previous generations, leather interior is only available in 2 colors (Warm Ivory or Off-Black) on Limited trim packages on specific exterior colors, and a glass moonroof is optional only on the Limited; cloth interiors are offered in the specified colors on lower trim level packages. A 440 W, 9-speaker Harman/Kardon audio system, using Dolby Pro Logic II technology and DTS Digital Sound, with Bluetooth and iPod capability is optional on the Limited trim packages. An 8 in (203 mm) voice activated GPS touch screen navigation system is optional only on the Limited. A separate Bluetooth wireless package with voice recognition, called Blueconnect, is available on lower trim levels and is not offered internationally. A Harman/Kardon-sourced stereo with a 6-disc in-dash CD changer and SRS Circle Surround sound is the standard sound system provided, with six speakers on all trim levels. A dual zone digital climate control system with 6-speed fan is standard and only available on the Limited; the base and Premium model have a 4-speed fan. Base and Premium trim levels have silver metallic trim on the interior door panels and dashboard; the Limited trim package has woodgrain accents.
Japanese models
The Japanese-specification Outback is available with either the 2.5 L flat-4 or the 3.6 L flat-6 engine. The EJ20 engine is no longer used in the Legacy or the Legacy Outback. The trim levels are 2.5i, 2.5i L package and 3.6R and 3.6R SI-Cruise. SI-Cruise is an autonomous cruise control system that can reduce or resume a preset speed or bring the vehicle to a complete stop if the system detects a slower vehicle is being followed, without driver intervention. Air vents are installed for rear passengers at the back of the center front armrest compartment. The front hood (bonnet) and front bumper covers are not interchangeable with the North American version due to slight changes in the sheet metal. Turn signal repeaters are still integrated into the side exterior mirrors on all Japanese-spec models. Woodgrain accents are standard on the "L" package and the SI-Cruise vehicle, silver accents on lower trim levels.
SI-Drive, or Subaru Intelligent-Drive,(Japanese: SI-Drive) is standard equipment on all trim versions. It is a feature that enables three distinctly different modes of vehicle performance characteristics (identified as "Sport", "Sport Sharp", and "Intelligent") by regulating the engine control unit (ECU), the automatic transmission control unit (TCU, if equipped), and by fine-tuning the electronically controlled throttle. The SI-Drive control knob is installed on the center console between the heated front seat control switches. The "Intelligent" mode makes throttle response more gradual, and decreases maximum engine power by 10 percent. The "Sport" mode allows the engine to run at higher speeds and increases fuel efficiency by 5 percent in comparison to Subaru engines without the feature. The "Sport # (Sharp)" mode makes throttle response more abrupt and enables the automatic transmission to maintain higher RPMs within a given gear's range, and minimizes the electric power steering wheel effort. When the engine is started, the default setting is the "Sport" selection.
European models
The European engine choices are the flat-4 EE20 2.0 L turbodiesel, the EJ25 2.5 L or the EZ36 3.6 L flat-6, with SI-Drive available only on the six-cylinder. Trim level packages are the 2.0D Comfort, Trend and Active, the 2.5i Comfort and Trend, or the 3.6R Exclusive. The interior colors of Warm Ivory or Off Black are offered, but the Warm Ivory interior is only available in leather. Wood accents are only available on the Exclusive trim package. The dual-zone climate control system is standard on all trim levels. The turbodiesel is available with the Warm Ivory interior with the Harman/Kardon sound system with six speakers and the satellite navigation, but the only transmission offered is the six-speed manual transmission. Cruise control, heated seats, automatic windshield wipers, HID headlights with headlight washers, heated exterior mirrors, glass moonroof and 17" wheels are standard equipment. The smart key is available only on the Exclusive or Comfort trim packages, coupled with the satellite navigation system and memory seats. The front hood (bonnet) and front bumper covers use the Japanese configuration, with turnsignal repeaters on the exterior mirrors, and standard equipment front and rear foglights. The turbodiesel and the 2.5i engines are Euro5 compliant.
United Kingdom models
The Outback is available to United Kingdom buyers with a choice of the flat-4 Subaru EE turbodiesel with a 6-speed manual transmission, the 2.5 L flat-4 with the CVT transmission, or the 3.6 L flat-6 engine with SI-Drive and an 5-speed automatic transmission. The trim level packages are the 2.0D SE and 2.0D SE NavPlus diesel, the 2.5i SE and the 2.5i SE NavPlus and the 3.6R. The interior is offered in black only, with leather on all trim levels. The interior trim strips on the doors and dashboard are silver on all models except the 3.6R, which has woodgrain trim. The front bumper and bonnet use the Japanese configuration, to include self-levelling HID headlights and headlight washers. The UK and Europe are offered an exterior paint selection, called Camellia Red Pearl that is not available in Japan or North America. For vehicle security, a Thatcham Category 1 perimeter alarm and immobiliser, along with a rolling code ECU engine immobiliser are standard equipment. The dual-zone climate control system is standard on all trim levels. The 2.5i and the turbodiesel engines are Euro5 compliant.
The smart key is available on NavPlus and 3.6R models only. 17" alloy wheels are standard on all models, as well as rain sensing automatic wipers, two position memory seat, heated exterior mirrors, glass moonroof, heated front seats, fog lights, and tilt and telescoping steering wheel. The Harman/Kardon stereo with 6 speakers and the rear-view backup camera is installed only on vehicles with the voice recognition NavPlus system. The standard stereo system uses an in-dash 6-disc CD auto-changer and automatic speed-sensing volume adjustment that is MP3 player compatible.
South African models
The Outback is offered with black interior; specifications are similar to European "Comfort" trim package. Outback 2.5i Premium is available with the choice of Lineartronic CVT or six-speed manual transmission, including leather trim, memory function for the driver's seat, electric sunroof, dual zone climate control and rear air vents. Satellite navigation is not offered along with the premium Harman/Kardon sound system.
Recently, the 2.0 diesel (6-speed manual only) and 3.6R models have been introduced.
Australian models
The Outback sold in Australia resembles the vehicle sold in Europe, with some features only available in Japan. The trim level packages are the 2.5i, 2.5i Premium, 2.5i Premium SatNav, the 3.6R, 3.6R Premium SatNav and the diesel 2.0D, 2.0D Premium, 2.0D Premium SatNav. The engines offered are the EJ25, EZ36 and the EE20 turbodiesel. Australians can choose either the Lineartronic CVT or a 6-speed manual transmission on the EJ25, but transmission choices on the EZ36 are limited to the 5-speed automatic, and the EE20 turbodiesel is available with the 6-speed manual transmission exclusively. The Off Black interior color is standard across the range, however the Warm Ivory is available on the 3.6R, with leather interior offered on vehicles identified as "Premium". Cloth is offered on the 2.5i, 3.6R and the 2.0D. SI-Drive is only available on the 3.6R, following the international trend. The front bumper and hood (bonnet) use the Japanese configuration. The Australian EJ25 and EE20 engines are Euro4 compliant.
The dual-zone climate control system is standard on all trim levels. Sound systems offered include the McIntosh stereo with 10 speakers, a separate powered amplifier and satellite navigation provided by "WhereIs", a service provided by Telstra Corporation Ltd, or the Harman/Kardon stereo with the satellite navigation and 6 speakers, or the unit offered in North America and Europe with a 6-disc in-dash CD changer and 6 speakers. The McIntosh unit sold in Australia has function buttons written in English and is different than the Japanese unit, due to Japanese characters being used on some of the functions. The Australian McIntosh or Harman/Kardon GPS-stereo packages are not Gracenote, G-BOOK and VICS enabled, and do not have the internal 600 MHz 40GB HDD coupled with a digital TV tuner. The center dashboard trim is color matched based on the stereo installed; if it has either one of the Harman/Kardon units, the trim color is silver brushed aluminum, and if the McIntosh is installed the trim color is black brushed aluminum. The climate controls are also colored either silver or black as well. Silver trim is installed on the doors and dashboard, with woodgrain available only on the 3.6R. Cruise control, heated seats, automatic windshield wipers, HID headlights with headlight washers, heated exterior mirrors, and 17" wheels are standard equipment. The smart key is available only on the 3.6R, and the glass moonroof is only offered on Premium trim packages.
