Britain
Motor Cars
1930s

Sunbeam Twenty-Five

Sunbeam 25 car (1933-1935)

Manufacturer

Sunbeam

Production

1933 to 1935

Class

Motor Car

Body style

4-door saloon,coupe,Limousine

Engine

Straight-6 ohc

Transmission

4-speed manual sliding-pinion

Wheelbase

10 ft. 10 ins.

Length

15 ft. 8 ins

Width

6 ft

Weight

2-ton 1cwt

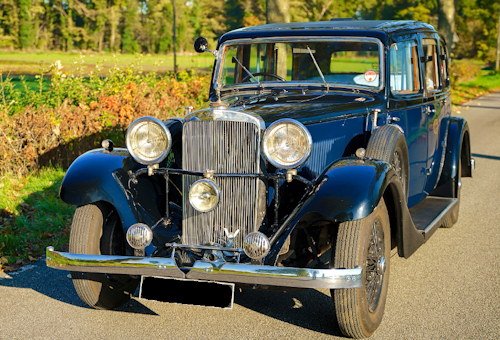

The Sunbeam Twenty-Five is a luxury saloon car introduced by Sunbeam in the 1930s.

History

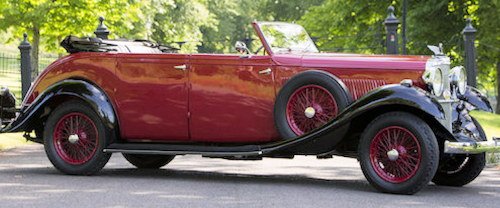

The Sunbeam Twenty-Five was an top of the range interwar car from the Sunbeam manufacturer only from 1934 to 1935. Built as a 4-door saloon or coupe at £875 and also the luxury seven-seater with options Limousine form £1.045 It was produced on two wheelbase lengths 130" and larger 136" with also coach built body options.Built as a more luxury car with notable features such as being Fast, silent, well-sprung and reasonably economical to operate, the " Twenty-five " is well sprung with a Wide Spring-base and chassis and body. From the manner in which the car behaves when running at high speed on good roads there is a marked steadiness entirely devoid of any sponginess gives a more luxury feel.

Sunbeam Twenty-Five Technical details (1933-1935)

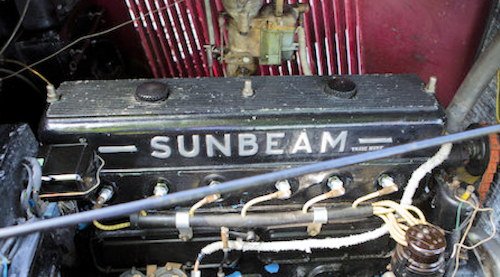

Fitted with a cleanly designed six-cylinder overhead-valve engine. To reach 40 m.p.h. from 10 m.p.h. requires little more than 13 secs. whilst a speed of a mile-a-minute can be achieved (from 10 m.p.h.) in under 25 seconds the throttle not more than half-way open the engine gives off sufficient torque for a speed of about 60 m.p.h. to be maintained as this Sunbeam model is capable of a sustained speed of 77 m.p.h. on level going, and over 80 m.p.h depending on body.

The car Quick and Easy Gear Change For emergency use, a low bottom gear (17.8 to 1) is provided, but for all practical purposes the second gear ratio of 9.8 to 1 suffices to get away, even when the car is standing on a moderate upgrade. (Both these gears are equipped with synchronizing clutches).

PERFORMANCE: Sunbeam Twenty-Five

  • Max speed Top gear, 77 m.p.h.
  • Third 51 mph
  • Second 39 mph
  • Acceleration From stand still to 70 m.p.h., 30 secs
  • Maximum pull in lb. per ton: top gear, 250 lb.; third 340 lb.; second 489 lb.
  • Petrol Consumption: 15.4 m.p.g.

Sunbeam Twenty-Five specifications (1933-1935)

Categories
Sunbeam
Title
Sunbeam Twenty-Five (1933-1935)

Description

Have you Say: Rate this
Overall Vote
  • 1
  • 2
  • 3
  • 4
  • 5
1. Performance & Specification
  • 1
  • 2
  • 3
  • 4
  • 5
Built to last?
2. Appearance Overall *Cool factor*
  • 1
  • 2
  • 3
  • 4
  • 5
How good it looks ?
Related items
British Automotive 1930s | Vehicles launched in 1934

Technical

Technical
  • Sunbeam Twenty-Five Technical details and specifications (1934-1935)

    ENGINE:
    Six Cylinders
    3,315.5 cc
    Bore 80mm Stroke 110mm
    Push rod operated overhead valves
    Coil Ignition

    TRANSMISSION DRIVE LINE:
    Gearbox four forward speeds
    Sliding gears 1st and second
    Syncromesh 3rd 4th
    Ratios 4.9. 6.7. 9.8 and 17.8 to l.

    DIMENSIONS AND WEIGHT:

    Wheelbase, 10 ft. 10 ins.
    track 4 ft. 10 ins
    ground clearance. 61/4 ins
    overall length, 15 ft. 8 ins
    width, 6 ft
    height 5 ft. 10 ins
    Turning Circles 48 ft.
    Weight: 2 ton 1cwt
    tank capacity 16 gall.
