Toyota Avalon Third generation

Production period:	2005 to 2012
Body versions :	Saloon
Engines:	Gasoline engine :3.5 liters (200 kW)
Length:	5009 mm
Width:	1849 mm
Height:	1486 mm
Wheelbase :	2822 mm

The Toyota Avalon is a full-size sedan built in the US by Toyota and offered exclusively in North America . Until July 2005, it was also produced in Australia and then replaced in November 2006 by the Toyota Aurion . It is a four-door notchback sedan with front-wheel drive. In Japan, the first two generations were built as a Toyota Pronard . The third generation, however, there was no longer there. Likewise, the model disappeared from the market in Australia. The third-generation Avalon was designed at Calty Design Research in Newport Beach, Calif., developed by U.S.-based Toyota Technical Centers and was assembled at Toyota Motor Manufacturing in Georgetown, Ky.

All Avalon models are powered by a 3.5-liter, 24-valve V6 engine that produces 268 horsepower and 248 lb.-ft. of peak torque. Dual Variable Valve Timing with intelligence (Dual VVT-i) and a dual-stage variable intake manifold ensure outstanding performance at all engine speeds.
The Avalon can effortlessly accelerate from zero-to-60 mph in just 7.7 seconds, and it also achieves admirable estimated EPA fuel economy ratings of 19 mpg city/28 mpg highway.

2005 started the new, third generation, again significantly larger than its predecessor. It is now equipped with a 3.5-liter V6 with 200 kW and 336 Nm of torque. In 2008, the Avalon received a small facelift in which the front was slightly changed and a six-speed automatic (previously five levels) was introduced.

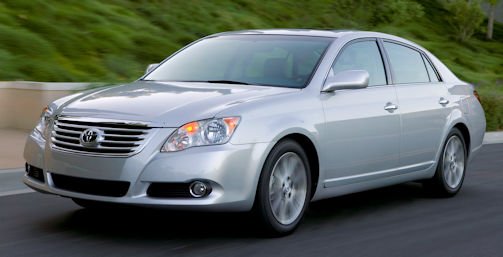

2008  a new six-speed automatic transmission and a revised braking system for 2008. Revised exterior styling and new luxury upgrades .A new bumper, grille and headlights update the Avalon at the front, and new smoked tail lamp lenses. Chrome door handles and a new wheel design for the Touring and XLS.

The new six-speed automatic Electronically Controlled Transmission with intelligence (ECT-i) provides a sequential manual shift  A revised braking system employs larger rear
discs and aluminum rear calipers.

Inside

Avalon for 2008, numerous enhancements to standard and optional equipment increase comfort and convenience. The standard XL model for 2008 now offers an available four-way power passenger seat, while the XLS and Limited offer an optional new eight-way power passenger seat. All grades gain a standard new multi-information display, leather shift knob and additional chrome interior accents.
Music-playing versatility is assured by a newly standard six-disc CD changer for all models, plus a mini-jack for connecting an iPod or MP3/WMA music player to the vehicle's audio system. Bluetooth wireless technology is included with the JBL audio upgrade package (standard on Limited).

The Avalon is offered in four grades, the standard XL, the Touring,the well-equipped XLS and the top-of-the-line Limited, which compares well to near-luxury models for comfort and amenities. Both the XLS and Limited models now also offer power-adjustable lumbar for the front passenger seat. On the Limited, the rear sunshade now re-extends
when the driver shifts from Reverse to Drive. The lower intake valance houses fog lamps on the Touring, XLS and Limited models, and the Touring model also features a rear spoiler. Side mirrors on the Limited grade feature in-glass LED turn signals, and an LED puddle lamp illuminates the area along the side of the car when passengers approach the vehicle. The Limited grade also features side mirror memory.

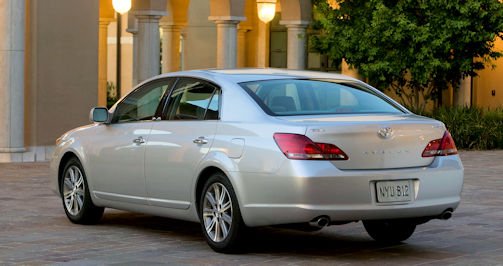

Touring and Limited grades come standard with high intensity discharge (HID) headlamps with dynamic automatic leveling for improved visibility, while reducing glare for oncoming traffic. Large tail lamps and an elegantly sculptured trunk distinguish the Avalon from the rear, and dual exhaust outlets add a sporty touch.

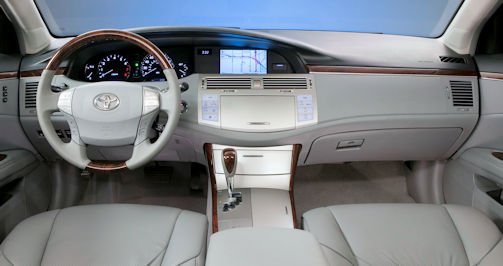

interior. Amenities for driver comfort include a tilt and telescopic steering column and a center console sliding armrest. Rear passengers benefit from a flat rear floor that provides generous legroom, and the rear seats recline up to 10 degrees.

SAFETY

The Avalon's supplemental restraint system (SRS) includes standard front seat-mounted side airbags and front and rear side-curtain airbags that help provide protection in certain types of severe side impacts. The Avalon also features a driver's knee airbag as standard equipment.
The standard anti-lock brake system (ABS) features Electronic Brake-force Distribution (EBD). Vehicle Stability Control (VSC) is available with traction control (T RAC) and Brake Assist (BA) on all models. VSC is designed to detect and help to correct loss of lateral traction during cornering. VSC integrates traction control (T RAC) to help limit wheel spin on slippery road surfaces. Brake Assist is designed to determine if the driver is attempting emergency braking and, if the driver has not stepped firmly enough on the brake pedal to activate the ABS, it applies maximum braking pressure until the driver releases pedal pressure.

STANDARD FEATURES

AVALON XL
3.5-Liter 24-valve DOHC with Dual VVT-i V6
six-speed automatic transmission with sequential shift
16-inch alloy wheels with P215/60 R16 tires
Dual rear exhaust
Driver and front passenger airbags
Driver and front passenger seat-mounted side airbags
Side curtain airbags
Driver's knee airbag
Multi-reflector headlamps with daytime running lights and auto on/off feature
Fabric multi-adjustable front bucket seats, including eight-way adjustable power driver's seat with power lumbar
Power door locks with anti-lockout feature
Power windows with driver and front passenger auto up/down with jam protection and retained-power features
Premium AM/FM/six-CD audio system with nine speakers and in-glass diversity antenna
Tilt/telescopic steering wheel
Steering wheel mounted audio and climate controls
Dual zone automatic climate control with air filtration
Multi-function information display with message, audio, climate control, outside temperature and trip computer information
Optitron speedometer, tachometer, coolant and fuel meters
Cruise control
Front, center console storage area and sliding arm rest
Rear reclining seats with locking trunk pass-through
Rear flat floor
Dual color-keyed power outside mirrors
Color-keyed bumpers
Driver and passenger extendable visor with illuminated vanity mirrors
Heavy-duty rear window defogger
Power trunk and fuel-filler door release
Full size alloy spare tire
Remote Keyless Entry
Rear passenger reading lamp
Inside trunk-release handle
(2) 12-volt auxiliary power outlets
Engine immobilizer
Tire Pressure Monitoring System

AVALON
Touring*In addition to or replaces standard XL features
17-inch alloy wheels with P215/55 RI 7 tires
Suspension tuning
Leather wrapped steering wheel and shift knob and black leather-trimmed seats
4-way adjustable power passenger seat
High intensity discharge headlamps
Integrated fog lamps
Rear lip spoiler
Aluminum door scuff plates

XLS*In addition to or replaces standard XL features
17-inch alloy wheels with P215/55 RI 7 tires
Leather-trimmed seats, leather wrapped steering wheel and shift knob
Wood trimmed dash and door panels
4-way adjustable power passenger seat
Power moonroof
In-dash 6-disc CD changer
Integrated fog lights
Dual heated outside mirrors with driver's-side auto-dimming electrochromic feature
Auto-dimming electrochromic rearview mirror with compass
HomeLink universal transceiver
Anti-theft system
Aluminum door scuff plates

Limited*In addition to or replaces standard XLS features
Unique 17-inch alloy wheels with P215/55 RI 7 tires
Smart Key System
Driver and front passenger heated and ventilated seats
JBL Synthesis audio system 6-disc CD changer with 12 speakers (360 watts)
Power driver's seat cushion length adjuster
Rain-sensing windshield wipers
Power rear sunshade
Memory driver's seat
Memory outside mirrors with puddle lamps and LED turn signal indicators
High intensity discharge headlamps
Wood and leather trimmed shift knob and steering wheel
Aluminum door scuff plates

AVAILABLE OPTIONS

XL
Power moonroof
Anti-theft system
Vehicle Stability Control (VSC) and Traction Control (T RAC) plus Brake Assist (BA)
Remote engine starter (port/dealer installed)

Tourinq
Power moonroof
Navigation System (deletes cassette player)
JBL Synthesis audio system includes six-disc CD changer with 12 speakers (360 watts maximum output)
Vehicle Stability Control (VSC) and Traction Control (T RAC) plus Brake Assist (BA)
Heated front seats
Dual heated outside mirrors with driver's side auto-dimming feature
Auto-dimming rearview mirror with compass and HomeLink universal transceiver
Remote engine starter (port/dealer installed)

XLS
Navigation System
JBL Synthesis audio system includes six-disc CD changer with 12 speakers (360 watts maximum output)
Vehicle Stability Control (VSC) and Traction Control (TRAC) plus Brake Assist (BA), and heated front seats
Remote engine starter (port/dealer installed)

Limited
Navigation System
Vehicle Stability Control (VSC) and Traction Control (T RAC) plus Brake Assist (BA)
Dynamic laser cruise control
Remote engine starter (port/dealer installed)
