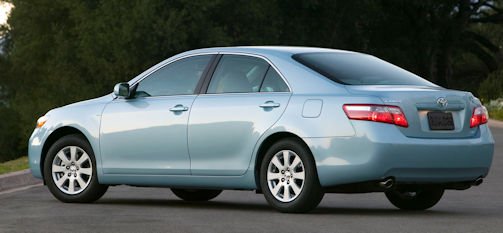

Toyota Camry 6th generation (XV40)

Production period:	2006 to 2011
Body versions :	Sedan
Engines:	Gasoline : 2.4-3.5 liters Hybrid :2.4 liters (140 kW)
Length:	4805 mm
Width:	1820 mm
Height:	1470 mm
Wheelbase :	2776 mm
Curb weight :	1489 kg

Toyota introduced an all-new, sixth-generation Camry for 2007. Since late 2006, the Camry was not only produced in Asia, but also in Georgetown (Kentucky) .

History

Camry is available in four-cylinder and V6 models, and as the Camry Hybrid equipped with Toyota's  industry-leading Hybrid Synergy Drive. The Camry stands out in a competitive segment with its distinctive,exterior design. It is built on a 109.3 in. wheelbase to provide interior
room: 101.4 cubic feet of passenger space, including 38.3 inches of rear legroom.

Changes for 2008 include new darker wood trim in the XLE grade.Classic Silver Metallic was added to the array of exterior colors, while Titanium Metallic was discontinued.
The standard Camry powertrain is a smooth, 158-horsepower 2.4-liter four-cylinder engine. The 268-horsepower 3.5-liter V6 available for other Camry models provides outstanding performance with admirable fuel efficiency.
The Camry Hybrid combines a four-cylinder gasoline engine with an electric drive motor and sets a new standard for the performance/fuel efficiency balance in a mid-size sedan.
Integral to Camry's value is its fuel efficiency, with EPA-estimated 33 mpg city/34 mpg highway ratings for the Camry Hybrid. Four-cylinder manual and automatic Camry models have city/highway fuel economy ratings of 21/31 mpg,and V6 Camry models have 19/28 mpg EPA estimated ratings.

Safety

The Camry's body structure is designed to absorb collision-impact forces and help minimize impact deformation to the passenger cabin. High-strength steel is used for B-pillar and rocker panel reinforcements to help manage overall body deformation in the event of a side collision. Inside the cabin, even the seat frames are designed to help absorb side collision loads.
Dual-stage advanced SRS airbags, seat-mounted side airbags, side curtain airbags and a driver's knee airbag are standard on all Camry models. The front seats use Toyota's Whiplash Injury Lessening (WIL) seat design. All 2008 Camry models come equipped with a standard anti-lock brake system (ABS), Electronic Brake-force Distribution (EBD) and Brake Assist. The Brake Assist feature is designed to determine if the driver is attempting emergency braking. If the driver has not stepped firmly enough on the brake
pedal to engage the anti-lock brake system (ABS), Brake Assist supplements the applied braking power until the driver releases pedal pressure.
Available as an option, Vehicle Stability Control (VSC) with traction control regulates engine output and brake application on individual wheels to help control loss of traction in turns. Camry Hybrid is equipped with the Vehicle Dynamics Integrated Management (VDIM) system that helps control vehicle traction and stability through throttle control, brake application on individual wheels, and even minor steering correction if circumstances require.

Four-wheel independent suspension is via MacPherson struts in front and a dual-link strut rear suspension system. Camry, LE, XLE and Hybrid models ride on standard 16-inch wheels of either steel (Camry and LE) or aluminum (XLE and Hybrid), with the sporty SE model getting aluminum six-spoke, 17-inch wheels as standard. All Camry models are equipped with four-wheel disc brakes.

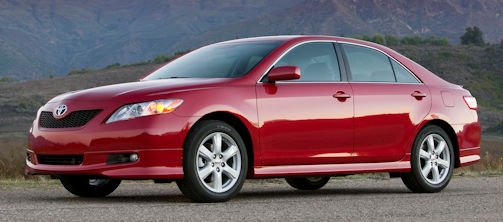

The Camry SE gets a distinctive look with a standard full body kit that positions the car 0.4-inches (10 mm) lower than other Camry grades, plus 17-
inch aluminum wheels, a distinct black, honeycomb-style grille and smoked tint halogen headlamps. Toyota Camry SE model include springs, shock absorbers and bushings with firmer, sportier values than those used in other grades. Underbody stabilizing braces and a V-shaped brace between the trunk and cabin help to increase torsional rigidity in the SE model.

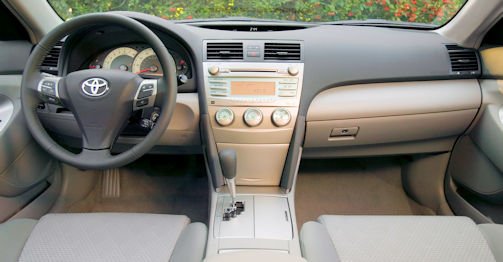

Tuning the SE chassis went together with optimizing underbody aerodynamics. Making the underbody as flat as possible helps to smooth and speed the airflow under the car, and engineers also specially tuned the balance between front and rear downforce.Inside, the Camry SE is distinguished by a unique sport-trimmed interior in dark charcoal or Ash gray with a leather-wrapped, three-spoke steering wheel and blue-colored gauges.

Engines

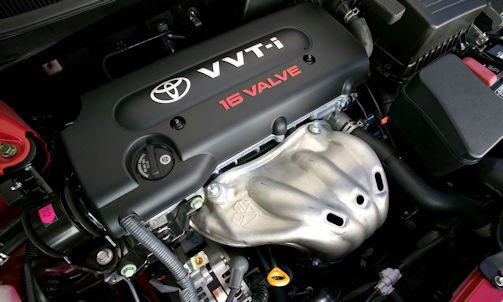

Four-Cylinder or Powerful V6 The Camry's standard 2.4-liter engine develops 158 SAE horsepower at 6,000 rpm and 161 lb.-ft. peak torque at 4,000 rpm and can be mated to a five-speed manual transmission or an electronically controlled five-speed automatic.(The PZEV-certified version offers 155 hp and 158 lb.-ft.) The DOHC 3.5L V6 available in the LE, SE and XLE grades delivers a substantial performance boost with 268 SAE horsepower at 6,200 rpm and 248 lb.-ft. peak torque at 4,700 rpm.
The chain-driven camshafts employ Dual Variable Valve Timing with intelligence (Dual VVT-i) for optimal performance and efficiency at all engine speeds.
The V6 Camry models come equipped exclusively with a six-speed automatic transmission that offers a sequential mode for manual shifting when desired. Intelligent control adapts shifting strategy in response to driver input, with very fast kick-down response in particular. Camry Hybrid

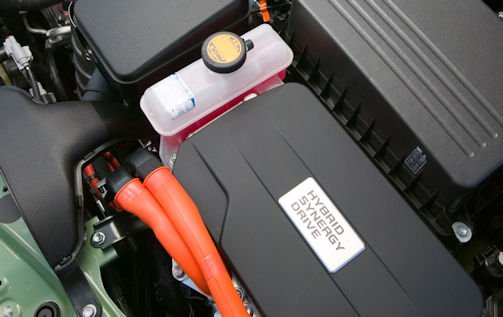

The Camry Hybrid provides excellent value and fuel economy. Its Hybrid Synergy Drive produces a combined 187 horsepower, and this system varies power between gas engine and electric motor, or combines both, as needed. The first part of Hybrid Synergy Drive consists of a 147-hp, 2.4-liter four-cylinder Atkinson-cycle engine coupled to an electronically controlled planetary-gear continuously-variable transmission. The second part combines a small, high-torque 40-hp electric motor, an ultra-small inverter with a specially designed compact battery, and a transaxle to seamlessly combine power from the electric motor and gasoline engine.

Because there are situations in which the gas engine in a Toyota hybrid completely shuts down, air conditioning and power steering systems are driven electrically. In addition, an "ECO" button limits energy consumption by the climate control system and under certain conditions can help improve fuel economy.

With the 60/40 fold-down rear seats, Camry offers 15 cubic feet of luggage space (14.5 cu. ft. with the reclining rear seat in XLE or fixed rear seat in SE, and 10.6 cu. ft. in the Camry Hybrid). The trunk is equipped with a grocery hook, a utility box and a luggage net (on XLE) for added convenience.

The base model had a four-cylinder engine with 2.4-liter displacement, which made 108 kW (147 hp). In the North American market, the standard version had a displacement of 2.5 liters and 127 kW (169 hp) or 134 kW (179 hp). Available from the LE equipment with a 3.5-liter six-cylinder engine and 200 kW (268 hp). New in the V6 was also a six-speed automatic, which replaced the older five-speed version of the four-cylinder versions. The Toyota Camry Hybrid was powered by the combination of a 2.4-liter four-cylinder and an electric drive. The total output was given as 140 kW (187 hp).

In addition to the safety features with ABS, ESP (optional) and seven airbags, the Camry model year 2007 also had satellite radio , DVD navigation, xenon , LED taillights and Bluetooth technology.

The Camry comes equipped as standard with air conditioning with micro dust and pollen filter; power windows and door locks; color-keyed power side mirrors; cruise control; halogen headlamps with automatic on/off feature; tilt and telescopic steering wheel; vehicle immobilizer, and a six speaker 160-watt digital AM/FM/CD audio system with auxiliary audio jack. All Camry audio systems can play CDs with MP3 files. The Camry LE adds an in-key remote keyless entry and eight-way-adjustable power driver's seat.
The XLE's list of standard features includes an upgraded dual-zone automatic climate control system with steering-wheel controls, a premium 440-watt JBL audio system with Bluetooth technology for hands-free calling with compatible phones; wood-style trim; power glass moonroof; reclining rear seats; fog lamps, and aluminum wheels.
The Camry Hybrid offers a standard equipment level similar to the XLE grade and adds a standard Smart Entry and Smart Start system. Push-button start allows drivers to lock, unlock, or start the car just by carrying the Smart Key.
The premium JBL system, standard in the Camry XLE and Hybrid,includes an AM/FM/six-disc in-dash CD changer with eight speakers and an eight-channel, 440-watt digital amplifier for low distortion and faithful reproduction of a wide range of musical types.

Options available on select Camry grades include a power tilt/slide moonroof; heated front seats; voice-command DVD navigation system; leather-trimmed seating; rear spoiler, and the Smart Entry and Smart Start system. When the available voice-activated DVD navigation system is added to the Camry (SE, XLE, Hybrid), the premium JBL audio system integrates that system and comes with a four-disc in-dash CD changer.

In the North American market, he was still one of the best-selling vehicles. In 2011 alone, 308,510 vehicles were sold in the USA. Also of this there was between summer 2004 and mid-2009 again a coupe and convertible variant, which were marketed as Toyota Camry Solara .

Warranty
The 2008 Camry and Camry Hybrid are covered by Toyota's 36-month/36,000-mile basic new-vehicle warranty that applies to all components other than normal wear and maintenance items. Additional 60-month warranties cover the powertrain for 60,000 miles and corrosion perforation with no mileage limitation.
The Camry Hybrid also has an eight-year/ 100,000 mile warranty that covers the hybrid—related components, including the HV battery, battery control module, hybrid control module, and inverter with converter.
