Toyota Corolla sixth generation (E9)

Toyota Corolla sixth generation (E9)

Manufacturer

Toyota

Model code

E9

Model years

1988–1992

Assembly

Worldwide

Body style

  • 2-door coupé
  • 3/5-door hatchback
  • 4-door sedan
  • 5-door liftback
  • 5-door station wagon/van

Layout

Front engine, front-wheel-drive / four-wheel-drive

Engine

  • Petrol:
  • 1295 cc 2E I4
  • 1397 cc 6A-FC I4
  • 1456 cc 3E I4
  • 1498 cc 5A-F/FE/FHE I4
  • 1587 cc 4A-F/FE I4
  • 1587 cc 4A-GE I4
  • 1587 cc 4A-GZE supercharged I4
  • 1762 cc 7A-FE I4
  • Diesel:
  • 1839 cc 1C-II/III I4
  • 1973 cc 2C-III I4

Transmission

  • 4/5-speed manual
  • 3/4-speed automatic

Wheelbase

2,431 mm (95.7 in)

Length

  • Sedan: 4,326 mm (170.3 in)
  • Liftback & Coupé: 4,374 mm (172.2 in)
  • Wagon: 4,369 mm (172.0 in)/4,356 mm (171.5 in)

Width

  • 1,656 mm (65.2 in)
  • 1988 Liftback, Wagon & Coupé: 1,666 mm (65.6 in)

Height

  • 1988 Sedan: 1,326 mm (52.2 in)
  • Liftback & Coupé: 1,260 mm (49.6 in)
  • 1989–1992 Sedan: 1,331 mm (52.4 in)
  • AWD Sedan: 1,346 mm (53.0 in)
  • FWD Wagon: 1,384 mm (54.5 in)
  • AWD Wagon: 1,415 mm (55.7 in)

Curb weight

880–1,200 kg (1,940–2,646 lb)

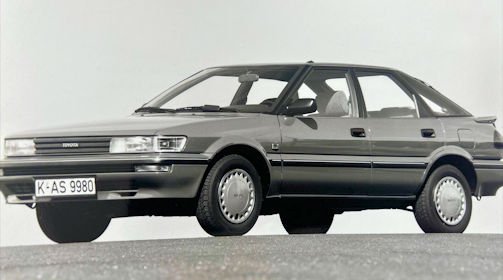

In May 1987, the Corolla E9 debuted as a three- and five-door Compact, four-door notchback, five-door hatchback liftback and five-door station wagon.

The new Corollas had previously exhibited a rather lazy character, especially in the automatic version. This version's pickup and acceleration are now more lively and responsive. It must be said, however, that they were poor before. In terms of suspension and handling, the Corolla sedan obviously still stands out for its suppleness and comfort. However, that the transmission ratios are very well matched to the engine's torque and power curve.

The driving position is very good, and the pedals are impeccably arranged. The controls are smooth and accessible, and it's particularly pleasant to be able to adjust the volume or tune to another station without having to dig around at the bottom of the console.The dashboard is clear and very readable, but the instruments are too dimly lit at night.

Corolla Tercel 4WD

The all-wheel drive wagon was sold from 1988 to 1994  In some markets, the second generation of the four-wheel drive station wagon Toyota Sprinter Carib was offered under the name Corolla Tercel 4WD. In North America, it was called Corolla AllTrac.

Conquest and Tazz

In South Africa and Australia, the three- and five-door Compact models were produced and sold as Toyota Tazz and Conquest .

Standard Equipment:
Base and Deluxe: 1.6-liter DOHC 16-valve PFI 4-cylinder engine, 5-speed manual or 3-speed automatic transmission, power brakes, cloth reclining front bucket seats (vinyl on wagons), split folding rear seatback (wagons),tinted glass, console with storage, door map pockets, cup holder, remote fuel door and decklid releases, trip odometer, coolant temperature gauge, 155SR13 tires. LE adds: 5-speed manual or 4-speed automatic transmission, tachometer, intermittent wipers, digital clock, AM/FM radio, 60/40 folding rear seatbacks, bodyside molding, remote mirrors. driver's seat height and lumbar support adjustments, upgraded trunk trim, 175/70SR13 all-season tires. Deluxe All-Trac models have permanent 4-wheel drive, 5-speed manual or 4-speed automatic transmission. SR5 All-Trac wagon adds: power steering, cruise control, digital clock, AM/FM radio, cloth upholstery, tilt steering column, remote mirrors, intermittent wipers, rear wiper.

Optional Equipment:

  • Power steering, base & Deluxe
  • Air conditioning
  • Convenience Pkg.. Deluxe
  • Remote OS mirrors, digital clock.
  • Power sunroof, Deluxe & LE 4-doors
  • Cruise control & int. wipers (NA base)
  • Alloy wheels, LE 4-door
  • SR5 wagon .
  • AM/FM radio w/4 speakers
  • AM/FM cassette, base & Deluxe 4-doors,
  • All-Trac wagon
  • Deluxe wagons
  • SR5 wagon
  • AM/FM radio w/2 speakers, Deluxe
  • Tilt steering column
  • Power Pkg., LE 4-door, SR5 wagon
  • Power windows and locks, power mirrors.
  • Two-Tone Paint Pkg., SR5 wagon
  • Fabric seats, Deluxe wagon
  • Rear wiper, Deluxe wagon
  • Exterior Appearance Pkg. , LE 4-door,
  • All-Trac wagons .
  • Upgrade Speaker Pkg



Categories
Toyota
Title
Toyota Corolla 6th Gen (1987-1992)

Description

Have you Say: Rate this
Overall Vote
1. Performance & Specification
Built to last?
2. Appearance Overall *Cool factor*
How good it looks ?
Related items
Toyota Corolla | Vehicles launched in 1987 | Japanese Vehicles from 1980s | Japanese Vehicles from 1990s

Technical

Technical
    • Specifications
      Wheelbase, in. 95.7
      Overall length, in. 172.2 2-door notchback 4-door notchback 170.3 5-door notchback 170.7
      Overall width, in. 65.2 49.6
      Overall height, in. .2-door notchback. 49.6 4-door notchback 52.4
      Turn diameter, ft. . 31.5
      Curb weight, lbs. 2-door notchback 2414 4-door notchback 2360
      Cargo vol., cu. ft.2-door notchback 11.7 4-door notchback 12.7
      Fuel capacity, gals. 13.2
      Seating capacity 2-door notchback 4 4-door notchback 5
      Front headroom, in. . 2-door notchback 37.9 4-door notchback 38.4
      Front shoulder room, in. 2-door notchback 52.4 4-door notchback 53.2
      Front legroom, max., in 2-door notchback 42.9 4-door notchback 40.9
      Rear headroom, in. 2-door notchback 35.3 4-door notchback 36.4
      Rear shoulder room, in. 2-door notchback 51.0 4-door notchback 52.7
      Rear legroom, min., in. 2-door notchback 25.8 4-door notchback 31.6

    • Toyota 2E engine Technical details and specifications (1985-1999)

      No. of cylinders 4/OHC
      Capacity 1295 cc
      Firing order 1-3-4-2
      Compression ratio 9,5:1
      Suitable for unleaded petrol Yes
      Minimum octane rating 91 RON
      Fuel system Make Aisan Type 21100-11150
      Ignition coil Make Denso Type 90919
      Distributor Make Denso No. 11030
      Fuel system pressure 0,2-0,3 bar
      Compression pressure 10-13 bar
      Oil pressure 2,5-5,0 bar @ 3000 rpm
      Radiator cap pressure 0,75-1,05 bar
      Thermostat opens 80-84 °C
      Starter motor Make Denso Type 1,0 kW
      Maximum cranking amps 122-149 A
      Alternator/Regulator Make Nippon Denso Type 45A
      Regulated voltage 13,5-15,1V



    Engines

    Petrol

    • 1.3 l, 1280 cc 4 cylinder, 55 kW (75 hp), 2E
    • 1.3 l, 1296 cc 4 cylinder, 55 kW (75 hp), 2E-E (G-Cat)
    • 1.6 l, 1587 cc 4 cylinder, 66 kW (90 hp), 4A-F
    • 1.6 l, 1587 cc 4 cylinders, 77 kW (105 hp), 4A-FE
    • 1.6 l, 1587 cc 4 cylinder, 85 kW (116 hp), 4A-GE
    • 1.6 l, 1587 cc 4 cylinder, 92 kW (125 hp), 4A-GE (Liftback GT-i)
    • 1.6 l, 1587 cc 4 cylinder, 107 kW (145 hp), 4A-GZE, until 1990 in Japan and the USA
    • 1.6 l, 1587 cc 4 cylinder, 122 kW (165 hp), 4A-GZE, from 1990 in Japan and the USA
    • 1.8 l, 1762 cc 4 cylinder, 86 kW (117 hp), 7A-FE, not in Europe

    diesel

    • 1.8 l D, 1840 cc 4 cylinder, 47 kW (64 hp), 1C
    • 1.8 l D, 1840 cc 4 cylinder, 49 kW (67 hp), 1C

    Japanese market chassis:

    • EE90 — Sedan 4-door (DX Custom, TX), Hatchback (XL, STD) 1.3 litre 2E.
    • AE91 — Sedan 4-door (DX, TX, SE, SE Limited G), Hatchback (FX-L, FX-V, FX-G, FX-VS, FX-ZS) 1.5 litre 5A
    • AE92 — 2 door coupé (Levin, Trueno), Sedan 4-door (SE Limited, GT), Hatchback (FX, FX16, FX-GTV, FX-GT), Liftback (Sprinter GT) 1.6 litre 4A
    • AE95 — 4WD sedan 4-door (TX, XE, SE, SE Limited) 1.6 litre 4A
    • CE90 — FWD Sedan 4-door 1.8 litre diesel 1C
    • CE95 — 4WD Sedan 4-door 2.0 litre diesel 2C
    • AE91G — FWD wagon 5-door 1.5 litre 5A
    • AE95G — 4WD wagon 5-door (Carib) 4A
    • EE97G — FWD wagon 5-door 1.3 litre 2E
    • CE97G — FWD wagon 5-door 1.8 litre diesel 1C
    • CE96V — FWD van 5-door 1.8 litre diesel 1C
    • EE96V — FWD van 5-door (Std, XL) 1.3 litre 2E
    • EE98V — FWD van 5-door 1.45 litre 3E

    Japanese market engines:

    • 2E — 1.3 litre 12-valve — 73 PS (54 kW)
    • 3E — 1.45 litre 12-valve — 79 PS (58 kW)
    • 5A-F — 1.5 litre 16-valve DOHC — 85 PS (63 kW)
    • 5A-FE — 1.5 litre 16-valve DOHC, EFI — 94 PS (69 kW)
    • 5A-FHE — 1.5 litre 16-valve DOHC, EFI — 105 PS (77 kW)
    • 4A-FE — 1.6 litre 16-valve DOHC, EFI — narrow valve angle, 100 PS (74 kW)
    • 4A-GE — 1.6 litre 16-valve DOHC, EFI — wide valve angle, 120 PS (88 kW), 140 PS (103 kW) after facelift
    • 4A-GZE — 1.6 L (1587 cc) I4, 16-valve DOHC, EFI, wide valve angle, supercharger, 145 PS (107 kW)
    • 1C-II — 1.8 litre diesel — 64 PS (47 kW)
    • 1C-III — 1.8 litre diesel — 67 PS (49 kW)
    • 2C-III — 2.0 litre diesel — 73 PS (54 kW)

    •

      © Motor car History

Service

    • Toyota 2E engine Maintenance and Service Guide (1985-1999)

      Distributor Contact breaker gap 0,45mm
      Distributor Dwell angle 46-58° (51-64%)
      Spark plugs Original equipment NGK Type BPR6EY-11
      Spark plugs Electrode gap 1,1 mm
      Spark plugs Tighten 18 Nm
      Spark plugs Make Bosch Type WR8DCX
      Spark plugs Make Champion Type RN9YCC4
      Valve clearance -INLET 0,20mm check hot
      Valve clearance -EXHAUST 0,20mm check hot
      Drive belt tension - alternator 5-6mm
      Engine oil grade - normal or moderate climate 10W/30 SAE or 10W/40 SAE
      Engine oil grade - cold climate 5W/30 SAE
      Engine oil grade - hot climate 20W/40 SAE
      Engine oil change with filter 3,2 litres
      Sump drain bolt tighten 25 Nm
      Cooling system 4,6 litres


      Cylinder head Tightening torques (Renew bolts No)
      Stage 1 Tighten 29 Nm
      Stage 2 Tighten 49 Nm
      Stage 3 Tighten 90°

      Gearbox
      5-speed manual gearbox: C150, C152 (turbo model)
      Automatic transmission: A132
      Manual gearbox oil grade 75W-90W SAE
      Manual gearbox oil 2,4 litres
      Automatic transmission fluid Type Dexron II
      Automatic transmission fluid 2,2 litres
      Differential front/Auto 1,4 (AT) litres
      Differential oil grade - rear Dexron II
