Volvo XC60 2nd generation SPA (since 2017)
 | |
Production period: | since 2017 |
Body versions: | Station wagon |
Engines: | Petrol :2.0 liters (140–240 kW) |
Length: | 4688 mm |
Width: | 1902 mm |
Height: | 1658 mm |
Wheelbase: | 2865 mm |
Empty weight: | 1850-2394 kg |
Volvo presented the second generation of the XC60 in March 2017 at the 87th Geneva Motor Show
History
At the start the same motors are used on the drive side as in the larger XC90. The new XC60 is available with all-wheel drive and 8-speed automatic transmission, but the lower-performance versions also come with front-wheel drive and manual transmission. Performance-enhanced “Polestar” versions have been available since December 2018 at an additional cost. Stars in the Euro NCAP Crash Test 5 out of 5 stars
The SPA has been designed to guarantee an increase in the safety standards that the Swedish brand usually adheres to; in fact, this platform favours the implementation of systems and technologies (radar, sensors, cameras) that favour level 2 autonomous driving.

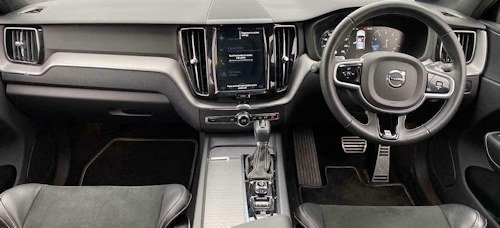

the car features luxurious, high-technology interior, digital dials, a portrait-oriented touchscreen info system.
The Volvo XC60 is available at first in 3 main configurations, each of which is designed to satisfy a specific category of customers:
Momentum: basic equipment equipped with many safety features right from the start, available in the business plus version with senses connect navigation system.
R-Design: the sportiest version of the entire range with purely sporty accessories.
Inscription: more luxurious set-up featuring exclusive, typically Scandinavian design elements.
All engines planned for the XC60 are 2.0-liter turbocharged four-cylinder engines. It includes two petrol engines: 320 HP for the T6, 254 HP for the T5; three diesel engines: 150 HP for the D3, 190 HP for the D4 and 235 HP for the D5. The most powerful model of the XC60 has two engines, that is, it is a plug-in hybrid, which combines the 320 hp 2.0 with an 87-kW electric motor: the total power reaches 407 hp and 421 hp for the Polestar version.
Description
Technical
-
Volvo XC60 2nd gen Technical data (2017-)
Petrol engines
T4
B4 mild hybrid
T4 Polestar Performance
B5 mild hybrid
B5 mild hybrid AWD
Construction period:
12/2018–03/2020
since 03/2020
03 / 2019–03 / 2020
since 08/2019
Engine type:
Four-cylinder gasoline engine in in-line design and direct injection
Four-cylinder in-line petrol engine with direct injection, mild hybrid
Four-cylinder gasoline engine in in-line design and direct injection
Four-cylinder in-line petrol engine with direct injection, mild hybrid
Engine charging:
turbocharger
Displacement:
1969 cc
Compression ratio:
10.8: 1
max. power
at min −1 :140 kW (190 PS) at 5000 rpm
145 kW (197 hp) at 4800-5400 rpm
155 kW (210 PS) at 5000 rpm
184 kW (250 hp) at 5400-5700 rpm
Max. torque
at min -1 :300 Nm at 1700-4000 rpm
360 Nm at 1700-4000 rpm
350 Nm at 1800-4800 rpm
Drive type, as standard:
Front wheel drive
All-wheel drive (AWD)
Gearbox, as standard:
8-speed Geartronic
Gearbox, optional:
-
Acceleration,
0-100 km / h:7.9 s
8.1 s
7.9 s
6.9 s
Top speed:
205 km / h
180 km / h (electronically limited)
205 km / h
210 km / h 1
Empty weight:
1927 kg
1869 kg
1927 kg
1850 kg
1911 kg
Fuel consumption
over 100 km (combined,
according to EEC guidelines):7.1–7.3 l super
6.6–6.7 l super
7.1–7.3 l super
6.5–6.8 l super
7.0–7.2 l super
CO 2 emissions,
combined:165-169 g / km
149-152 g / km
165-169 g / km
149-156 g / km
160-165 g / km
Tank capacity:
60 l
71 l
60 l
71 l
Emission standard according to
EU classification:Euro 6d-TEMP
Euro 6d
Euro 6d-TEMP
Euro 6d
T5
T5 AWD
T5 Polestar Performance
T5 AWD Polestar Performance
T5 AWD
B6 AWD
Construction period:
10/2017–08/2019
12/2018–08/2019
07/2017–10/2017
since 08/2019
Engine type:
Four-cylinder gasoline engine in in-line design and direct injection
Four-cylinder in-line petrol engine with direct injection, mild hybrid
Engine charging:
turbocharger
Displacement:
1969 cc
Compression ratio:
10.8: 1
max. power
at min −1 :184 kW (250 PS) at 5500 rpm
186 kW (253 hp) at 5500 rpm
187 kW (254 hp) at 5500 rpm
220 kW (300 PS) at 5400 rpm
Max. torque
at min -1 :350 Nm at 1800-4800 rpm
400 Nm at 1800-4800 rpm
350 Nm at 1500-4800 rpm
420 Nm at 2100-4800 rpm
400 Nm at 2200-5100 rpm
Drive type, as standard:
Front wheel drive
All-wheel drive (AWD)
Front wheel drive
All-wheel drive (AWD)
Gearbox, as standard:
8-speed Geartronic
Gearbox, optional:
-
Acceleration,
0-100 km / h:6.9 s
6.8 s
6.9 s
6.8 s
5.9 s
Top speed:
210 km / h
220 km / h
210 km / h
220 km / h
230 km / h 1
Empty weight:
1915 kg
1964 kg
1915 kg
1964 kg
2081 kg
1905 kg
Fuel consumption
over 100 km (combined,
according to EEC guidelines):7.1–7.3 l super
7.3–7.7 l super
7.1–7.3 l super
7.3–7.7 l super
7.3 l super
7.5–7.8 l super
CO 2 emissions,
combined:169-178 g / km
165-169 g / km
169-178 g / km
167 g / km
174-181 g / km
Tank capacity:
60 l
71 l
Emission standard according to
EU classification:until 01/2018: Euro 6b
(since 02/2018: Euro 6d-TEMP)Euro 6d-TEMP
Euro 6b
Euro 6d
T6 AWD
T6 AWD Polestar Performance
T6 Recharge AWD
T8 TWIN ENGINE AWD
T8 TWIN ENGINE AWD Polestar Performance
T8 TWIN ENGINE AWD
Construction period:
10/2017–08/2019
07/2017–10/2017
12/2018–08/2019
since 03/2020
since 02/2018
since 12/2018
07/2017 - 02/2018
Engine type:
Four-cylinder gasoline engine in in-line design and direct injection
Plug-in hybrid (gasoline / electric) four-cylinder gasoline engine in in-line design and direct injection
Engine charging:
turbocharger
Turbocharger and compressor
Displacement:
1969 cc
Compression ratio:
10.8: 1
10.3: 1
max. power
at min −1 :228 kW (310 hp) at 5700 rpm
235 kW (320 hp) at 5700 rpm
240 kW (326 hp) at 5700 rpm
186 kW (253 PS) at 5500 rpm + 65 kW (87 PS)
223 kW (303 PS) at 6000 rpm + 65 kW (87 PS)
233 kW (318 PS) at 6000 rpm + 65 kW (87 PS)
235 kW (320 PS) at 5700 rpm + 65 kW (87 PS)
Max. torque
at min -1 :400 Nm at 2200-5400 rpm
430 Nm at 2200-5400 rpm
350 Nm at 1700-5000 / min + 240 Nm at 0-3000 / min
400 Nm at 2200-4800 / min + 240 Nm at 0-3000 / min
430 Nm at 4500 rpm + 240 Nm at 0-3000 rpm
400 Nm at 2200-5400 / min + 240 Nm at 0-3000 / min
Drive type, as standard:
All-wheel drive (AWD)
Gearbox, as standard:
8-speed Geartronic
Gearbox, optional:
-
Acceleration,
0-100 km / h:5.9 s
5.5 s
5.4 s
5.3 s
Top speed:
230 km / h
180 km / h (electronically limited)
230 km / h 1
230 km / h
Empty weight:
2003 kg
2162 kg
2003 kg
2169 kg
2223 kg
2394 kg
Fuel consumption
over 100 km (combined,
according to EEC guidelines):7.5–7.8 l super
7.7 l super
7.5–7.8 l super
2.0 l super
2.3–2.4 l super
2.1 l super
CO 2 emissions,
combined:176 g / km
174-181 g / km
47 g / km
51-55 g / km
49 g / km
Tank capacity:
71 l
70 l
50 l
Emission standard according to
EU classification:until 01/2018: Euro 6b
(since 02/2018: Euro 6d-TEMP)Euro 6b
Euro 6d-TEMP
Euro 6d
Euro 6d-TEMP
(since 03/2020: Euro 6d-TEMP)Euro 6b
1 since 05/2020: 180 km / h (electronically limited)
Diesel engines
D3
D4
D4 AWD
B4 mild hybrid
B4 mild hybrid AWD
D4 Polestar Performance
D4 AWD Polestar Performance
D5 AWD
B5 mild hybrid AWD
D5 AWD Polestar Performance
Construction period:
since 02/2018
07/2017–08/2019
since 07/2020
since 08/2019
12/2018–06/2020
12/2018–08/2019
07/2017–08/2019
since 08/2019
12/2018–03/2020
Engine type:
Four-cylinder, in-line diesel engine and common rail injection
Engine charging :
Bi-turbocharger
Bi-turbocharger with VTG
Displacement:
1969 cc
Compression ratio:
15.8: 1
max. power
at min −1 :110 kW (150 PS) at 4250 rpm
140 kW (190 PS) at 4250 rpm
145 kW (197 hp) at 4000 rpm
147 kW (200 PS) at 4250 rpm
173 kW (235 hp) at 4000 rpm
177 kW (240 PS) at 4000 rpm
Max. torque
at min -1 :350 Nm at 1500-2500 rpm
400 Nm at 1750-2500 rpm
420 Nm at 1750-2750 rpm
440 Nm at 1750-2500 rpm
480 Nm at 1750-2250 rpm
500 Nm at 1750-2250 rpm
Drive type, as standard:
Front wheel drive
All-wheel drive (AWD)
Front wheel drive
All-wheel drive (AWD)
Front wheel drive
All-wheel drive (AWD)
Gearbox, as standard:
6-speed manual transmission
8-speed Geartronic
6-speed manual transmission
8-speed Geartronic
Gearbox, optional:
-
[8-speed Geartronic]
-
[8-speed Geartronic]
-
Acceleration,
0-100 km / h:10.2 s
8.8 s
[8.4 s]8.4 s
8.3 s
8.8 s
[8.4 s]7.2 s
7.1 s
7.2 s
Top speed:
190 km / h 1
205 km / h 1
205 km / h
180 km / h
205 km / h 1
205 km / h
220 km / h
220 km / h 1
220 km / h
Empty weight:
1920 kg
1921 kg
[1947 kg]1971 kg
[2020 kg]1791 kg
1950 kg
1921 kg
[1947 kg]1971 kg
[2020 kg]2149 kg
1950 kg
2149 kg
Fuel consumption
over 100 km (combined,
according to EEC guidelines):5.0-5.2 l diesel
4.9–5.1 l diesel
[5.1–5.2 l diesel]5.3–5.5 l diesel
[5.5–5.8 l diesel]4.9-5.0 l diesel
5.4-5.8 l diesel
4.9–5.1 l diesel
[5.1–5.2 l diesel]5.3–5.5 l diesel
[5.5–5.8 l diesel]5.6–6.0 l diesel
5.4-5.8 l diesel
5.6–6.0 l diesel
CO 2 emissions,
combined:131-136 g / km
129–135 g / km
[133–137 g / km]139–145 g / km
[144–153 g / km]129-132 g / km
142-151 g / km
129–135 g / km
[133–137 g / km]139–145 g / km
[144–153 g / km]147-158 g / km
142-151 g / km
147-158 g / km
Tank capacity:
55 l
60 l
71 l
55 l
60 l
71 l
Emission standard according to
EU classification:Euro 6d-TEMP
until 10/2017: Euro 6b
(since 11/2017: Euro 6d-TEMP)Euro 6d
Euro 6d-TEMP
(since 07/2020: Euro 6d)Euro 6d-TEMP
until 10/2017: Euro 6b
(since 11/2017: Euro 6d-TEMP)Euro 6d-TEMP
(since 07/2020: Euro 6d)Euro 6d-TEMP
1 since 05/2020: 180 km / h (electronically limited)
