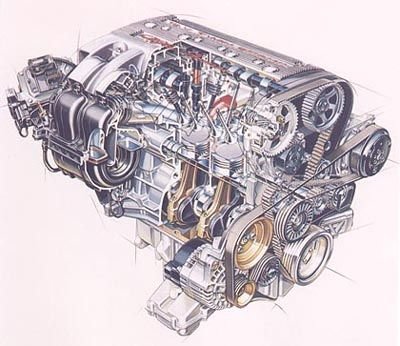

Alfa Romeo Twin Spark engine

Overview
Manufacturer	Alfa Romeo
Production	1986–2009
Combustion chamber
Configuration	DOHC 2/4-valve I4
Fuel	petrol
Displacement	1.4 L 1.6 L 1.7 L 1.8 L 2.0 L
Cylinder block alloy	aluminium alloy and cast-iron
Cylinder head alloy	aluminium alloy
Output
Power output	76 kW (103 PS) - 114 kW (155 PS)
Chronology
Predecessor	Alfa Romeo Twin Cam
Successor	Alfa Romeo JTS engine

Alfa Romeo Twin Spark (TS) technology was used for the first time in the Alfa Romeo Grand Prix car in 1914. In the early 1960s it was used in their race cars (GTA, TZ) to enable it to achieve a higher power output from its engines. And in the early and middle 1980s, Alfa Romeo incorporated this technology into their road cars to enhance their performance and to comply with stricter emission controls.

The 'Twin Spark' engines

In the current Alfa Romeo world the "Twin Spark" name usually refers to the dual ignition engines installed in Alfa Romeo cars. The 8-valve engine was fitted initially to the Alfa Romeo 75 but also the Alfa Romeo 164 and Alfa Romeo 155. The 16-valve engines appeared in the Alfa Romeo 145, Alfa Romeo 146, Alfa Romeo 155, Alfa Romeo 156, Alfa Romeo 147, Alfa Romeo 166, Alfa Romeo GTV & Spider and even Alfa Romeo GT models.

The TS series engines are all '4-cylinder inline' with twin cam (DOHC) shafts. The original 8-valve engine featured a light alloy (Si enhanced alu alloy) block + head, wet-cooled iron cylinder liners and the camshafts were driven by single double row timing chain. Similar design to the earlier and famous Alfa Romeo DOHC engines, but with narrower valve angle on this model.

The later 16-valve engines had a heavier cast-iron block engine, with an alloy head, and the camshafts were belt driven. The Twin Spark name comes from the fact that there are two spark plugs per cylinder. The block was Fiat sourced. It was cast iron for its higher beam strength, less complexity and hence lower production costs. When new, these engines were notable for their high efficiency as demonstrated by the BMEP (brake mean effective pressures) exerted upon the piston crowns.

The two sparks plugs on the 8V Alfa Twin Spark engines fire at the same time and are symmetrically placed around the vertical line passing through the intake and exhaust valve centers. The flame front travels less distance which allows less ignition advance to be used. Also, leaner mixtures can also be tolerated for better fuel economy. The 8V engine also has 8 identical spark plugs. There is no room for a centrally positioned spark plug due to 2-valve design which uses rather large 44 mm diameter inlet valve on the 2.0 engine. On the newer models using the 8V engine the system uses the popular wasted spark system as well. (as also used in Ford EDIS), combining one coil for 2 plugs on opposite phase sister cylinders like 1-4, 2-3 on 4 cylinder engine. (similar setup with 3 coils for 6 cylinders is used on Alfa V6 engines).

8V twinspark head view

On the Alfa 16V Twin Spark engines one spark plug is ideally located in the centre of the cylinder, as is common in virtually all multi-valve configuration engines. In order to accommodate a second spark plug in the 4-valve combustion chamber, a smaller diameter spark plug is located the very edge of the combustion chamber between an inlet and an exhaust valve. The location of the additional plug means that its impact on maximum performance is marginal. However the engine is able to idle smoothly in very lean conditions (up to 18:1 AFR), this suggests the addition plug is here to improve combustion efficiency under light loads. The next generation Alfa fours, the JTS engines lost the second plugs gained direct injection and increased performance.

The TS 16V engines, 1.6, 1.8 and 2.0, all use a 10 mm diameter and a 14 mm diameter long life platinum electrode spark plug per cylinder. The spark plugs have a replacement interval of 100,000 kilometres (62,000 mi).

The 16 Valve engine features individual 'coil over plug' ignition where the timing of the ignition is controlled directly by the Bosch engine management system, with each coil firing two spark plugs simultaneously. On the earlier CF1 and CF2 16 valve engines each coil fired the plug below it and (via a short plug lead) a plug in the other cylinder that was 360° crankshaft rotation out of phase (i.e. one coil would fire a spark plug in the cylinder nearing the top of the compression stroke, and also the a spark plug in the cylinder nearing the top of the exhaust stroke (in a 4-cylinder 4-stroke engine with a 180° crank pistons 1 & 4 and pistons 2 & 3 rise and fall as pairs). So in this configuration each coil services two spark plugs and each cylinder is serviced by two coils. In case of a coil failure one of two plugs would still work.

Ignition systems that fire a plug in a cylinder on its exhaust stroke are referred to as a "wasted spark" ignition system; as the spark ignites nothing and so is 'wasted'. Wasted spark systems are generally used as a production economy as half the number of coils are required (which consequently have to fire twice as many times), e.g. a four cylinder four-stroke engine (with a single plug per cylinder) requires only 2 coils alternately firing every 180° of crankshaft rotation, each coil firing every 360° crank rotation to fire all four cylinders. In the 16 Valve Twin Spark 4 coils are required by the eight plugs, so production economy was unlikely to be a factor in the adoption of a wasted spark system.

On the later CF3 (2001 on Euro 3 emissions standard) 16v TS the four coils fire both spark plugs in one cylinder (so not 1 & 4 and 2 & 3 as pairs), and may not be a wasted spark system. The potential benefits of each coil being associated with one cylinder being: halving the firing frequency - the coil is only required to fire every 720° crankshaft rotation rather than every 360° crankshaft rotation. This would double coil saturation time, reducing coil load and improving spark quality at high rpm. Some Bosch engine management system have the ability to advance and retard ignition timing in individual cylinders, which would be impossible in the CF1 and CF2 configurations as each cylinder is serviced by two coils, but could be used in the CF3 setup.

The engines also incorporate two other devices to enhance the performance under operation, the Camshaft Phase Variator and the Variable Intake Length Control (or Modular Inlet Manifold in Alfaspeak) on the later (plastic cam cover) 1.8- and 2.0-litre versions. Where both these variable systems are deployed they are controlled in tandem by the Bosch Motronic Engine Management ECU in response to rpm, load, and throttle position. According Fiat Auto S.p.A DTE electronic service documentation for the Alfa Romeo 156 Twinspark (1.8/2.0)...

"To optimise the quantity of air drawn into the engine the control unit checks: inlet timing on two angle positions (and) geometry of inlet ducts at two lengths (only 1.8/2.0 TS). At maximum torque speed the control unit sets the "open" phase: cam advanced by 25°, inlet casing long ducts (Only 1.8/2.0 TS). At the maximum power speed the control unit sets the "closed" phase: cam in normal position, inlet box short ducts. At idle speed the control unit sets the "closed" phase: cam in normal position and inlet box short ducts. In the other engine operating conditions, the control unit selects the most suitable configuration to optimise performance - consumption - emissions. During overrunning, the inlet ducts of the box are always short."

The advancing of the inlet camshaft opens and closes the intake valves earlier in the inlet cycle. This allows the filling of the cylinders with air/fuel mix to begin and end earlier when in advanced position thus starting to compress the mix earlier. Or the compression phase to begin later (when in not advanced cam state) by delaying the intake valve closure. The actual compression of the gases can begin only after the closure of the inlet valves so by varying the intake valve closure moment (with the variator) the effective compression ratio can be reduced in not-advanced position. This has benefits as a way to reduce the effective compression ratio but still keep the expansion ratio as before so to lower the compression phase mechanical losses. When the intake valve is also opened earlier in relation to the closing of the exhaust valves, the valve overlap (the period both inlet and exhaust valves are simultaneously open) is also increased at this mode. This promotes the scavenging effect of the exiting exhaust which causes a partial vacuum in the cylinder to further assist in filling the cylinder with a fresh charge. Also this increased overlap, may cause part of the exhaust gases to re-enter in this way make it function like internal EGR.

As with similar inlet cam phasing systems like BMW VANOS the phasing is returned to the retarded state at higher rpm to improve power and efficiency as inlet gas dynamics change with rpm. The short inlet ducts being tuned to the higher frequency and thus shorter inlet duct pressure wave.

On 8V engines the valve overlap and intake open duration are quite big. These engines hardly idle with the variator at On position so on these models it had the meaning also to enhance lower speed operation. On the 16V engines the camshaft variator is used to enhance the performance/emissions but also might be the source to the common 'diesel noise' problem often seen on high mileage used models which used the earlier internals of the variator. The same variator system is also used in many Fiat/Lancia engines like one used in Lancia Kappa 5-cylinder engine, some Fiat Bravo/Fiat Marea engines, Fiat Barchetta, Fiat Coupe, Fiat Stilo etc. models.

Cam timings:

8V engine:

Intake cam phase shift angle is 30 degrees (camshaft degrees).

• Intake: open 30/60 BTDC, close 98/68 ABDC, intake total angle: 308 degrees
• Exhaust: open 67,50 BBDC, close 34 ATDC, exhaust duration: 281,50 degrees
• Overlap: 64/94 degrees

16V engines

alfa 155 2.0 16v:

• Intake: open 0/25 BTDC, close 55/30 ABDC, intake total angle: 235 degrees
• Exhaust: open 50 BBDC, close 8 ATDC, exhaust duration: 238 degrees
• Overlap: 8/33 degrees

On 1.4, 1.6 16V engines (as used in alfa 145/146) the timing is less like:

• Intake: open BTDC : 0/17 (1.4&1.6), open 0/22 (1.8, 2.0L), close ABDC: 40/15 (1.4), close 46/21 (1.6), close 51/26 (1.8,2.0)
• Exhaust: open BBDC: 26 degrees (1.4, 1.6), 47 degrees (1.8,2.0), close ATDC: 1 degree (1.4, 1.6), 4 degrees (1.8, 2.0)

Modular Inlet Manifold

The Alfa Romeo Modular Inlet Manifold is a variable intake system fitted to the 1800 and 2000 cc TS engines. It operates by switching between two separate air intake runners of different lengths (one pair for each cylinder) to either shorten or lengthen the path from the end of the intake runner (within the plenum) to the inlet valves. The system is manifold vacuum-assisted servo-operated, and controlled directly by the Bosch engine management system, as described above. Tuned-length inlet runners operate by using the harmonics created by within the inlet tract/runner by the opening and closing of the inlet valves and flow of gas during the inlet cycle. Each runner is effectively a velocity stack which reflects a positive pressure wave back down the inlet runner to maximise cylinder filling with fuel/air mix. The rpm band over which the pressure wave arrives at the open inlet valves and is able to assist in the cylinder filling is set by the length of the runner and is a relatively narrow. Swapping between runners of differing length broadens the rpm band over which benefits of the tuned inlet runners are achieved, leading to a flatter torque curve and consequently more power across the rev range.

In addition air-flow within the stock intake tubing between the throttle plate and airbox has also been maximised. This includes an 'inlet trumpet' at the end of the intake pipe within the airbox (often referred to as the "cone" by Alfisti) which is designed to improve airflow and fuel metering by reducing turbulence, (and may reflect positive pressure waves back down the intake tube). There is much discussion on Alfisti online forums about improving performance by removing the trumpet or 'de-coning' as it is often referred to, as the trumpet is thought by some to restrict air flow due to its small inlet cross-section. While "de-coning" results improvement in inlet cross-section any benefit is likely to be off set by the 'pinch effect' of an unradiused inlet, which is 0.6 - 0.5 the efficiency of a trumpet radius on the same diameter inlet

Variable valve timing

Variable valve timing gave the Twin Spark engine very good performance for its cubic capacity, but it is one of the weaker areas of the 16-valve engine. The original variator that controls the cam timing is prone to wear or jam, although replacement part carries a different part number and has improved reliability. Symptoms are a slight loss of performance and a diesel type rattle from the top of the engine, which appears at startup and gradually lasts for longer. It is therefore advisable to get the variator changed regardless of its apparent condition at the 36,000 mile (60,000 km) cambelt replacement. The variator problem is not often seen in the earlier 8V Twin Spark version, as these use a different type of cam timing variator system, this is also the case for later 16v versions used in the Alfa Romeo 156 and the 147 where the weak variator was addressed.

8-valve Twin Spark engines

• 1.7 L 1,749 cc 84 kW (115 PS) @6000 rpm, 146 N·m (108 lb·ft) @3500 rpm
• 1.8 L 1,773 cc 98 kW (129 PS) @6000 rpm, 165 N·m (122 lb·ft) @5000 rpm
• 2.0 L 1,962 cc 109 kW (148 PS)@5800 rpm, 186 N·m (137 lb·ft) @3000 rpm
• 2.0 L 1,995 cc 104 kW (143 PS) @6000 rpm, 187 N·m (138 lb·ft) @5000 rpm (cat.)

applications:

• Alfa Romeo 75
• Alfa Romeo 155
• Alfa Romeo 164

16-valve Twin Spark engines

• 1.4 L 1,370 cc 76 kW (103 PS) 6300 rpm, 124 N·m (91 lb·ft) @4600 rpm
• 1.6 L 1,598 cc 77-88 kW (105-120 PS) @5600-6200 rpm, 140-146 N·m (103–108 lb·ft) @4200-4500 rpm
• 1.8 L 1,747 cc 103-106 kW (140-144 PS) @6500 rpm, 163-169 N·m (120–125 lb·ft) @3500-3900 rpm
• 2.0 L 1,970 cc 110-114 kW (150-155 PS) @6400 rpm, 181-187 N·m (133–138 lb·ft) @3500-3800 rpm

applications:

• Alfa Romeo 145
• Alfa Romeo 146
• Alfa Romeo 155
• Alfa Romeo GTV and Spider (Type 916)
• Alfa Romeo 156
• Alfa Romeo 147
• Alfa Romeo 166
• Alfa Romeo GT
