Audi 100 C1 First Generation

Audi 100 C1 First Generation  motor car history

Production 1970–1989 827.474 built four-door: 796,787 Coupé S: 30.687
Assembly Neckarsulm, Baden-Württemberg, Germany Ingolstadt, Bavaria, Germany Wolfsburg, Lower Saxony, Germany
Body style 4-door saloon/sedan 2-door coupé 2-door saloon
Layout FF layout
Platform Volkswagen Group C1 platform
Engine 1.8 L I4 1.9 L I4
Transmission 4-speed manual all-synchromeshautomatic optional
Wheelbase 105.3 in (2,675 mm) (coupe)
Length 173.2 in (4,399 mm)
Width 68 in (1,727 mm)
Height 55.8 in (1,417 mm)
Curb weight 2,401 lb (1,089 kg) (coupe)
Designer(s) Ludwig Kraus


The Audi 100 was shown to the press on 26 November 1968. Its name originally denoting a power output of 100 PS (74 kW; 99 hp), the Audi 100 was the company's largest car since the revival of the Audi brand by Volkswagen in 1965.

The C1 platform spawned several variants: the Audi 100 two- and four-door saloons.

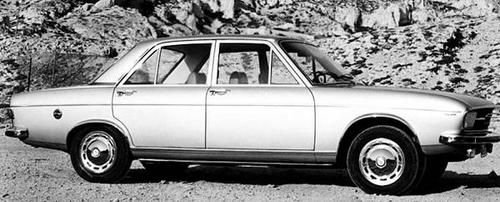

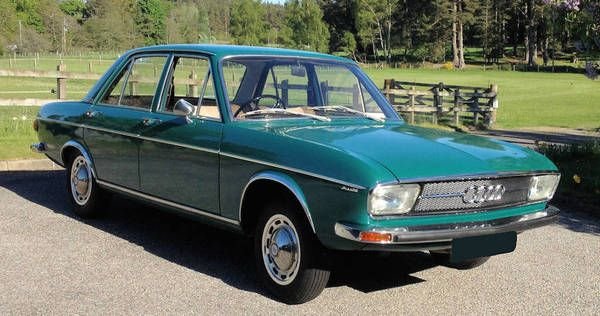

Audi 100 C1 First Generation  saloon 1972 side

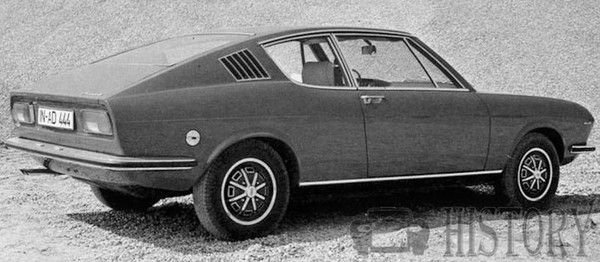

And the Audi 100 Coupé S, a stylish fastback coupé, which bore a remarkable resemblance to the Aston Martin DBS released a year earlier, especially at the rear end, including details such as the louvres behind the rear side windows and shape of the rear light clusters.

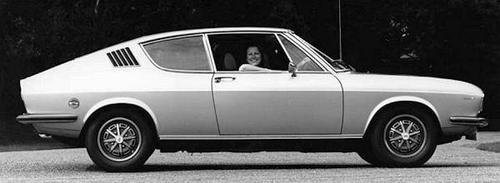

Audi 100 C1 First Generation coupe 1970

Audi followed up the introduction of the four-door saloon in November 1968 with a two-door saloon in October 1969 and the 100 Coupé S in autumn 1970. The cars' four-cylinder engines originally came in base (100, 80 PS or 59 kW; 79 hp), 100 S (1.8 litre, 90 PS or 66 kW; 89 hp) and 100 LS (1.8 litre, 100 PS or 74 kW; 99 hp) guise, while the Coupé was driven by a bored-out 1.9 litre developing 115 PS (85 kW; 113 hp). From April 1970 the 100 LS could be ordered with a three-speed automatic transmission sourced from Volkswagen.

PERFORMANCE: Audi 100 1.8L

  • Engine capacity: 107.40 cu in, 1,760 cu cm
  • Fuel consumption: 31.7 mlimp gal, 26.4 ml US gal, 8.9 1 x 100 km
  • Max speed:105.6 mph, 170 kmlh
  • Max power (SAE): 115 hp at 5,500 rpm
  • Max torque (SAE): 120 1b ft, 16.5 kg m at 3,200 rpm
  • Max engine rpm: 6,000
  • Specific power: 65.3 hp/l
  • Power-weight ratio: 20.1 lb/hp, 9.1 kg/hp
  • Acceleration: 0—50 mph (0—80 km/h) 8 sec

The Audi 100 enjoyed a level of commercial success for which the company had not planned. As a distinguished German commentator pointed out, the rough engine note was unlikely to discourage buyers whose first car had been a Volkswagen and who aspired to drive a diesel powered (pre-turbo) Mercedes-Benz. Despite running the Ingolstadt production line at full capacity, supply fell short of demand to such an extent that during the summer of 1970 an additional production line for Audi 100s was set up in Volkswagen's own Wolfsburg plant, which made it the first water-cooled car to be produced in Germany's (and by some criteria the world's) largest car plant.

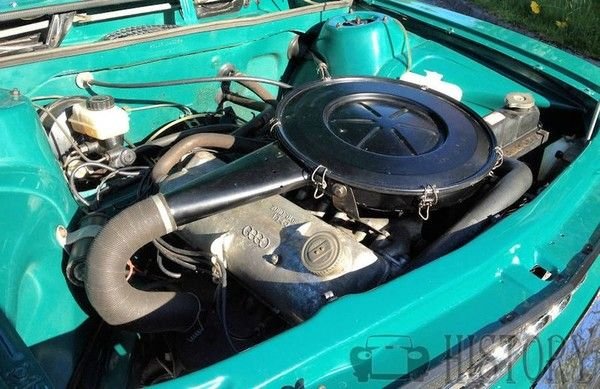

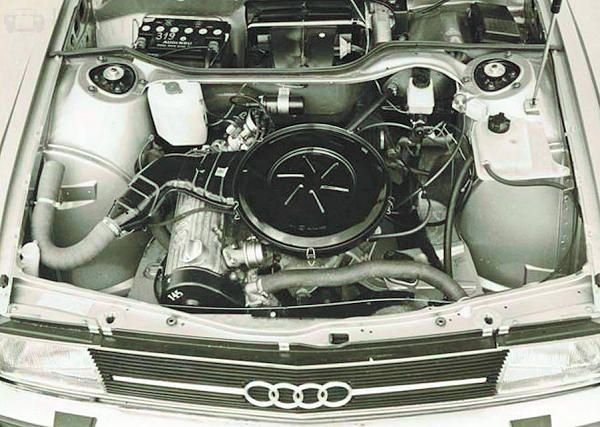

Audi 100 C1 First Generation engine view

Starting with model year 1972 the 80 and 90 PS versions were replaced by a new regular-petrol-variant of the 1.8 litre engine developing 85 PS (84 hp/63 kW); at the same time, the 100 GL was introduced that featured the 1.9 liter engine formerly used in the Coupé S only.

In March 1971 the 500,000th Audi was produced. By now the Audi 100 had become the most commercially successful model in the company's history, so it is unsurprising that the car in question was an Audi 100 produced at the Ingolstadt plant.

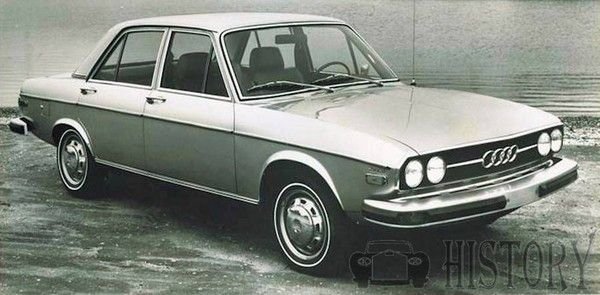

In September 1973 the 100 received a minor facelift with a somewhat smaller grille and reshuffled taillight lens patterns. The rear torsion bar was replaced by coil springs. For model year 1975 the base 100 was re-christened the 100 L and received a 1.6 litre four-cylinder engine (coming out of the Audi 80).

A four-wheel drive prototype of the Audi 100 C1 was built in 1976, long before the appearance of the quattro.

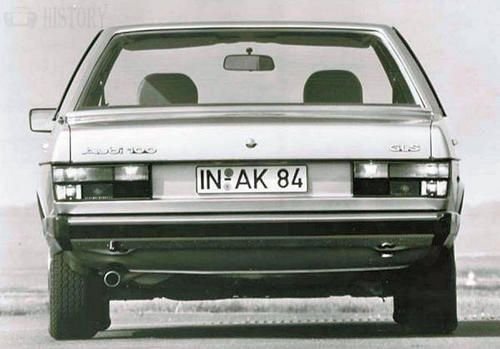

 Audi 100 C1 First Generation 1976 rear
Related items
Vehicles launched in 1968 | Audi 100 | Audi Quattro

Technical

Technical
  • Audi 100 C1 1st Gen Technical details and specifications (1968-1976)


    ENGINE: 1.8L
    location front
    4 stroke; cylinders: 4, in line
    bore and stroke: 3.21 x 3.32 in, 81.5 x 84.4 mm
    engine capacity: 107.40 cu in, 1,760 cu cm
    compression ratio: 10.2
    cylinder block: cast iron
    camshafts: 1, side
    lubrication: gear pump, full flow filter
    carburation: 1 Solex 32T DID downdraught twin barrel carburettor
    fuel feed: mechanical pump
    cooling system: water

    TRANSMISSION
    driving wheels: front
    clutch: single dry plate
    gearbox: mechanical; gears: 4 + reverse
    synchromesh gears: all
    gear ratios:1st 3.400 2nd 1.944, 3rd 1.360, 4th 0.966, rev 3.100
    gear lever: steering column
    final drive: spiral bevel
    axle ratio: 3.888

    CHASSIS
    type integral
    front suspension: independent, wishbones, lower leading arms, longitudinal torsion bars, coil springs, anti-roll bar, telescopic dampers
    rear suspension: rigid axle, swinging longitudinal trailing arms, Panhard transverse linkage bar, transverse torsion bars, anti-roll bar, telescopic dampers.

    STEERING
    rack-and-pinion
    turns of steering wheel lock to lock: 4.
    turning circle (between walls): 36.7 ft, 11.2 m

    BRAKES
    front disc (diameter 11.02 in, 280 mm), rear drum, dual circuit, servo
    brake area rubbed by linings: front 16.28 sq in, 105 sq cm
    brake area rubbed by linings: rear 45.27 sq in, 292 sq cm,
    brake area rubbed by linings: total 61.55 sq in, 397 sq cm.

    ELECTRICAL EQUIPMENT
    voltage: 12 V
    battery: 45 Ah
    generator type: alternator, 490 W
    ignition distributor: Bosch

    DIMENSIONS AND WEIGHT
    wheel base: 105.31 in, 2,675 mm
    overall width: 68.07 in, 1,729 mm
    overall height: 54.65 in, 1,388 mm
    ground clearance: 6.42 in, 163 mm
    dry weight: 2,315 1b, 1,050 kg
    distribution of weight: 50% front axle, 50% rear axle

    © Motor car History

Service

Service
  • Audi 100 C1 1st Gen Maintenance and Service Guide (1968-1976)

    Gearbox and final drive oil: 3.52 imp pt, 4.23 US pt, 2 1, SAE 80, change every 18,600 miles, 30,000 km
    Greasing: none
    Normal tyre pressure: front 26 psi, 1.8 atm, rear 26 psi, 1.8 atm.
    Width of rims: 4.5"
    Tyres: 165 x 14
    Fuel tank capacity: 12.8 imp gal, 15.3 US gal
    Carrying capacity: 1,058 1b, 480 kg

    1.8L
    Fuel: 98-100 oct petrol
    Engine oil change: 7.04 imp pt. 8.46 US pt, 4 1, SAE 10W-30, change every 3,100 miles, 5,000 km
    Total lubricating system capacity: 7.04 imp pt, 8.46 US pt
    Tappet clearances: inlet 0.004 in, 0.10 mm, exhaust 0.014 in, 0.35 mm
    Valve timing: inlet opens 8° before tdc and closes 40° after bdc, exhaust opens 43° before bdc and closes 7° after tdc
    Cooling system capacity: 13.20 imp pt, 15.85 US pt
