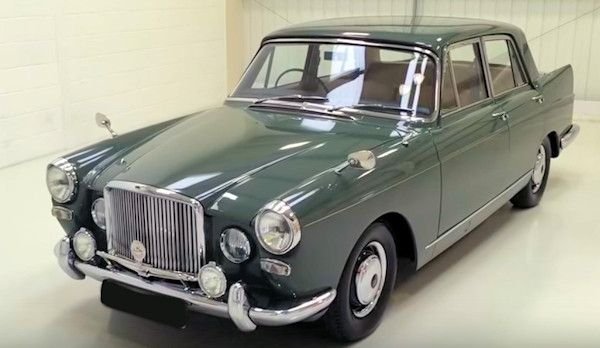

Austin Princess 3-litre Vanden Plas

  1959 to 1964
Austin Princess 3-litre Vanden Plas history
Overview
Production1959-1964 12,703 made
Body and chassis
Body style4-door saloon
Powertrain
Engine2.9 L C-Series I6
Dimensions
Wheelbase84 in (2,134 mm) 1959 - 1961 86 in (2,184 mm) 1961 - 1964
Length187.75 in (4,769 mm)
Width68.5 in (1,740 mm)
Height59 in (1,499 mm)



In October 1959 a new Austin A99 Westminster-based model was launched under the name Princess 3-litre. From July 1960 these vehicles bore the Vanden Plas name which became a badge-engineered brand in its own right (rather than being known as coachbuilder for the cars of other manufacturers). The car was a great deal smaller and less than 44 per cent of the price of the previous Princess IV Saloon and was instead largely identical to the Austin A99 Westminster and other models using the same Pininfarina-designed bodyshell. It featured a new distinctive Vanden Plas grille (fairly square, with a thick surround and vertical slats), round headlamps, and horn grilles on the front. The interior was lavish in typical Vanden Plas style, featuring burr walnut wood trim, leather seats and panels, and high-quality carpeting. A division between the driver and the rear compartment was an optional extra. Power was a 3-litre unit developing 108 hp (81 kW).

Austin Princess 3-litre Vanden Plas range

A 3-litre Vanden Plas Princess with automatic transmission was tested by the British magazine The Motor in 1961 and had a top speed of 99.3 mph (159.8 km/h) and could accelerate from 0-60 mph (97 km/h) in 16.1 seconds. A fuel consumption of 21.1 miles per imperial gallon (13.4 L/100 km; 17.6 mpg-US) was recorded. The test car cost £1467 including taxes.

This model was replaced in 1961 by the Vanden Plas Princess 3-litre Mark II. Styling was similar but the wheelbase was two inches (5 cm) longer and anti-roll bars were added to the suspension at both ends of the car. The engine was uprated to 120 hp (89 kW). Better brakes were fitted, and interior improvements included built-in drop-down "picnic tables" for the rear seat passengers. Options now included "Smith's air-conditioning".

This model lasted until 1964

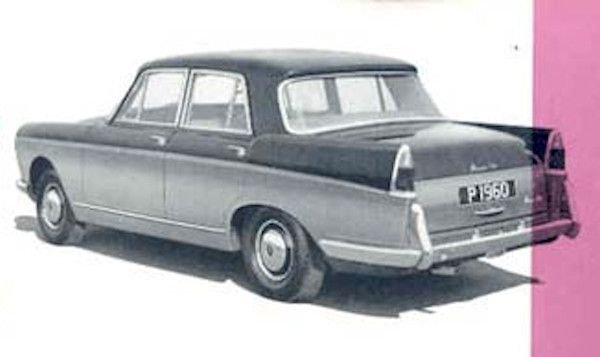

Austin Princess 3-litre Vanden Plas rear

Categories
Austin
Title
Austin Princess 3.0 & V Plas (1959-1964)

Description

Have you Say: Rate this
Overall Vote
80% - 2 votes
  • 1
  • 2
  • 3
  • 4
  • 5
1. Performance & Specification
  • 1
  • 2
  • 3
  • 4
  • 5
Built to last?
2. Appearance Overall *Cool factor*
  • 1
  • 2
  • 3
  • 4
  • 5
How good it looks ?
Related items
British Automotive 1960s | British Automotive 1950s | Vehicles launched in 1959 | Austin Princess | BMC C-Series engine | vanden-plas-related | Pininfarina | Luxury Cars

Technical

Technical
  • Vanden Plas 3-litre Princess Technical details and specifications

    (MKI) 1959 to 1961 (MKII) 1961 to 1964


    ENGINE:
    BORE/STROKE (mm) -83.34x88.9mm
    CAPACITY (cm') -2,912 c.c.
    FIRING ORDER 1-5-3-6-2-4
    OIL PRESSURE (lb/in2—Hot) -55 lb./sq. in.
    CARBURETTER Type - Twin S.U. H4

    CLUTCH
    Make - Borg & Beck
    Type - (MKI) 10" dia.(MKII) 9 1/2 " Diaphragm Spring
    Linings - Wound yarn

    BRAKES
    Make - Lockheed Hyd
    Type - Servo assisted
    Linings front - (MKI) Ferodo DS3 (MKII) Ferodo M78
    Linings rear - Don R7

    © Motor car History

Service
  • Vanden Plas 3-litre Princess Service Guide

    (MKI) 1959 to 1961 (MKII) 1961 to 1964

    CARBURETTER

    Type - Twin S.U. H4
    SETTING - Horizontal
    Needles -(MKI) Standard M5 Weak HA (MKII) Spring yellow

    TAPPET CLEARANCE (Cold)
    Inlet - 0•012"
    Exhaust - 0•012"

    VALVE-TIMING
    INDICATION - Timing wheels
    VALVE TIMING Inlet opens -(MKI) 5° B.T.D.C. (T.D.C. at 0•030' clearance) (MKII) T.D.C. at 0•024' clearance

    BREAKER GAP - (MKI) 0.014"-0.016" (MKII) 0.015"
    SPARK PLUGS GAP -(MKI) 0.024"-0.026" (MKII) 0.025"

    IGNITION-TIMING
    INDICATION - Pulley and pointer
    IGNITION TIMING - (MKI) T.D.C. (MKII) 5° B.T.D.C.

    TOE-IN - 1/8"
    CAMBER ANGLE - 1°
    CASTOR ANGLE - 1 1/4 °
    KINGPIN ANGLE - 7 1/2°
