USA
Sports Cars
1960s

Buick Gran Sport 400

Buick GS 400 (1965-1969)

Production

1965 to 1969

Class

Sports Car

Make

Buick (GM)

Produced by

General Motors

Total Production

34.542

Engine

400 cu in V8

Market

U.S.A

Wheel base

115 in, 2.921 mm

Overall length205 in, 5,207 mm
Overall width75.40 in, 1,915 mm
Overall height53.10 in, 1,349 mm
Dry weight3,573 1b, 1,621 kg



The Buick Gran Sport 400 is a muscle car of the American car brand Buick from the mid to late 1960s.

History

Buick loaded its GS model with luxuries, but also gave it a powerful engine so it could hold its own amongst the muscle cars of 1969.

As with Oldsmobile of 442, is at the Buick GS or the GranSport a so-called high-performance-option package, which gives the vehicle based on a Skylark the new name. The Gran Sport name has been used on several high-performance cars built by General Motors for its Buick brand since 1965 The GS package was also available for the Buick models Riviera and Wildcat. In 1965, Buick built the first Gran Sport based on the mid-range Skylark. At that time, you could order a Skylark with a V8. Interiors were all-vinyl, with a bench front seat standard and buckets available option A DeLuxe steering wheel was standard, alone with foam-padded seats, ash tray light, glove box light and upper interior light.

Buick Gran Sport 400 Maintenance

The Gran Sport, however, the strongest Buick V8 was installed. This had 6.6 l (401 in³) capacity known as the "nailhead" engine a bored and stroked version of the 340 and brought according to the manufacturer 242 kW (325 hp) and 603 Nm (445 ft.lbf) of power. Vehicle Identification Numbers began with 446008.

Buick sold over 15,000 Gran Sports in the first year and again as many in the second year. So claimed Buick in Muscle car competition. In 1967 Buick built the Gran Sport 400 with a newly developed 400 cui engine, which now produced 253 kW (340 hp) and had a torque of 597 Nm (440 lb-ft). In 1968 and 1969 Buick offered the GS 400 in a convertible and hardtop model The fastback coupe was the most sold body style, though the convertible has remained the most desirable, as just 1,776 were made in 1969.

Buick Gran Sport 400 Technical details

PERFORMANCE

  • Max power (SAE): 340 hp at 5,000 rpm
  • Max torque (SAE): 440 1b ft, 60.7 kg m at 3,200 rpm
  • Max engine rpm: 5,800
  • Specific power: 51.9 hp/l
  • Power-weight ratio: 10.6 lb/hp, 4.8 kg/hp
  • Max speeds: 38 mph, 61.2 km/h in 1st gear; 81 mph, 130.4 km/h in 2nd gear; 122 mph, 196.4 km/h in 3rd gear.

In 1969, the GS400 with new bonnet with ram-air Air intakes, these should increase power up to 8% and torque by 6%. At the same time ran the first Buick GS400 with the Stage 1 option off the line with three speed turbo Super Turbine 400 automatic transmission with centre U-shape Hurst automatic shifter and linkage and Positraction limited-slip differential. This was a limited edition of less than 1500 cars, with the engine's performance increasing to 257 kW (345 hp) and maximum torque to 597 Nm (440 ft.lbf). So, the 1/4 mile was driven in 14.4 seconds.

Buick Gran Sport 400 specifications

Buick offered even more power with the rare Stage 2 option. Officially, the Stage 2 engine modified 268 kW (360 hp), which was understated. Some customers measured 368 kW in their Stage 2 Buicks. Buick himself advertised in a brochure with the inscription "360 hp, quarter Mile in 12.5 Seconds".

Buick Gran Sport 400 Production

  • Total Production 1967
    Body Type
    2-dr Thin pillar Coupe 1,014
    2-dr H.T Coupe 10,659
    Convertible 2,140
  • Total Production 1968
    Body Type
    2-dr H.T.Coupe 10,743
    Convertible 2,454
  • Total Production 1969
    Body Type
    2-dr H.T Coupe 6,356
    Convertible 1,176
  • Total Production
  • 2-dr Thin pillar Coupe 1,014
    2-dr H.T Coupe 27.758
    Convertible 5.770

In Total 34.542 were built by 1970, the GS 400 was replaced by the GS 455.

Buick GS 400 Service Guide (1965-1969)

Categories
Buick
Title
Buick GS 400 (1965-1969)

Description

Have you Say: Rate this
Overall Vote
  • 1
  • 2
  • 3
  • 4
  • 5
1. Performance & Specification
  • 1
  • 2
  • 3
  • 4
  • 5
Built to last?
2. Appearance Overall *Cool factor*
  • 1
  • 2
  • 3
  • 4
  • 5
How good it looks ?
Related items
Buick Gran Sport | Buick Skylark | Vehicles launched in 1965 | American Automotive 1960s

Technical

Technical
  • Buick GS 400 Technical details and specifications (1965-1969)

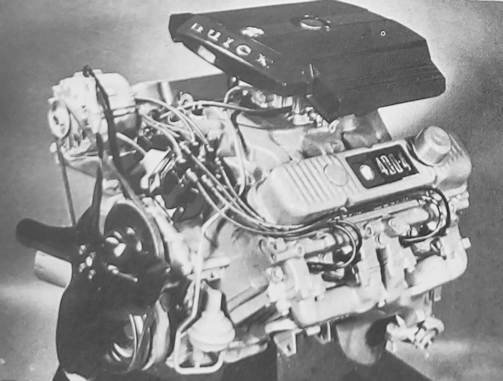

    ENGINE: 400 cu in
    location front
    4 stroke; cylinders: 8, Vee-slanted at 90°
    bore and stroke: 4.04 x 3.90 in, 102.6 x 99.1 mm
    engine capacity: 400 cu in, 6,554.80 cu cm
    compression ratio: 10.2
    cylinder block: cast iron
    cylinder head: cast iron
    crankshaft bearings: 5
    valves: 2 per cylinder, overhead, in line, push-rods and rockers, hydraulic tappets
    camshafts:1, at centre of Vee
    lubrication: gear pump, full flow filter
    carburation: 1 Rochester 4 MV downdraught 4-barrel carburettor
    fuel feed: mechanical pump
    cooling system: water
    (Optional)cleaner air system


    TRANSMISSION
    driving wheels: rear
    clutch: single dry plate
    gearbox: mechanical gears: 3+ reverse 2nd 1.610, 3rd 1, rev 2.330
    (Optional)4-speed fully synchronized mechanical gearbox (1st 2.200, 2nd 1.640, 3rd 1.280, 4th 1, rev 2.270)
    (Optional) Super Turbine automatic gearbox, hydraulic torque convertor 3 ratios (1st 2.480, 2nd 1.480, 3rd 1,rev 2.080)
    gear lever: central
    final drive: hypoid bevel
    axle ratio: 3.360.(Optional)3.900 or 3.550
    (Optional)limited slip final drive
    (Optional) central gear lever


    CHASSIS
    perimeter box-type
    front suspension: independent, wishbones, lower trailing links, coil springs, anti-roll bar, telescopic dampers
    rear suspension:rigid axle, trailing lower radius arms, upper oblique torque arms, coil springs,telescopic dampers.

    STEERING
    recirculating ball
    turns of steering wheel lock to lock: 3.56.
    (Optional) power-assisted steering, 4.06 turns of steering wheel lock to lock
    turning circle (between walls): 41.5 ft, 12.7 m

    BRAKES
    drum; area rubbed by linings: total 268.60 sq in, 1,732.47 sq cm.
    (Optional)servo brake
    (Optional)front disc brakes, servo brake

    ELECTRICAL EQUIPMENT
    voltage: 12 V
    battery: 70 Ah
    generator type: alternator, 42 Ah
    ignition distributor: Delco-Remy
    headlamps: 4.

    DIMENSIONS AND WEIGHT
    wheel base: 115 in, 2.921 mm
    front track: 58 in,1,473 mm
    rear track: 59 in, 1,499 mm
    overall length: 205 in, 5,207 mm
    overall width:75.40 in, 1,915 mm
    overall height: 53.10 in, 1,349 mm
    ground clearance: 5.65 in,144 mm
    dry weight: 3,573 1b, 1,621 kg
    distribution of weight: 55.4% front axle, 44.6% rear axle

    © Motor car History

Service
  • Buick GS 400 Maintenance and Service Guide (1965-1969)

    fuel: 100 oct petrol
    engine sump oil: 6.69 imp pt, 8 US pt, 3.81, SAE 5W-20 (winter) 10W-30 (summer), change every 6,000 miles,9,700 km
    total lubricating system capacity: 8.27 imp pt, 10 US pt
    gearbox oil: 2.99 imp pt, 3.50 US pt, 1.71, SAE 80-90
    final drive oil: 2.29 imp pt. 2.75 US pt, 1.31, SAE 80
    greasing: every 6,000 miles, 9,700 km
    cooling system capacity: 27.63 imp pt, 33.20 US pt
    valve timing: inlet opens 14° before tdc and closes 104° after bdc, exhaust opens 88° before bdc and closes 47° after tdc
    normal tyre pressure: front 26 psi, 1.8 atm, rear 26 psi,1.8 atm.
    width of rims: 6"
    tyres:F70 x 14
    fuel tank capacity: 16.7 imp gal, 20 US gal
    carrying capacity: 882 1b, 400 kg
