Chevrolet Kingswood second generation
 | |
Make | Chevrolet |
Model years | 1969 to 1972 |
Class | motor car |
Body style | 4-door wagon |
Layout | FR layout |
Platform | GM B platform |
Transmission | 3-speed manual |
Engines | 327 cu in (5.3 L) V8 |
The Chevrolet Kingswood second generation was a estate station wagon ,that Chevrolet produced from 1969 to 1972.
History
From the simpler model Kingswood , This differed by its imitation wood on the sides of the vehicle and the tailgate, as well as a slightly more luxurious interior. On a small number of 1969 models, there were also on request covered headlights. The cars were based on the GM-B platform and they were only available with V8 engines. Their sedan counterpart was the Caprice , and from 1973 the model was also called Chevrolet Caprice Estate . It was the top model in the Chevrolet station wagon range back then.
- PERFORMANCE Chevrolet Kingswood : 327 cu in V8
Engine capacity: 327 cu in, 5,358.55 cu cm
Fuel consumption: 16.5 mlimp gal, 13.7 m/US gal, 17.1 1 x 100 km
Max speed: 103 mph, 165.8 km/h
max power (SAE): 235 hp at 4,800 rpm
max torque (SAE): 325 1b ft, 44.8 kg m at 2,800 rpm
max engine rpm: 4,800
specific power: 43.9 hp/l
power-weight ratio: 17.2 lb/hp, 7.8 kg/hp
In the 1969 and 1970 model years, the Kingswood Estate - like all of Chevrolet's large station wagons - was equipped with a rear door that could be opened either sideways or down. For this, the rear window was sunk. When the door opened sideways, the rear bumper was recessed to facilitate third-party passengers getting in and out of the optional roof rack. If the door was opened downwards, there was a fitting in this recess , which was unlocked when it opened on the side and thus released the door.

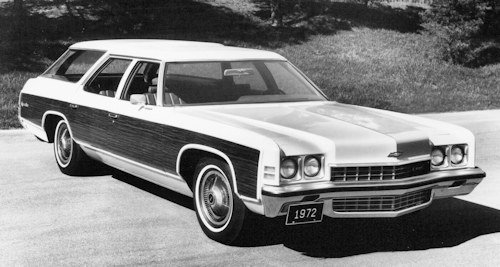

For 1971, New front Styling a stronger front bumper, a low-set grille and squared-off hood. translucent wood-grain body panels which
tone the grain to the body color. All full-size wagons have the Glide-Away tailgate. Variable ratio power steering, Turbo Hydra-matic
transmission and power brakes with front discs are standard. the power rear window became standard. Midway through the 1971 model year, the Turbo-Hydramatic transmission became standard.
- PERFORMANCE Chevrolet Kingswood: 350 cu in V8
- max speed: about 105 mph, 169 km/h
- fuel consumption: 15.8 m/ imp gal
- max power (SAE): 245 hp at 4,800 rpm
- max torque (SAE): 350 1b ft, 48.3 kg m at 2,800 rpm
- max engine rpm: 5,200
- specific power: 42.7 hp/l
Rating
Technical
-
Chevrolet Kingswood 2nd gen Technical details and specifications (1969-1972)
ENGINE: 327 cu in
4 stroke, slanted at 3°54'
cylinders: 8, Vee-slanted at 90°
bore and stroke: 4 x 3.25 in, 101.6 x 82.5 mm
engine capacity: 327 cu in, 5,358.55 cu cm
compression ratio: 9
cylinder block: cast iron
cylinder head: cast iron
crankshaft bearings: 5
valves: 2 per cylinder, overhead, in line, push-rods and rockers, hydraulic tappets
cam-shafts: 1, at centre of Vee
lubrication: gear pump, full flow filter
carburation: 1 Rochester 7029127 down-draught twin barrel carburettor
fuel feed: mechanical pump
cooling system: water
(options) cleaner air system
(option) air-conditioning system.
ENGINE: 350 cu in
cylinders: 8, Vee-slanted at 90°
bore and stroke: 4 x 3.48 in, 101.6 x 88.3 mm
engine capacity; 350 cu in, 5,736 cu cm
crankshaft bearings: 5
camshafts: 1, at centre of Vee
carburation: 11 Rochester 7041113 downdraught twin barrel carburettor
cooling system Capacity: 26.6 imp pt, 31.9 US pt, 15.1 1.
fuel feed: mechanical pump
cooling system: waterTRANSMISSION
driving wheels: rear
clutch: single dry plate (diaphragm);
gearbox: mechanical; gears: 3 + reverse
synchromesh gears: all
ratios: 1st 2.540, 2nd 1.500, 3rd 1, rev 2.630
(options) Powerglide automatic gearbox, hydraulic torque convertor with 2 ratios (1st 1.820, 2nd 1, rev 1.820)
gear lever location: steering column
final drive: hypoid bevel
axle ratio: 3.360. (options) 3.080 or 3.550
(options)limited slip final driveCHASSIS
type perimeter box-type
front suspension: independent, wishbones, lower trailing links, coil springs, anti-roll bar, telescopic dampers
rear suspension: rigid axle, lower trailing arms, 2 upper torque arms, transverse linkage bar, coil springs, telescopic dampers.STEERING
recirculating ball
turns of steering wheel lock to lock: 5.80.
turning circle (between walls): 43 ft, 13.1 m
(options) power-assisted steering
(options) adjustable tilt of steering wheelBRAKES
drum; area rubbed by linings 327 cu in: total 328.30 sq in, 2,117.53 sq cm.
area rubbed by linings 350 cu: total 391.6 sq in, 2,526 sq cm.
(options) servo brake; front disc brakes (diameter 11.75 in, 298 mm), 368.80 sq in, 2,378.76 sq cm
ELECTRICAL EQUIPMENT
voltage: 12 V
battery: 45 Ah (option) 61 Ah.
generator type: alternator, 37 Ah
ignition distributor: Delco-Remy
headlamps: 4, iodine.DIMENSIONS AND WEIGHT
wheel base: 119 in, 3,023 mm
front track: 63.50 in 1,613 mm
rear track: 63.40 in, 1,610 mm
overall length: 216.70 in, 5,504 mm
overall width: 79.80 in, 2,027 mm
overall height: 56.90 in, 1,445 mm
ground ciearance: 6.50 in, 165 mm
dry weight: 4,060 1b, 1,842 kg© Motor car History
-
Chevrolet Kingswood 2nd gen Maintenance and Service Guide (1969-1972)
Gearbox oil: 2.46 imp pt, 3 US pt, 1.4 1, SAE 80
Final drive oil: 2.99 imp pt, 3.50 US pt, 1.7 1, SAE 80
Greasing: every 6,000 miles, 9,700 Km
Normal tyre pressure: front 22 psi, 1.5 atm, rear 32 psi, 2.2 atm.
Width of rims: 6"
Tyres: 8.55 x 14 (options) 8.15 x 15 8.55 x 15 G70 x 15
Fuel tank capacity: 20 imp gal, 24 US gal fuel
Carrying capacity: 1,058 1b, 480 kg327 cu in
Fuel: 100 oct petrol
Engine oil change: 6.69 imp pt, 8 US pt, 3.8 1, SAE 5W-20 (winter) 10W-30 (summer), change every 6,000 miles, 9,700 km
Total lubricating system capacity: 8.27 imp pt, 10 US pt
Cooling system capacity: 28.34 imp pt, 34 US pt
Valve timing: inlet opens 28° before tdc and closes 72° after bdc, exhaust opens 78° before bdc and closes 30° after tdc© Motor car History
