History
Fiat 2100
![]() | |
Production period: | 1959-1961 |
Class : | Motor car |
Body versions : | saloon , station wagon |
Engines: | Gasoline:2.1 liters (61 kW) |
Length: | 4465 mm |
Width: | 1620 mm |
Height: | 1470 mm |
Curb weight : | 1230 kg |
previous model | 1900 |
Fom Early 1959, the 2100 first appeared from Fiat of Italy. At first along side the Fiat 1500, 1800 and later replaced by the 2300 .
History
Built with a self-supporting body in the then modern trapezoidal form as a four-door notchback sedan and a five-door station wagon ( Familiare ).
The bodywork was also used with six-cylinder engine for the Fiat 1800 and the Fiat 2300 , as well as with the four-cylinder engine of the Fiat 1500 for the Fiat 1500L.
The 2100 had a six-cylinder inline engine with 2054 cc displacement and a power of 60 kW, a four-speed gearbox with steering wheel circuit and driven rear wheels. Its maximum speed was 145 to 150 km / h, depending on the version.

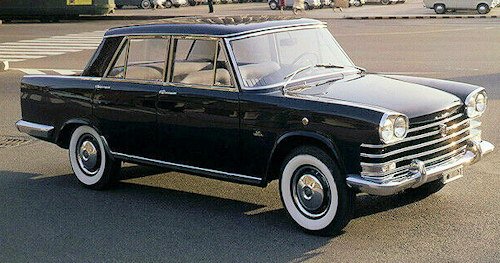

At the end of 1959 the Special Bodywork Section of FIAT created the Speciale version.The luxurious version of the series was the 2100 Special . It had the same engine and wheelbase, but slightly larger outside dimensions, a different grille and better features. , based on the 2100, characterized by increased wheelbase and length, a different (and more elaborate) front end, better finished interiors and other minor differences. The Francis Lombardi body shop , on the other hand, launched the extended wheelbase version of the sedan, popular as a taxi (7-seater configuration) or as a representative car (both for the Italian authorities and for the Vatican ) .
In 1960 the range was enriched with the 2100 Saxomat variant (sedan or family ), equipped with an automatic clutch : the gearbox remained manual with a lever on the steering wheel, but the clutch pedal was missing .
In the autumn of 1961, production was discontinued. This was succeeded by the Fiat 2300 .
Technical
-
Technical details and specifications Fiat 1500L / 1800B / 2100/2300
Fiat:
1500 l
1800 B
2100
2100 specials
2300
2300 specials
2300 Familiar
Engine:
4-cylinder in-line engine
Six-cylinder in-line engine (four-stroke)
displacement:
1481 cm³
1795 cm³
2054 cc
2279 cc
Bore × stroke:
77 × 79.5 mm
72 × 73.5 mm
77 × 73.5 mm
78 × 79.5 mm
Power at 1 / min:
55 kW
(75 hp)
at 540062.5-71 kW
(85-97 SAE-PS)
at 530070 kW
(95 SAE-PS)
at 500086 kW
(117 SAE-PS)
at 5300Max. Torque at 1 / min:
120 Nm at 3200
145-150 SAE Nm at 3000
169 SAE Nm at 3200
192 SAE Nm at 3000
Compression:
9: 1
8.8: 1
Fuel supply:
1 downdraft double carburator Weber 34 DCDH
1 downdraft double carburetor Weber 28-36 DCD2
1 downdraft twin carburetor Weber 34 DAS1
1 downdraft double carburator Weber 28-36 DCD3
Valve control:
OHV , chain
Cooling:
water cooling
Transmission:
4-speed gearbox, steering wheel gearshift
a. W. with Saxomat semi-automatic, 2300 a. W. also overdrive or Borg-Warner automatic transmissionFront suspension:
Wishbone upper, lower wishbone, longitudinal push rods, torsion bars
Rear suspension:
Rigid axle on spring links, coil springs
brakes:
Four-wheel drum brakes, later four-wheel disc brakes (diameter v / h 26.3 / 25.4 cm)
Steering:
worm and sector
Body:
Sheet steel, self-supporting
Track front / rear:
1345/1310 mm
Wheelbase:
2650 mm
2730 mm
2650 mm
Dimensions:
4485 × 1620 × 1470 mm
4625 × 1628 × 1452 mm
4485 × 1620 × 1470 mm
4705 × 1628 × 1485 mm
4485 × 1620 × 1485 mm
Empty weight:
1200 kg
1180 kg
1180 kg
1250 kg
1285 kg
1330 kg
1320 kg
maximum speed:
140 km / h
145+ km / h
150 km / h
145+ km / h
160 km / h
160 km / h
160 km / h
0-100 km / h:
not specified
Consumption (liters / 100 kilometers, CUNA standard):
9.4 s
11.6 p
12.0 s
13.0 s
11.8 s
11.7 s
12.0 s
