Ford Fairmont
![]() | |
Make : | Ford |
Production period: | 1977 to 1983 |
Class : | motor car |
Body versions : | Saloon , station wagon ,coupe |
Engines: | Gasoline: 2.3-4.9 liters (63-104 kW) |
Length: | 4923-4973 mm |
Width: | 1803 mm |
Height: | 1326-1389 mm |
Wheelbase : | 2680 mm |
Curb weight : | 1128-1278 kg |
Ford Fairmont offered in the US from 1977 to 1983 from the Ford Motor Company , also Ford Australia since 1965 the Fairmont as a luxury version of the Ford Falcon .
History
For model year 1978 Ford USA introduced as the successor of the Ford Maverick the Fairmont on the so-called Fox platform with rear-wheel drive, on which, for example, from the following year produced new Ford Mustang and its successor.

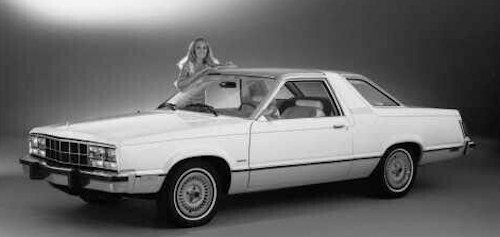

Parallel model of the Ford brand Mercury was the Mercury Zephyr . Offered were atwo or four-door sedan, a five-door station wagon and an initially Fairmont Futura called two-door coupe with independent front end and double rather than single headlights.The modified independent front suspension comprisedof , MacPherson struts, and helical coil springs.
The Ford Fairmont had on the right of the steering wheel, the steering wheel circuit for the automatic and left two steering column switches, the closer to the steering wheel mounted the direction indicator and by pressing in the steering stick operated the horn.
The Engines took over a choice of 2.3-liter four-cylinder with 65 kW (89 hp), a 3.3-liter inline six-cylinder with 63 kW (86 hp) or a 4942 cc and 104 kW (141 hp) V8 , The basic model was added later in the model year, an ES version ("Euro Sport") with matte black grille and trim. Switched by a manual three- or four-speed gearbox or a three-speed automatic transmission. From 1979 on request there was also a four-speed gearbox with overdrive .
PERFORMANCE 2.300 cc
max speed: 96 mph, 154 km/h
power-weight ratio: 4-dr Sedan 30.5 lb/hp (40.7 lb/kW), 13.9 kg/hp (18.5 kg/kW)
speed in direct drive at 1,000 rpm: 19.3 mph, 31 km/h
consumption: 27.7 m/imp gal, 23 m/US gal, 10.2 Ix 100 km.
From 1980, a Futura variant of the sedan, from 1981 also one for the combined model in the program,, the exterior trim was revised also provided with the dual headlight front end of the coupe. In 1980, the 4.9-liter was replaced by a 4.2-liter V-8 (89 kW / 121 hp). With the model year 1982 accounted for the ES and the estate versions, all Fairmont variants now had the additional designation Futura and had dual headlights. The 4.2-liter V8 accounted for and was reserved also for special police and taxi versions.
In 1983, the Fairmont was discontinued in favor of the Ford Tempo . By then, Ford had sold a total of around 1.6 million from the Fairmont.
Description
Technical
-
Ford Fairmont Technical details and specifications (1977-1983)
ENGINE 2.300 cc
front, 4 stroke
4 cylinders, in line
140 cu in, 2.300 cc
compression ratio: 9:1
cast iron block and head
5 crankshft bearings
valves: overhead, Vee-slanted, rockers
TRANSMISSION
driving wheels: rear
clutch: single dry plate
gearbox: mechanical
gears: 4, fully synchronized
ratios: I 3.980, II 2.140, III 1.420, IV 1, rev 3.990
final drive: hypoid bevel: axle ratio: 3.080
width of rims: 5" - St. wagon 5.5"; tyres P 175/75Rx 14 BSW.CHASSIS
integral with 2 cross members
front suspension: independent, by McPherson, wishbones (lower control arms), coil springs/telescopic damper struts, anti-roll bar
rear: rigid axle, lower trailing radius arms, upper oblique torque arms, coil springs, telescopic dampers.STEERING
rack-and-pinion: turns lock to lock: 4.27.BRAKES
front disc (diameter 10.06 in, 25.4 cm), front internal radial fins, rear compensator, rear drum;ELECTRICAL EQUIPMENT
12 V; 45 Ah battery; 40 A alternator; Motorcraft transistorized ignition; 4 headlamps.
DIMENSIONS AND WEIGHT (1980s)
wheel base: 105,50 in, 268 cm
tracks: 56.60 in, 144 cm front, 57 in, 145 cm rear
length: 195.50 in, 496 cm - Futura 197.40 in, 501 cm
width: 71 in, 180 cm
height 52.90 in, 134 cm - Futura 51.70 in, 131 cm -Engine family
Year
Bore x Stroke
Displacement
Valvetrain
Lima Inline-4
1978–1981
3.78 in × 3.13 in (96.04 mm × 79.4 mm)
140 cu in (2,301 cc)
SOHC
1982
1983
1980
Thriftpower Inline-6
1978–1979
3.69 in × 3.13 in (93.6 mm × 79.4 mm)
200 cu in (3,278 cc)
OHV
1980–1983
Windsor V8
1978–1979
4.00 in × 3.00 in (101.6 mm × 76.2 mm)
302 cu in (4,942 cc)
OHV
1980
3.68 in × 3.00 in (93.5 mm × 76.2 mm)
255 cu in (4,183 cc)
1981
Engine family
Year
Induction
Carburetion
Horsepower
Lima Inline-4
1978–1981
Naturally aspirated
2-barre
88 hp at 4800 rpm
1982
86 hp at 4600 rpm
92 hp at 4600 rpm1983
1-barrel
90 hp at 4600 rpm

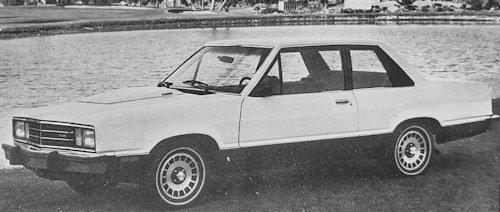

1980
Turbocharged
2-barrel (Draw-through)
120 hp at 5400 rpm
Thriftpower Inline-6
1978–1979
Naturally aspirated
1-barrel
85 hp at 3600 rpm
1980–1983
91 hp at 3800 rpm
Windsor V8
1978–1979
Naturally aspirated
2-barrell
139 hp at 3600 rpm
1980
2-barre
119 hp at 3800 rpm
1981
115 hp at 3400 rpm
