Ford Maverick

Ford Maverick Technical details and specifications (1969-1977)

Production:

1969 to 1977

Class:

Motor car

Body versions:

Sedan, coupe

Drive:

Rear

Engines:

Gasoline: 2.8-4.9 litres

Length:

4557-4925 mm

Width:

1791 mm

Height:

1344 mm

Wheelbase:

2615-2790 mm

Curb weight:

1092-1383 kg



The Ford Maverick is an automobile model from the 1970s, it was manufactured by Ford from 1969 to 1977.

History

Introduced in April 1969 for the 1970 market it was also produced from 1973 to 1979 in Brazil. In the model program, the Maverick came between the later released car Ford Pinto and the model Ford Torino.

The Maverick family initially consisted of the basic model Super, the Super Luxo (SL) and the GT. Super and SL were to buy as a coupe and a four-door. The GT represented the top model and was equipped with the V8, which made 195 gross or 137 net horsepower.First, the Maverick was only available as a two-door hatchback with a rear-wheel drive platform with inline six-cylinders of 2.8 or 3.3 litres displacement; in the summer of 1970, a 4.1-liter inline six-cylinder was added. At first there was the model in only a single variant.

starting in early summer 1970 in a sporty version called Maverick Grabber with trim and rear spoiler. The grabber version was eliminated in the last two model years.Maverick Grabber features a Charblack grille, twin nonfunctional air scoops, reflective tape stripes, racing mirrors and a blackout treatment of the spoiler and rear end.

Ford Maverick car history (1969-1977)

Optional Accessories : power-assisted steering.Select Shift Cruise-o-Matic auto-matic gearbox with 3 ratios air-conditioning system.AM/FM stereo radio, forged aluminum wheels and a Deluxe Bumper Group.

  • PERFORMANCE engine capacity: 170 cu in. 2.786 cu cm
    max power (SAE): 100 hp at 4,200 rpm
    max torque (SAEj: 148 1b ft, 20.4 kg m at 2,600 rpm
    max engine rpm: 4,600
    specific power: 35.9 hp, l
    max speed: about 88 mph, 141 km/h
    fuel consumption: 21.4 m/ imp gal
  • PERFORMANCE engine capacity: 200 cu in, 3,277 cu cm
    max power (SAE) : 115 hp at 4,000 rpm
    max torque (SAE): 180 1b ft, 24.8 kg at 2,200 rpm
    max engine rpm: 4,400
    specific power: 35.1 hp/l
    max speed: about 96 mph, 154 km/h
    power-weight ratio: Maverick 4-door Sedan 23.6 lb/hp, 10.7 kg/hp
    fuel consumption: 20 m/ imp gal, 16.7 m/US gal, 14.1 100 km.
  • PERFORMANCE engine capacity: 250 cu in, 4,095 cu cm
    max power (SAE)'. 145 hp at 4,000 rpm
    max torque (SAE): 232 1b ft. 32 kg m at 1,600 rpm
    max engine rpm: 4,500
    specific power; 35.4 hp/l
    max speed: about 98 mph, 157 km/h
    power- weight ratio: Maverick 4-door Sedan, 19.4 lb/hp, 8.8 kg/hp
    fuel consumption: 19.8 m/ imp gal, 16.4 m/US gal, 14.3 | x 100 km.

For model year 1971 came to coupe a four-door sedan on extended wheelbase.The four-door version is seven inches longer than the
original two-door Maverick model and offers substantially increased rear seat roominess. At the same time, the Maverick could now be ordered with a 4.9-liter V8. In model year 1972, Ford also offered the Maverick with Sprint package; this had a special red-white-blue paint and a matching interior decoration. In the summer of 1972, a luxury package was included in the program, which included sports seats with adjustable backrests and imitation leather cover, carpeting, wood foil on the dashboard, radial tires, chrome wheel covers and vinyl roof.

From June 1973, the Maverick was also produced in Brazil in little changed form and was there to compete with midsize cars such as the Chevrolet Opala. However, the Maverick in Brazil was having a hard time, especially after fuel prices rose as a result of the oil crisis - the Maverick was not an economical car. In April 1979, his production was finally stopped, after this sold more and more sluggish.

In the model years 1971 to 1977 Ford's sister brand Mercury offered its own version of the compact car under the name Comet. The vehicles were technically and externally largely identical. The most conspicuous distinguishing feature was the radiator cowling: While the Ford Maverick had a straight, plain grill, the Comet had a protruding grill with a modified bonnet, which took up the at Ford maintained style of the Knudsen grill. The Comet did not reach the production figures of the cheaper Maverick. In seven model years, only 487,182 comets were created, which accounted for less than a quarter of the Maverick production.

From 1973 to 1975, there were minor changes to the Maverick every year. 1973 accounted for the 2.8-liter, making the 3.3-liter to the base drive advanced, also the brakes were improved and the previously chargeable chrome grill was now standard. New extras were stereo radio and alloy wheels. According to the new safety regulations, the Maverick got a stronger front bumper. From model year 1974, a safety bumper was also installed behind. In 1975, only detail changes were made on the Maverick, for example, the Maverick lettering on bonnet and boot lid were replaced by Ford lettering. As early as 1975, the Maverick was to be replaced by the newly introduced Ford Granada, with whom he shares a number of technical components. However, as a result of the oil crisis, the demand for compact cars increased sharply, Ford retained the Maverick for three years next to the Granada in the program. For the 1978 model year, the Maverick was eventually replaced by the Ford Fairmont, which - like many of the group's later mid-range models - was based on Ford's new Fox platform.

In 1975, front disc brakes were standard, plus there was a new entry-level engine, a 2.3-liter four-cylinder with 97 hp; the Willys three litre accounted for. At the same time replaced on all models front seat and steering wheel circuit through individual seats and middle shift lever.

For 1976, the grabber was now no longer available and was replaced by the Maverick stallion with special paint finishes and sporty equipment; The Stallion package was also available for the Pinto and the Ford Mustang II. The Maverick got a new grille and standard front disc brakes; the parking brake was no longer a lever under the dashboard, but a pedal operated.

1977 was the last year for the Maverick in North America. A special police version was introduced, but sold only 400 times. In 1977, the chassis, grille, seats and tail lights were revised, the GT received air scoops on the hood. Air conditioning and automatic transmission were available for the four- as well as for the eight-cylinder versions.

By April 1979, 108,106 Mavericks had been manufactured in Brazil (85,654 coupes, 11,879 four-door and 10,573 GT).

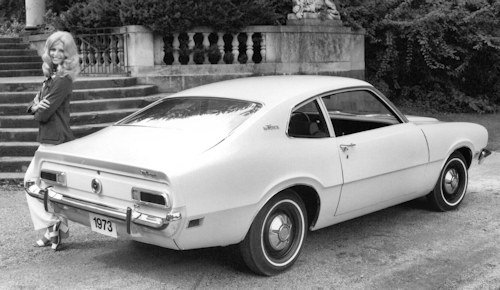

1973-Ford-Maverick-rear

Categories
Ford (US)
Title
Ford Maverick (1969-1977)

Description

Have you Say: Rate this
Overall Vote
  • 1
  • 2
  • 3
  • 4
  • 5
1. Performance & Specification
  • 1
  • 2
  • 3
  • 4
  • 5
Built to last?
2. Appearance Overall *Cool factor*
  • 1
  • 2
  • 3
  • 4
  • 5
How good it looks ?
Related items
Ford Maverick | Vehicles launched in 1970 | Vehicles launched in 1969

Technical

Technical
  • Ford Maverick Technical details and specifications (1969-1977)

    Ford Maverick and  Grabber 2-door Sedan 4-door Sedan 2-door Sports Sedan Series

    100 hp engine capacity: 170 cu in. 2.786 cu cm
    ENGINE front, 4 stroke
    cylinders: 6, in line
    bore and stroke: 3.50 x 2.94 in. 88.8 x 74.6 mm
    engine capacity: 170 cu in. 2.786 cu cm
    compression ratio: 8.7
    cylinder block: cast iron
    cylinder head: cast iron
    crankshaft bearings: 4
    valves: 2 per cylinder, overhead, in line. push-rods and rockers, hydraulic tappets
    camshafts: 1. side
    lubrication: rotary pump, full flow filter
    lubricating system capacity: 5.8 imp pt, 7 US pt. 3.3 1
    carburation: 1 Carter 9510 DIDF-EA downdraught single barrel carburettor
    fuel feed: mechanical pump
    cooling system: water

    115 hp engine capacity: 200 cu in, 3,277 cu cm
    ENGINE bore and stroke: 3.68 x 3.13 in, 93.5 x 79.5 mm
    engine capacity: 200 cu in, 3,277 cu cm
    crankshaft bearings: 7
    carburation: Carter 9510 DIDF-GA downdraught single barrel carburettor
    cooling system capacity: 18 imp pt, 21.6 US pt, 10.2 1.

    145 hp 250 cu in, 4,095 cu cm
    bore and stroke: 3.68 x 3.91 In, 93.5 x 99.3 mm
    engine capacity: 250 cu in, 4,095 cu cm
    compression ratio: 9
    crankshaft bearings: 7;
    carburation: Carter 9510 DIZF-JA downdraught single barrel carburettor

    TRANSMISSION
    driving wheels: rear
    clutch: single dry plate, semi-centrifugal
    gearbox: mechanical; gears gearbox ratios: I 3.410, II 1.860, III 1, rev 3.510
    gearbox: Select Shift Cruise-o-Matic automatic, hydraulic torque convertor and planetary gears with 3 ratios + reverse
    gear lever: steering column
    final drive: hypoid bevel
    axle ratio: 2.790



    CHASSIS
    TYPE integral
    front suspension: independent, wishbones, lower leading arms, coil springs, telescopic dampers
    rear suspension: rigid axle, semi-elliptic leafsprings, telescopic dampers.

    STEERING
    recirculating ball
    turns of steering wheel lock to lock: 5.20.
    turning circle (between walls): 39.5 ft, 12 m

    BRAKES
    drum, dual circuit
    area rubbed by linings: total 212 sq in, 1,367 sq cm.

    ELECTRICAL EQUIPMENT
    voltage: 12 V
    battery: 45 Ah
    generator type: alternator, 38 A or alternator, 55 A.

    DIMENSIONS AND WEIGHT
    wheel base: 103 in, 2,616 mm
    4-door sedan 109.90 in, 2,791 mm
    front track: 56.50 in, 1,435 mm
    rear track: 56.50 in, 1,435 mm
    overall length: 4-door sedan -186.30 in, 4,732 mm; 179.40 in, 4,557 mm
    overall width: 70.50 in, 1,791 mm — 4-door sedan 70.60 in, 1,793 mm
    overall height: 53 in, 1,343 mm — 4-door sedan 53.10 in, 1,349 mm
    ground clearance: 6.10 in, 155 mm
    dry weight: Maverick 2-door Sedan 2,624 1b, 1,190 kg Maverick 4-door Sedan 2,719 1b, 1,233 kg — Maverick Grabber 2-door Sports Sedan 2,679 1b, 1,215 kg

    Production figures Ford Maverick

    model year

    Fastback two-door

    Sedan four-door

    total

    1970

    578914

    -

    578914

    1971

    198689

    73208

    271897

    1972

    181278

    73686

    254964

    1973

    281293

    110382

    484512

    1974

    163320

    137728

    301048

    1975

    99168

    63404

    162572

    1976

    60611

    79076

    139687

    1977

    40086

    58420

    92506

    total

    1603359

    595904

    2199263

    © Motor car History

Service
  • Ford Maverick maintenance and Service Guide (1969-1977)

    fuel tank capacity: 12.5 imp gal, 15 US gal, 57 1.
    width of rims: 4.5"
    tyres 6.45 x 14.
    cooling system capacity 170 cu in: 17.8 imp pt, 21.4 US pt.
    cooling system capacity 250 cu in: 19.5 imp pt, 23.5 US
