Peugeot Partner 1st generation

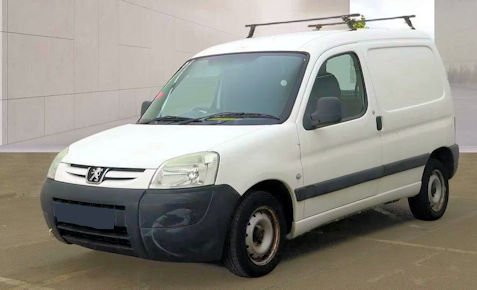

Peugeot Partner Repair Manual 1st generation
Production period: 1996 to 2009
Body versions : Box van , minibus
Engines:
Gasoline  : 1.1-1.8 liters(44-80 kW)
Diesel  :1.6-2.0 liters(50-66 kW)
Length: 4137 mm
Width: 1724 mm
Height: 1810 mm
Wheelbase : 2693 mm
Curb weight : 1263-1344 kg



The partner was manufactured as a high roof or panel van and is identical to the Citroën Berlingo . Differences between the two vehicles exist with regard to the design of the upholstery and the selection and combination options for the optional extras. The new concept won in 1997 together with the Citroën Berlingo the title Van of the Year .

The engines are available in four-cylinder engines with 44 to 80 kW (petrol) and 50 to 66 kW (diesel). The trunk is extremely generous with 624 liters.
In early 2003, the partner received a facelift , which gave him a modified front with other headlights.

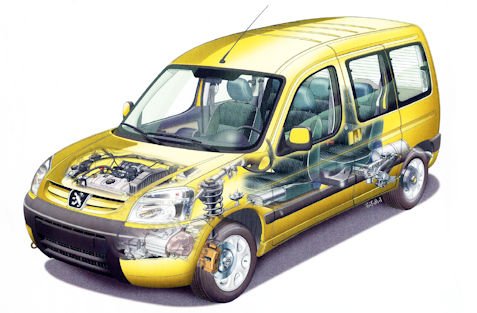

Peugeot Partner I Technical details specifications (1996-2009)

At the same time Peugeot introduced the moderate off-road variants Escapade , which was higher compared to the standard version and received an underrun protection for engine and drive shafts and protective grille in front of the headlights. The Grande Escapade version also featured an automatic locking differential (75%).

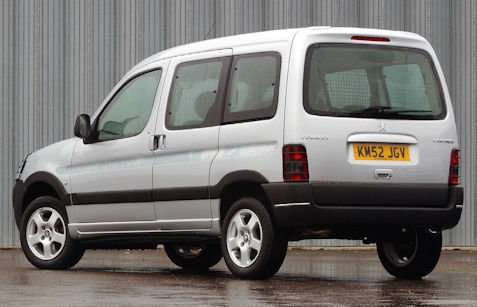

Peugeot Partner Service Guide Escapade

By the year 2008, 570,000 units were distributed throughout Europe, making the partner the most popular vehicle in its class. After the appearance of the successor partner Tepee this was sold under the name Partner Origin .The production of the Partner Origin expired at the end of 2009, while the Escapade ended in spring 2008 Partner Electric, Peugeot equipped in the 1990s, many vehicles with electric drive. They were powered by DC motors , as a traction battery wet nickel-cadmium batteries Saft company were used.

Peugeot Previous 54 / 65 Next

Related

Related items
Peugeot Partner | France 2010s | France 2000s | France 1990s | Vehicles launched in 1996

Technical

Technical
  •

    PETROL 1.4i 1.8i 1.6i 16  V
    Type 4 cylinders 8s in transverse line 4 cylinders 16s in transverse line
    Cylinder capacity (cm³) 1 360 1,761 1,587
    Max. Power (ch - rpm) 75-5,500 90 to 5,000 110 to 5,800
    Max torque (Nm - rpm) 111-120 to 3,400 147 to 2,600 147 to 4,000
    Gearbox Manual 5-speed
    Transmission Front wheels
    EU weight (kg) 1,125 to 1,197 1,170 1,252
    0 to 100  km / h (s) 17.5 12.2 11.2
    Max speed (Km / h) 150 160 172
    Consumption (l / 100  km )
    Extra Urban / Urban / Mixed
    6.2 / 9.7 / 7.5 7.1 / 11.9 / 8.9 6.2 / 9.5 / 7.4
    CO 2 emissions (G / km) 176   177
    Years of production 1999-2008 1997-2000 2000-2008

    DIESEL ENGINES
    1.9 D 2.0 HDi 1.6 HDi 75 1.6 HDi 90
    Type 4 cylinders 8s in trans line. 4 cylinders 8s in trans line. turbo 4 cylinders 16s in trans line. turbo
    Cylinder capacity (cm³) 1,868 1997 1,560
    Max. Power (ch - rpm) 71 to 4,600 90 to 4,000 75 to 4,000 90 to 4,000
    Max torque (Nm - rpm) 125 to 2,500 205 to 1,900 170 to 1,750 215 to 1,750
    Gearbox Manual 5-speed
    Transmission Front wheels
    EU weight (kg) 1,190 to 1,240 1,288 to 1,311 1,240 1,240
    0 to 100  km / h (s) 16.9 13.4 15.4 12.9
    Max speed (Km / h) 142 178 150 160
    Consumption (l / 100  km )
    Extra Urban / Urban / Mixed
    5.7 / 8.8 / 6.8 5 / 7.3 / 5.8 4.7 / 6.7 / 5.4 4.7 / 6.7 / 5.3
    CO 2 emissions (G / km) 181 143 143 143
    Years of production 1997-2006 1999-2006 2005-2008 2005-2008



Manuals

Download: Workshop manuals Tech Guides exclusive to registered users.
