Chevrolet Express and GMC Savana

Chevrolet Express (1996-)

Manufacturer:

Chevrolet

Production period:

1996-present

Type :

Commercial vehicle

Body designs:

Box van , minibus

Engines:

Gasoline : 4.3-8.1 liters (145-257 kW)
Diesel  : 2.8-6.6 liters (135-194 kW)

Length:

5558-6200 mm

Width:

2012-2017 mm

Height:

2060-2243 mm

Wheelbase:

3429-3937 mm

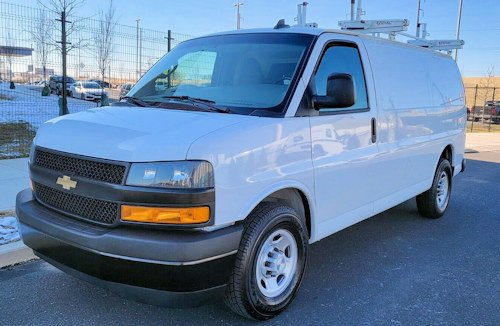

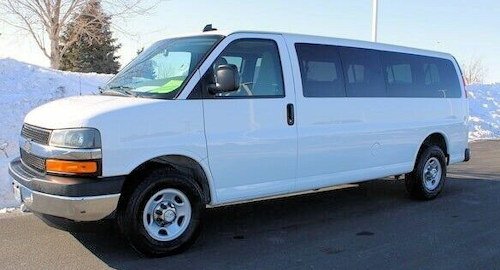

The Chevrolet Express and almost identical GMC Savana are vans from General Motors built from the mid 1990s on .

History

From model year 1996 to model year 2002, the GM GMT-600 platform was the basis for the vehicle. The Express and Savana are offered as a Van (Work Van) and as a Kombi (Passenger Van) with 8 to 15 seats. Since 2004 there is ESP (Stabilitrak) in all passenger variants.The express is sold much more than the Savana. The Express and Savana hold 29% of the US pickup truck market in the second quarter of 2018 and are thus in second place behind the Ford Transit . In 2017, a total of 110,017 copies of both vans were sold.

 The engines are of a more large-volume compared to to European standards including V8s. The engines were a 4.3-liter V6 gasoline engine with a maximum output of 195  hp (145  kW ), a 5.0-liter V8 gasoline engine with a maximum output of 220 hp (164 kW), a 5.7-liter V8 gasoline engine with a maximum output of 250 hp (186 kW), a 7.4-liter V8 gasoline engine with a maximum output of 290 hp (216 kW) and an indirect-injection , turbocharged 6 , 5 l V8 diesel engine  with a maximum output of 190 hp (142 kW).

Since model year 2003, the vehicle is being built on the GM GMT-610 platform . In addition to some of facelift a 4.3-liter V-6 spark ignition engine with a maximum power of 200 hp (149 kW), a 4.8-liter V-8 gasoline engine with a maximum output of 270 hp (201 kW), a 5.3 l V8 gasoline engine with a maximum output of 285 hp (213 kW), a 6.0 l V8 gasoline engine with a maximum output of 300 hp (224 kW) or 345 hp (257 kW), 8.1-liter V8 gasoline engine,a turbocharged 6.6-liter V8 diesel engine with a maximum output of initially 250 hp (186 kW), later 260 hp (194 kW)  and a turbocharged 2.8-liter R4 diesel engine with a maximum power of 181 hp (135 kW).After 2016, the 6.6L Duramax diesel V8 was discontinued; a 2.8L inline-4 Duramax (the first four-cylinder in a full-size Chevrolet van since 1964) replaced it as the diesel engine offering. For 2018, an "EcoTec3" 4.3L V6 was introduced as the base gasoline engine the same year, CNG/LPG capability was added as an option to the 6.0L V8.

For 2021, the 6.0L V8 was replaced by an all-new 6.6L V8

The gearboxes are 4-speed overdrive 4L60E automatic transmissions. The vehicle is available with rear-wheel drive (G-series) and four-wheel drive (H-series) 1500-series vehicles used a 4L60E transmission while 2500 and 3500-series vehicles used a heavier-duty 4L80E unit.

Chevrolet Express (1996-)

Related items
Vehicles launched in 1996 | American 1990s | American 2010s | American 2000s | Vans | Commercial vehicles

Rating

Have you Say: Rate this
Overall Vote
80% - 1 vote
  • 1
  • 2
  • 3
  • 4
  • 5
1. Performance & Specification
  • 1
  • 2
  • 3
  • 4
  • 5
Built to last?
2. Appearance Overall *Cool factor*
  • 1
  • 2
  • 3
  • 4
  • 5
How good it looks ?

Technical

Technical
  • VIN year and engine codes

    Engine identification number.
    The Engine Identification Number on all engines except the larger 7.4L V8 is stamped near the transmission bellhousing on the rear of the engine block on the left side.

    4.3L V6 (W.X)
    4.8L v8 (V)
    5.0L V8 (M)
    5.3L V8 (T)
    5.7L V8 (R)
    6.0L V8 (U)
    7.4L V8 (J)

    1998 (W)
    1999 (X)
    2000 (Y)
    2001 (1)
    2002 (2)
    2003 (3)
    2004 (4)
    2005 (5)
    2006 (6)
    2007 (7)

    Recommended lubricants and fluids

    Engine oil - API grade certified for gasoline engines

    Engine Oil (including filter)
    4.3L V6 engine - 4.5 quarts
    4.8L V8. 5.3L V8 6.OL V8 engines 5 quarts
    5.OL V8 and 5.7L V8 engines -5 quarts
    7.4L V8 engine - 6.6 to 7 quarts


    Autornatic transmission fluid

    1996-2005 Dexron III 20006 on Dexron IV automatic transmission fluid

    Difierential lubricant
    2001 and earlier - SAE 80W.90 GL-5 gear lubricant
    2002 on models - SAE 75W-90 synthetic gear lubricant

    Power steering

    GM hydraulic power steering fluid or equivalent

    Engine coolant
    50/50 mixture of DEX-COOL antifreeze and distilled water

    Brake fluid
    DOT 3 brake fluid
