Motor Cars
Australia
1980s 1990s

Holden Apollo (JK / JL)

Holden Apollo (JK / JL)

Production period:

1989 to 1993

Body versions:

sedan, station wagon

Engines:

Gasoline :2.0 litres (82-88 kW)

Length:

4500-4525 mm

Width:

1710 mm

Height:

1400-1440 mm

Wheelbase:

2600 mm

Curb weight:





The Holden Apollo is a mid-size car, which was made from 1989 to 1999 by Toyota for the Australian car brand Holden, the offshoot of General Motors, as the successor to the JE Camira.

History

The first Holden Apollo built as the successor of JE Camira delivered in August 1989 a cooperation with Toyota. The JK Apollo was basically a Toyota Camry V20, adapted to Australian standards. Like its predecessor it was available in the equipment variants SL, SL / X and SL / E, whereby the SL / X by the package A8Q also to the executive could be upgraded.

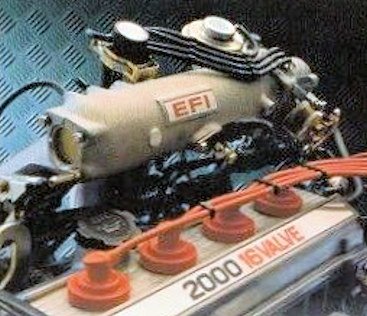

Holden-Apollo-JK-engine

Powered by the well-known 2.0 l inline four-cylinder engine with double camshafts and either a twin carburettor and 82 kW or EFI injection and 88 kW. A manual five-speed or four-speed automatic transmission led the engine power to the front wheels on. In all trim levels, the JK Apollo was available as a 4-door sedan or 5-door station wagon.

In August 1991 there was a small facelift to the JL Apollo. The carburettor engine was eliminated, as were the executive models. The model range began with the SL, next level was the SL / X, then came the sporty GS. The 1991 Holden Apollo GS sedan and wagon offer a host of luxury features. plus a sporty 5 speed overdrive transmission. Exterior features Apollo GS sedan and wagon can be immediately identified by the bold graphic GS applied to the side of the car and the distinctive red stripe wrapping the vehicle. A distinctive paint treatment has also been applied to front and rear bumpers-featuring a black finish to bumper upper surfaces and body colour below. A red stripe defines bumper leading edges, and extends down the sides of the car as an infill in the bodyside protection mouldings. Sporty full wheel covers are also exclusive to Holden Apollo GS with new interior features. The exterior visual treatment is continued inside the vehicle. with trim being adistinctive multicoloured checked fabric and red piping edging front and rear seats.In keeping with its sports oriented image, Apollo GS features a tachometer, as well as electrically adjustable exterior rear view mirrors. Top of the line sound is standard. featuring an AM and FM stereo radio, auto reverse cassette and 4 speakers.

The top model SL / E was only available as a sedan. JK and JL are very similar, with the JL offering a bit more chrome on the grille and window surrounds. The JL Apollo was built until March 1993.

Holden Apollo (JK / JL)

Related items
Vehicles launched in 1989

Technical

Technical
  •  Holden Apollo JK/JL Technical details and specifications (1989-1993)

    JL Apollo Specifications:
    Engine: 2.0 4 cylinder.Electronic fuel injection
    Bore and stroke: 86
    Displacement (cm):1998
    Compress Ratios: 9.3:1
    Fuel: 91 Octane unleaded fuel.
    Power Output: 88 (DIN) @5200 rpm
    Torque: 171
    Transmission: 4.Speed Manual and auto
    Fuel Tank Capacity: 60 litre
    Suspension
    Front: McPherson Strut. coil springs stabiliser bar.
    Rear: Independant McPherson Strut dual link and parallel lower arms. coil springs, stabiliser bar.

    model

    description

    Vehicle type

    Construction period

    JK 8JF19

    Apollo SL

    Limousine 4 doors

    08 / 1989-08 / 1991

    JK 8JF35

    Apollo SL

    Kombi 5 doors

    08 / 1989-08 / 1991

    JK 8JM19

    Apollo SL / X

    Limousine 4 doors

    08 / 1989-08 / 1991

    JK 8JM19-A8Q

    Apollo Executive

    Limousine 4 doors

    08 / 1989-08 / 1991

    JK 8JM35

    Apollo SL / X

    Kombi 5 doors

    08 / 1989-08 / 1991

    JK 8LM35-A8Q

    Apollo Executive

    Kombi 5 doors

    08 / 1989-08 / 1991

    JK 8JN19

    Apollo SL / E

    Limousine 4 doors

    08 / 1989-08 / 1991

    JK 8JN69

    Apollo SL / E

    Kombi 5 doors

    08 / 1989-08 / 1991

    JL-8JF19

    Apollo SL / SL / X

    Limousine 4 doors

    08 / 1991-03 / 1993

    JL-8JF35

    Apollo SL / SL / X

    Kombi 5 doors

    08 / 1991-03 / 1993

    JL-8JM19

    Apollo GS

    Limousine 4 doors

    08 / 1991-03 / 1993

    JL-8JM35

    Apollo GS

    Kombi 5 doors

    08 / 1991-03 / 1993

    JL-8JN19

    Apollo SL / E

    Limousine 4 doors

    08 / 1991-03 / 1993









Manuals

Download: Workshop manuals Tech Guides exclusive to registered users.
