Mercedes-Benz CLA 117 series

1st generation

Designation:	CLA
Production period:	2013 to 2019
Class :	motor car
Body versions :	saloon , station wagon
Engines:	Gasoline : 1.6-2.0 liters (90-280 kW)  Diesel : 1.5-2.1 liters (80-130 kW)
Length:	4630-4669 mm
Width:	1777 mm
Height:	1416-1435 mm
Wheelbase :	2699 mm
Curb weight :	1390-1615 kg

Mercedes-Benz 117 model CLA of the manufacturer Mercedes-Benz is a four-door mid-range vehicle ( C 117 ).This was presented to the public on 15 January 2013. The manufacturer refers to the four-door sedan as a four-door coupe .Stars in the Euro-NCAP - crash test (2013) the full 5 stars.

History

As part of the Mercedes-Benz Fashion Week Berlin and launched on 13 April 2013 Europe-wide after production began on 25 January 2013. The only production site is the factory in Kecskemét, Hungary .

A first study called Concept Style Coupe was presented at the Beijing Motor Show in April 2012. The C 117 is the third model based on the modular front-drive architecture (MFA). The approximately equal size Mercedes C-Class has rear wheel instead of front-wheel drive. This also explains why, for reasons of space, only four-cylinder engines are used on the CLA.

In the first year of sale 59,200 copies were sold worldwide. Around half of the customers did not previously drive a Mercedes-Benz model .

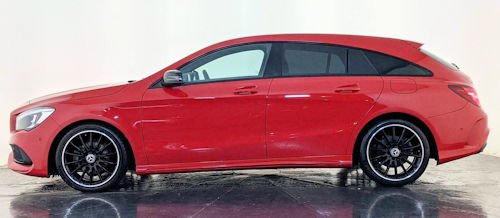

Following the success of the CLA , Mercedes-Benz presented a station wagon variant at the end of 2014 . The Mercedes-Benz CLA Shooting Brake (X 117) recalls detail elements such as the frameless side windows on a coupé, but at the same time offers the versatility and utility of a station wagon. The market launch took place on March 28, 2015.

On March 16, 2016, Mercedes-Benz released information on the revised version, which had its world premiere at the 2016 New York International Auto Show . It was available from April 2016. In July 2016, she came to the dealers.

Specifications

The main features of the design and the proportions of the CLA are based on the larger and higher-positioned CLS . The concept of the four-door coupé, which was established in 2004 with the CLS in the upper class, should also be realized in the middle class.

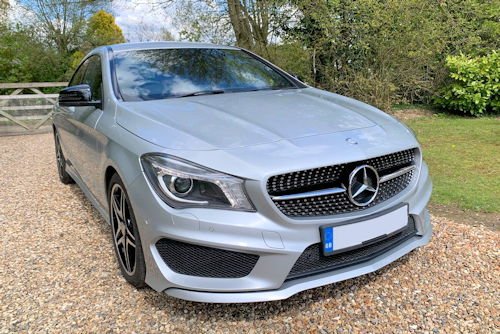

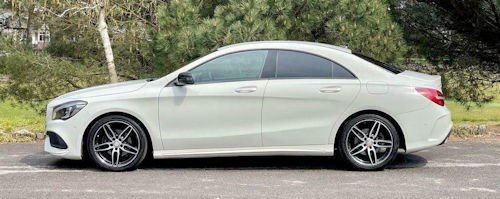

The C 117 has a long bonnet, a narrow window graphic and frameless side windows, which are a unique feature in this class. The front shows similarities to the A-Class , but there are differences, such as the slightly modified shape of the headlights or the side air intakes in the skirt. The radiator grille with the Mercedes-Benz star integrated in the radiator grille is not visually integrated in the bonnet, but designed separately.

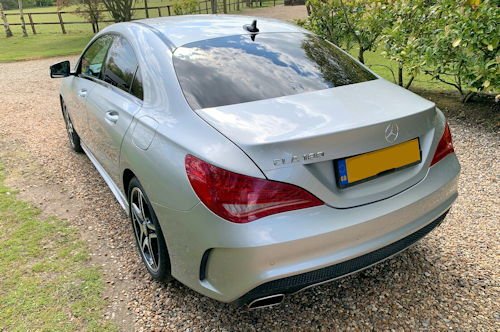

The roof is flattened coupé like the domed tail ends slightly sloping in. With almond-shaped tail lights. The fuel cap is typical for Mercedes-Benz - on the left side.

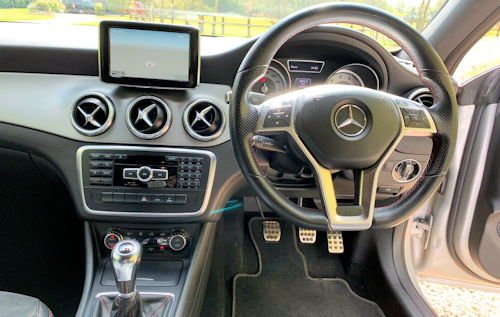

The design of the interior is strongly based on the A and B class . The basic version of the C 117 has a three-spoke steering wheel with aluminum double strut from the CLS . The instrument cluster has two analogous round instruments, each containing another small round instrument, between which there is a 11.4 cm multifunction display. On the instrument panel is analog as of the B-Class . The central display with a diagonal of 14.7 cm in the base and 17.8 cm with the choice of navigation system, which is located above the three air vents in the cross design of aluminum, is now integrated into the instrument panel top. Below the decorative element with the air vents there is a control unit, which flows to the armrest and consists of two separate compartments, starting with the operation of the radio and the navigation system and including the climate controllers. The control knobs are made of aluminum.

The shift lever is omitted on models with the dual-clutch gearbox , the handbrake is replaced on all models by an electric parking brake (triggers automatically when starting), so that instead of two storage compartments. The operation of the radio and navigation system takes place via a rotary and push button in front of the center armrest.

The CLA is equipped as standard with Collision Prevention Assist . It is a radar-based collision warning with adaptive brake assist . It reduces the risk of a rear-end collision from 7 km / h upwards through visual and audible warnings of detected obstacles. At the same time, the brake assistant prepares for the upcoming braking, which is initiated as soon as the driver presses the brake pedal clearly.

For the CLA , the preventive occupant protection system Pre-Safe known from the larger series is also available. The standard equipment includes the fatigue warning Attention Assist , the hold function of the brake and hill start assist . Available as an option are the adaptive cruise control Distronic Plus , Adaptive Highbeam Assist, a Blind Spot and Lane Keeping Assist, a traffic sign recognition , a parking assistant , the voice control system LINGUATRONIC and a reversing camera.

When Collision Prevention Assist and Distronic Plus are available, autonomous braking is initiated at speeds up to approximately 200 km / h when a collision threatens and the driver does not respond by reducing speed.

Engines

At the market launch, five engines with only four cylinders are offered. On the side of the gasoline engines there is a 1.6-liter direct-injection engine with turbocharger and a power of 90 kW (122 hp). In addition to the normal version CLA 180 , this engine is also available in the aerodynamically and fuel-efficient CLA 180 BlueEFFICIENCY Edition . The 115 kW (156 hp) more powerful version of the same engine in the CLA 200 ranks above that . Furthermore, there is the CLA 250, a two-liter direct-injection engine with turbocharging, which comes to a power of 155 kW (211 hp). On the diesel engine side, only the most powerful variant of the OM 651 will be offered. The CLA 220 CDI mentioned model from 2.1 liters of displacement 125 kW (170 hp). All engines meet the Euro 6 emissions standard at the start of the market. In addition, the CLA 45 AMG with 265 kW will be available from June 2013 .

As of September 2014, the CLA 200 CDI has a capacity of 2.1 liters instead of 1.8 liters and since then has been offered with four-wheel drive as the CLA 200 CDI 4MATIC . Since then, the CLA 220 CDI has also been offered as a 4MATIC variant. The CLA 220 CDI (4MATIC) has a power output of 5 kW (7 hp) for vehicles delivered from the beginning of November 2014.

Manual transmission

As a transmission, a newly developed 6-speed manual transmission is used for the two weaker gasoline engines. The three-shaft gearbox with the designation F-SG 310 is very compact with a length of 345 mm and has a low dry weight of 46 kg. The upper shaft, which contains the reverse gear and the gears three and four, does not run in an oil bath. As a result, the drag torque is reduced and the shifting comfort is also given in cold operation. The first two gears are synchronized via a triple cone, while the following gears have a double cone. These measures also increase the shifting comfort. A magnet on the selector shaft, passing through a Hall sensor is detected, ensures that the current gear position is detected. The start-stop system and the reversing lights, which are standard in all models, are controlled by this. Gears are laid by cables while the clutch is hydraulically operated. The shift forks are made of cast aluminum and are roller-mounted in the gearbox.

Dual Clutch Transmission

As automatic a specially comes from Daimler -developed dual clutch transmission used. The 7G-DCT transmission is fitted as standard in vehicles with the most powerful diesel and gasoline engines and is also available at a surcharge for all other engines. The exception is the CLA 180 BlueEFFICIENCY Edition , which is only available with the 6-speed manual transmission.

The 7G-DCT is a split-shaft three-shaft transmission. The partial transmissions each have their own multi-plate clutch running in the oil bath , which allows switching without interruption of traction. The spread of the gears was chosen at 7.99 high, in order to provide sufficient torque at low gears while lowering the speeds in the higher gears. The 7G-DCT is 367 mm long and weighs 86 kg. Despite an oil filling quantity of only 6 l hydraulic oil Sufficient cooling is ensured because the oil is actively cooled. In addition to a mechanically driven oil pump, there is an electric auxiliary pump, which supplies the gear during a stop operation with the engine off with oil. Thus, the restart can be done without delay, and the standard start-stop function can be easily realized. In addition, the electric auxiliary pump supports the mechanical pump at high loads. The hydraulic of the mechanical parking lock is electronically controlled, whereby the gear selector lever could be positioned right behind the steering wheel. Thus, more storage space was created in the center console.

The driver can choose three transmission programs. The Economy program switches fully automatically and is designed for economical driving. In sport mode , the transmission also shifts automatically, reducing the response times for a sporty driving style. In the third mode, the driver manually shifts the gears via shift paddles behind the steering wheel. In the automatic shift programs, the driver can also make manual shift interventions, whereby the automatic mode is reactivated after 10 seconds without further switching operations. This time is extended on downhill or on winding roads. Permanent communication between the transmission and engine control unit ensures improved efficiency.

Suspension

Front is MacPherson front suspension , rear a newly developed four-link - rear axle installed. In addition to improved handling, this allows the later use of the 4MATIC all - wheel drive . Initially, only variants that are powered by the front wheels offered. There is a choice of suspension options, including the optional sports suspension with direct steering, with the front body lowered by 15 mm and the rear by 10 mm. The CLA has a Dual Pinion EPS , an electromechanical steering system with an electric motor built directly into the steering box.

Equipment and packages

The CLA has the basic version of ASR , ABS , BAS , ESP , a six-speed manual transmission with Eco Start-Stop function and a gearshift point indicator, and a power-assisted steering and in models CLA 250 and CLA 220 CDI a cruise control with variable speed limiter Speedtronic with brake intervention. The set limit can be exceeded by a kickdown. The largest models, the CLA 250 and CLA 220 CDI , are exclusively with the 7G-DCT withEco start-stop function to have. Wheels in the dimensions 205/55 R 16 with alloy wheels in ten-spoke design are used as wheels on the weaker models CLA 180 and CLA 200. The models CLA 250 and CLA 220 CDI roll on tires in the dimension 225/45 R 17 with light-alloy wheels in ten-spoke design; the economy model CLA 180 BlueEFFICIENCY Edition is equipped with 195/65 R 15 wheels with steel wheels and wheel covers in a ten-hole design. The CLA is equipped with the collision warning system Collision Prevention Assist , with the fatigue attendant Attention Assist and equipped with seven airbags.

In the interior, the CLA has a three-spoke multifunction steering wheel, which is adjustable both in height and in the width, as well as three-point seat belts on all seats and a folding rear seat. Furthermore, the C 117 comes as standard with air conditioning, heat-insulating green glass, four-fold power windows and the Radio Audio 20 CDwith CD / DVD player, whose playback is via a color display on the center console with a diagonal of 14.7 centimeters (from November 2014 on request 17.8 centimeters) and which has a Bluetooth interface with handsfree, an aux-in port ( in the center armrest), a telephone keypad and six speakers. In addition, the base model has heated and electrically adjustable exterior mirrors, a heated rear window and LED daytime running lights in round design. The upholstery consists of a combination of fabric and leather imitation.

Special features include the 7G-DCT automated seven-speed dual-clutch transmission , Speedtronic variable speed cruise control with brake control, heated seats for driver and front passenger, various partial and full leather seats, leather steering wheel, auxiliary heating, the two-zone automatic climate control system Thermotronic , from B-pillar darkened windows and a panoramic sunroof in the price list. Furthermore, Bi-xenon headlamps, the Intelligent Light System , fog lights (only with standard reflection headlights ), the integrated navigation system Becker Map PilotThe display comes in two or even three-dimensional versions via the standard display, the Comand Online multimedia system , which includes the Linguatronic voice control system, the Harman Kardon Logic 7 surround sound system with twelve speakers and a power of 450 watts, sidebags in the rear, the occupant protection system Pre-Safe , the proximity control system Distronic Plus , an Active Parking Assist including Parktronic and a reversing camera offered.

In addition to the basic equipment, the equipment lines Urban and the AMG Line are offered. In addition, the model CLA 250 Sport , which was developed in collaboration with Mercedes-AMG.

Urban

Characteristics of the Urban equipment line include the twin-flow exhaust system with angular stainless steel tailpipe trims, the silver-colored rear diffuser, the black chrome-plated radiator grille and 18-inch 5-spoke light-alloy wheels on the exterior. In addition, the urban line includes a sports suspension, whereby the body is lowered by 20 mm at the front and 15 mm at the rear. This can be waived on request in favor of the ordinary comfort suspension.

In the interior, this line has partially in leather imitation Integral sports seats front, a leather-covered multifunction steering wheel and a leather-covered shifter. In addition, contrasting stitching is sewn at various points, leather door panels and leather at various points.

AMG Line

The highest equipment line AMG Line has AMG front, side and rear aprons, 18-inch AMG five-spoke light alloy wheels, a silver-colored grille with chrome trim, and a double-flow exhaust system with rectangular stainless steel tailpipe trims. There is also a sports suspension, the car is lowered; the brake discs are perforated and at the rear is a body color held diffuser.

The seats with red contrasting stitching this line are partially covered with imitation leather, the multifunction sports steering wheel is flattened below and leather like the gear lever and provided with red contrasting stitching. Finally, the AMG Line contains a sports pedal system and at various points red contrasting stitching and chrome trim.

Sports

The top petrol model, which was further developed by AMG itself, is available since December 2013 as a special sports model CLA 250 Sport . From July 2017, this model will be replaced by a "small" AMG version of the CLA 45 AMG, and should get the model name CLA 25 AMG.

Based on the highest equipment line AMG Sport , these vehicles offer a diamond grill with a single louvre in this grill. Compared to vehicles with the AMG Line equipment line , red trim elements are attached to the sports models on both the front and rear aprons. In addition, the headlights have red Akzentringe. Red calipers are used on both axles. Finally, sport badges are attached to the fenders of these models . On the technical side, the chassis was further developed by AMG.

Night Package

The Night package can not be combined with the basic equipment. Obligatory is therefore the choice of one of the two equipment lines. Vehicles equipped with the Night package feature black-painted and polished 18-inch 5-twin-spoke light-alloy wheels, a black-painted louver in the diamond radiator grille and black-painted exterior mirrors. In addition, the windows are dark tinted from the B-pillar and the window surround are glossy black.

Exclusive Package and AMG Exclusive Package

The Exclusive package is distinguished by standard leather seats, which are heated at the front and continue to be equipped with a 4-way lumbar adjustment, as well as a leather-covered instrument panel, leather-covered door center panels, leather curbs and an ornamental element in aluminum from the other models and packages. Furthermore, models equipped with this package have a leather-covered steering wheel and a leather-covered selector lever. For the AMG Line , an extended AMG Exclusive package with black- cut leather upholstery , floor mats in corduroy with red decorative seams and an ornamental element in longitudinally ground aluminum can be ordered.
