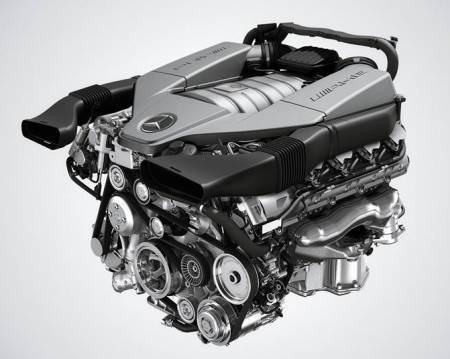

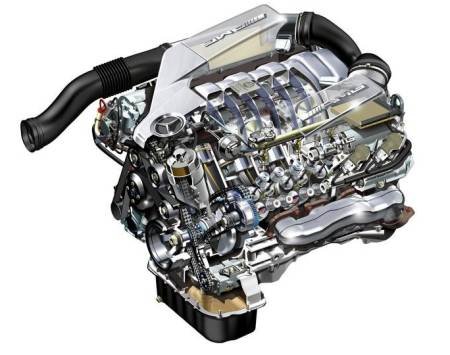

Mercedes-Benz M156 M159 V8 engine
| Manufacturer: | Mercedes-AMG |
| Production period: | since 2006 |
| Style: | V , eight-cylinder |
| Engines: | 6.2 liters (6208 cm³) |
| Previous model: | M 113 |
| Successor: | M 157 , M 177 |
| Similar models: | M 159 |
The engine was introduced in 2006 in the E-Class (model series 211) with the model designation E 63 AMG and some time later in other models. Most recently, the new engine was used in the facelifted SL . As in most series, it replaced the V8 supercharged engine of the M 113 series . The engine has a stepless phase adjustment of all four camshafts.
When the M 156 was presented by Mercedes-AMG GmbH in July 2005, it was the world's first engine with cylinder liners coated with electric arc spraying (LDS). The NANOSLIDE® technology developed and named by Mercedes significantly reduces the friction losses compared to gray cast iron bushes.
The M 156 has a capacity of 6208 cc and produces, depending on the model variant, an output between 336 and 386 kW (457 to 525 hp). In the 38th calendar week of 2008, the 40,000th M 156 built. Furthermore, AMG relies on the principle of "one man, one engine", which means that an engine is completely assembled by a single AMG employee. At the end of the production cycle, the engine receives a sticker with the name of the respective mechanic.
Applications:
- 2006 E 63 AMG
- 2006 ML 63 AMG
- 2006 R 63 AMG
- 2006 S 63 AMG
- 2006 CL 63 AMG
- 2007 CLK 63 AMG
- 2007 CLS 63 AMG
- 2008 C 63 AMG
- 2008 SL 63 AMG
The M156 is the first V8 automobile engine designed autonomously by Mercedes-Benz subsidiary Mercedes-AMG, as previous AMG engines have always been based on original Mercedes engines. The engine was designed to be a naturally aspirated racing unit, and will also be used in a number of high-performance "AMG"-badged Mercedes-Benz models.
The M156 displaces 6,208 cc (6.208 L; 378.8 cu in) and shares very little with other Mercedes-Benz engine families like the M155. The bore spacing, block design, and other features are unique to the AMG engine.
Although this engine displaces 6.208 liters, the engine is marketed as the "6.3" to commemorate the famed Mercedes-Benz M100 engine, Mercedes' first production V8 which initially displaced 6.3L.
The first AMG carwas based on the Mercedes-Benz 300SEL 6.3, and used an enlarged 6.8L Mercedes-Benz M100 engine.
The engine uses a 102.2 mm (4.02 in) bore and 94.6 mm (3.72 in) stroke. Output is 375 kW (503 hp) at 6800 rpm with 630 N·m (464.7 lb·ft) of torque at 5200 rpm.
The engine, however, has been uprated to produce 518 hp (386 kW) (and 465 lb·ft (630 N·m) of torque) in the late 2007 S 63, E 63, SL 63, CLS 63 & CL 63 models.
Mercedes has claimed it is the world's most powerful naturally aspirated V8 engine.
M159
Further development M 159
The Mercedes-Benz SLS AMG sports car uses an enhanced variant called the M 159 . For the power increase to 420 kW (571 hp), 435 kW (591 hp) in the SLS GT and 464 kW (631 hp) and 650 Nm of torque in the Black Series model, the engine was thoroughly revised, especially the pistons (forged), the crankcase (aluminum) and the intake system (magnesium). In addition, the engine is equipped with dry sump lubrication
It is a version used in Mercedes-Benz SLS AMG. Compared to the standard AMG engine, the SLS's engine includes an all-new intake system, reworked valve train and camshafts, the use of flow-optimised tubular steel headers and dethrottling of the exhaust system. The engine also utilizes a dry-sump lubrication system to lower the center of gravity of the car.
| Engine code | Years | Displacement (Bore x Stroke) | Compression (:1) | Power @rpm | Torque @rpm | Redline (rpm) |
|---|---|---|---|---|---|---|
| M 159 | 2010- | 6,208 cc (6.208 L; 378.8 cu in) (102.2 mm × 94.6 mm (4.02 in × 3.72 in)) | 11.3 | 571 PS (420 kW; 563 hp) @6800 | 650 N·m (479 lb·ft) @4750 | 7200 |
| M 159 | 2012- | 6,208 cc (6.208 L; 378.8 cu in) (102.2 mm × 94.6 mm (4.02 in × 3.72 in)) | 11.3 | 591 PS (435 kW; 583 hp) @6800 | 650 N·m (479 lb·ft) @4750 | 7200? |
| M 159 | 2013- | 6,208 cc (6.208 L; 378.8 cu in) (102.2 mm × 94.6 mm (4.02 in × 3.72 in)) | 11.3 | 631 PS (464 kW; 622 hp) @7400 | 635 N·m (468 lb·ft) @5000 | 8000 |
Data
| Engine designation |
model | engine code | Bore × stroke [mm] |
Displacement [cm 3 ] |
compression | Power (PS) at speed [min-1 ] |
Torque [Nm] at speed [min -1] |
|---|---|---|---|---|---|---|---|
| M 156 E 63 | C 63 AMG (W / S / C 204) | 156985 | 102.2 × 94.6 | 6208 | 11.3: 1 | 336 (457) at 6800 | 600 at 5000 |
| C 63 AMG with AMG Performance Package (W / S / C 204) | 358 (487) at 6800 | 600 at 5000 | |||||
| CLK 63 AMG (C / A 209) | 156982 | 354 (481) at 6800 | 630 at 5000 | ||||
| CLK 63 AMG Black Series (C 209) | 373 (507) at 7200 | 630 at 5250 | |||||
| C 63 AMG Edition 507 (W / S / C 204) | 373 (507) at 6800 | 610 at 5000 | |||||
| ML 63 AMG (W 164) | 156980 | 375 (510) at 6800 | 630 at 5200 | ||||
| R 63 AMG (W / V 251) | |||||||
| CLS 63 AMG (C 219) | 156983 | 378 (514) at 6800 | |||||
| E 63 AMG (W / S 211) | 378 (514) at 6800 | ||||||
| C 63 AMG Black Series (C 204) | 380 (517) at 6800 | 620 at 5200 | |||||
| CL 63 AMG (C 216) | 156984 | 386 (525) at 6800 | 630 at 5200 | ||||
| S 63 AMG (W / V 221) | |||||||
| SL 63 AMG (R 230) | |||||||
| E 63 AMG (W / S 212) | |||||||
| M 159 E 63 | SLS AMG (C / R 197) | 420 (571) at 6800 | 650 at 4750 | ||||
| SLS AMG GT (C / R 197) | 435 (591) at 6800 | 650 at 4750 | |||||
| SLS AMG Black Series (C 197) | 464 (631) at 7400 | 635 at 5500 |
