Mercedes-Benz M 260 / M 264 Engine
| Mercedes Benz | |
|---|---|
 |
|
| M 264 | |
| Manufacturer: | Mercedes Benz |
| Production period: | since 2017 |
| Style: | In-line engine , four-cylinder |
| Engines: | 1.5 liters (1497 cm³) 2.0 liters (1991 cm³) |
| Previous model: | M 270 / M 274 |

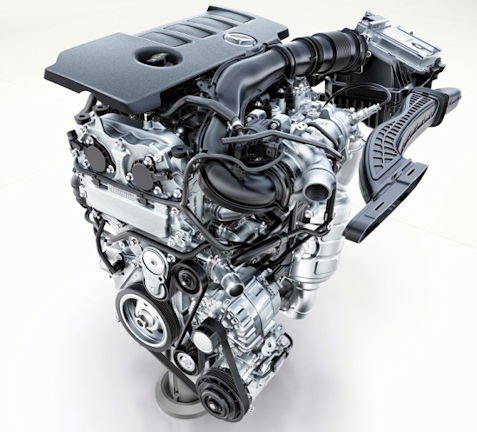

The M 260 / M 264 is a four-cylinder in line petrol engine from Mercedes-Benz .
The M 260 / M 264 is a successor to the M 270 / M 274 and part of a new, modular engine generation that will include 4 and 6 cylinder diesel engines as well as 4 and 6 cylinder gasoline engines . A high number of identical parts are used. The output increased of over 6 percent compared to its predecessor with the possibility for transversal and longitudinal installation:
- M 260:Transverse installation as motor in models with driven front axle (front wheel drive)
- M 264: longitudinally as motor in models with driven rear axle (rear wheel drive)
The displacement of the four-cylinder in - line engine is 1991 cm³ with a bore of 83 mm and a stroke of 92 mm, with a cylinder spacing of 90 mm. The compression ratiois 10.5 with aluminum four-valve cylinder head .
The change of charge is controlled by four valves per cylinder ( four-valve technology ) and two overhead camshafts driven by a timing chain . On the inlet side, the M264 has the variable valve control CAMTRONIC .The engine has a TwinScroll - turbocharger with an electric wastegate actuator. The twin-scroll loader combines the exhaust gas channels of two cylinders each in a flow-optimized manifold.
Behind the turbine of the turbocharger first a three-way catalyst is used. In addition, a particulate filter is fitted as standard in the underbody of the vehicle . Thus, the M 264 is one of the first gasoline engines with particulate filter.
Similar to the new inline six-cylinder gasoline engine M 256 gets the M 264 - but not the M 260 - a 48-V electrical system , in addition to the existing 12-volt electrical system. However, a belt-driven starter generator (RSG) is used here, replacing the alternator and starter. This can support the combustion engine for a short time with up to 10 kW (14 hp) in the speed range up to 2,500 rpm (boost function from the 48 V accumulator) and allows a partial recuperation of the vehicle's kinetic energy during braking in these 48 V batteries. Accumulator. In addition, the engine can be turned off while driving to sail without fuel consumption, Thus, every vehicle equipped with the M 264 should actually become a mild hybrid On C300 W205 Mopf but shows that Mercedes also built by M-264 variants that are built without a belt starter generator and without 48-V battery, but with a classic starter and alternator.The engine also has an electric coolant pump at 48V level.
M 260 E20 DE LA
| Designation | model series | Construction |
|---|---|---|
| Displacement: 1991 cc, power: 140 kW (190 hp) at 5500 rpm, torque: 300 Nm at 1,800-4,000 rpm | ||
| A 220 A 220 4MATIC |
Series 177 | since 07/2018 |
| Displacement: 1991 cc, Power: 165 kW (224 hp) at 5,500 rpm, Torque: 350 Nm at 1,800-4,000 / min | ||
| A 250 A 250 4MATIC |
Series 177 | since 03/2018 since 07/2018 |
| Displacement: 1991 cc, Power: 225 kW (306 hp) at 5,800-6,100 / min, Torque: 400 Nm at 3,000-4,000 / min | ||
| A 35 4MATIC | Series 177 | from 01/2019 |
M 264 E15 DEH LA
| Designation | model series | Construction |
|---|---|---|
| Capacity: 1497 cc, power: 135 + 10 kW (184 + 14 hp) at 5,800-6,100 / min, torque: 280 Nm at 3,000-4,000 / min | ||
| C 200 | Series 205 | since 04/2018 |
M 264 E20 DEH LA
| Designation | model series | Construction |
|---|---|---|
| Displacement: 1991 cc, Power: 190 kW (258 hp) at 5,800-6,100 / min, Torque: 370 Nm at 1,800-4,000 / min | ||
| C 300 | Series 205 | since 06/2018 |
| Capacity: 1991 cc, power: 220 + 10 kW (299 + 14 hp) at 5,800-6,100 / min, torque: 400 Nm at 3,000-4,000 / min | ||
| E 350 | Series 213 Series 238 |
since 04/2018 since 10/2017 |
| CLS 350 | Series 257 | from autumn 2018 |
