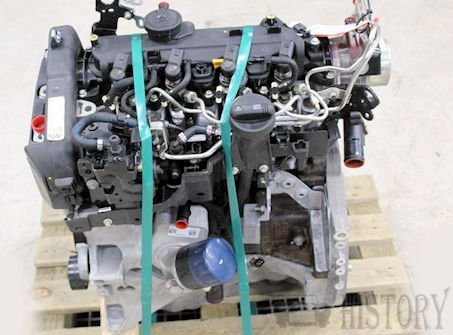

Mercedes-Benz OM 607 diesel engine
| Mercedes Benz | |
|---|---|
 | |
| OM 607 | |
| Manufacturer: | Renault |
| Production period: | since 2012 |
| Style: | Four-cylinder in - line engine |
| Engines: | 1.5 liters (1461 cm³) |
| Previous model: | none |
| Successor: | Mercedes-Benz OM 608 |
The Mercedes-Benz OM 607 is the first diesel engine to come from a cooperation between the German Daimler AG and the French automobile manufacturer Renault , and is used in the A-Class ( W 176 ), B-Class ( W 246 ) and Citan ( W 415 ).
Technology
The four-cylinder in - line engine has a cylinder bore of 76 mm, a piston stroke of 80.5 mm and a displacement of 1.461 liters. The engine is offered in total in 3 power levels that use different turbochargers (Citan up to 66 kW do not have a VTG charger) for charging. Together they have, however, the common rail - direct injection at a pressure of 1600 bar, 2 valves per cylinder and one overhead camshaft.
For the car models of the A- and B-Class, the base engine of Renault was revised according to specifications of Mercedes-Benz and adapted to the rest of the engine range. Starter, alternator, air conditioning compressor and the gasoline engine of the M 270 series engine mounts come from the Mercedes shelf, and a dual-mass flywheel is installed. Thanks to these changes, the gearboxes from Mercedes-Benz can be mounted.
As power transmission there are the following transmission variants:
- Five-speed manual transmission for Citan with 55 kW or 66 kW
- Six-speed manual transmission for Citan with 81 kW
- Six-speed manual transmission for A- and B-Class
- Seven-speed dual clutch transmission as option for A and B class
Variants
OM 607 DE 15 LA red.
| sales designation | model series | Construction period |
|---|---|---|
| Capacity: 1461 cc, power: 55 kW (75 hp) at 4000 rpm, torque: 180 Nm at 1750-2500 rpm | ||
| Citan 108 CDI | W 415 | since 2012 |
OM 607 DE 15 LA
| sales designation | model series | Construction period | emission standard |
|---|---|---|---|
| Capacity: 1461 cc, power: 66 kW (90 hp) at 4000 rpm, torque: 200 Nm at 1750-3000 rpm | |||
| Citan 109 CDI | W 415 | since 2012 | 5 euro |
| Displacement: 1461 cc, Power: 66 kW (90 hp) at 2750-4000 / min, Torque: 220 Nm at 1750-2750 / min | |||
| A 160 CDI | W 176 | 09/2013 - 09/2015 | 5 euro |
| B 160 CDI | W 246 | since 2013 | 5 euro |
| Displacement: 1461 cc, Power: 66 kW (90 hp) at 2750-4000 / min, Torque: 240 Nm at 1700-2500 / min | |||
| A 160 d | W 176 | 09/2015 - 05/2018 | Euro 6 |
| Displacement: 1461 cc, Power: 81 kW (110 hp) at 4000 rpm, Torque: 240 Nm at 1750-2750 / min | |||
| Citan 111 CDI | W 415 | since 2013 | 5 euro |
| Capacity: 1461 cc, power: 80 kW (109 hp) at 4000 rpm, torque: 260 Nm at 1750-2500 rpm | |||
| CLA 180 CDI | C 117 | since 2013 | 5 euro |
| GLA 180 CDI | X 156 | 09/2014 - 12/2016 | Euro 6 |
| GLA 180 d | since 01/2017 | ||
| A 180 CDI BlueEFFICIENCY | W 176 | 07/2012 - 05/2013 | 5 euro |
| A 180 CDI BlueEFFICIENCY Edition | 03/2013 - 09/2015 | ||
| A 180 CDI | 05/2013 - 09/2015 | ||
| A 180 d | 09/2015 - 05/2018 | Euro 6 | |
| A 180 d BlueEFFICIENCY Edition | |||
| B 180 CDI BlueEFFICIENCY B 180 CDI | W 246 | 2012-2013 since 2013 | 5 euro |
| B 180 CDI BlueEFFICIENCY Edition | W 246 | since 2013 | 5 euro |
