Motor Cars
USA
1950s

Pontiac Chieftain Second generation

Pontiac Chieftain 2nd gen (1955-1957)

Class

Motor Car

Model years

1955 to 1957

Body style

2-4 door sedan
2-4 door hardtop
2-4 door station wagon

Layout

FR layout

Platform

GM A platform

Engine

1955: 287.2 cu in (4.7 L) V8
1956: 316.6 cu in (5.2 L) 2(192-205hp) or 4(216-227hp) bbl. V8
1957: 346 cu in (5.7 L) V8

Transmission

3-speed manual
Dual-Range Hydra-Matic , Strato-Flight Hydra-Matic

Wheelbase

122 in (3,099 mm)

Length

1955: 203.2 in (5,161 mm)
1956: 205.6 in (5,222 mm)
1957: 206.8 in (5,253 mm)

Width

75.1 in (1,908 mm)

Height

60.5 in (1,537 mm)

Curb weight

3,179–3,966 lb (1,442–1,799 kg)

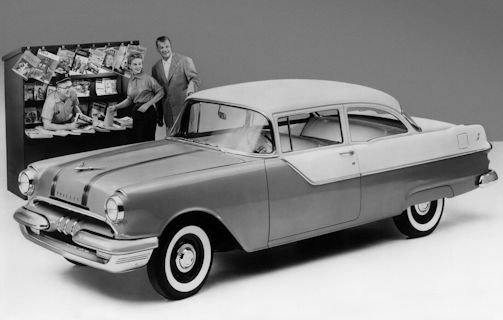

In 1955 a completely revised Chieftain was introduced. The cars were much slimmer and lower; the moulded rear fenders had disappeared as well as tapered alligator shape of the hood. What remained was the shark's mouth and the car grew small tail fins. Also new were the panoramic windscreens. To the known from the previous body forms a 3-door station wagon came. The special versions were called Chieftain 860, the deluxe versions Chieftain 870. The biggest change, however, was he old, side-mounted in-line engines had been dropped and replaced by a new V8 engine with OHV Valve control replaced. The 4,706-cc large engine delivered 173 bhp (127 kW) at 4400 rpm or 180 hp (132 kW) at 4600 rpm

1956 were the cars rocket-shaped inserts on the front bumpers and there was an additional body shape a 4-door hardtop sedan. the drive V8 was enlarged to 5.2 L t All vehicles got a larger V8 engine, which delivered an output of 192-205 bhp (141-151 kW) at 5,188 cc.

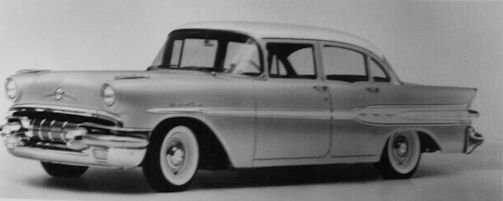

In 1957, the design was slightly revised again: the cars were larger tail fins and a contrasting side strip, which was widened in the tail fins. This design called Pontiac "Star Flight". Also, a larger engine was installed. The V8 now 5.7L made 227-252 bhp (167-185 kW) and had a displacement of 5,686 cc. The Pontiac was assembled in Australia by Holden, badged as the Pontiac Super Chief model.

Pontiac Chieftain 2nd gen (1955-1957)

Related items
Pontiac Chieftain | Vehicles launched in 1955 | American 1950s
