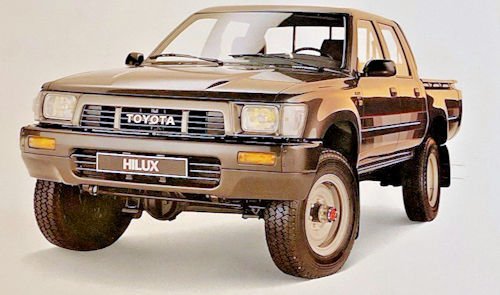

Toyota Hilux Fifth Generation

Model code	N80 N90 N100 N110
Production	1988 to 1997
Body style	2-4 door pickup truck
Layout	Front-engine, rear-wheel-drive Front-engine, four-wheel-drive
Engine	Petrol: 1.8 L 2Y-U I4 2.2 L 4Y I4 2.4 L 22R, 22R-E I4 3.0 L 3VZ-E V6 Diesel: 2.4 L 2L I4 2.8 L 3L I4
Transmission	4-speed manual 5-speed manual 4-speed automatic
Wheelbase	Regular cab: 2,616 mm (103.0 in) Regular cab (long bed): 2,850 mm (112.2 in) Xtracab: 3,086 mm (121.5 in) Xtracab V6: 3,096 mm (121.9 in)
Length	Regular cab: 4,435 mm (174.6 in) Regular cab (long bed): 4,724 mm (186.0 in) Xtracab: 4,905 mm (193.1 in) DLX regular cab (long bed 4WD): 4,719 mm (185.8 in) DLX regular cab (4WD): 4,430 mm (174.4 in)
Width	1,689 mm (66.5 in)
Height	1988–91 regular cab: 1,544 mm (60.8 in) 1988–91 regular cab (long bed): 1,539 mm (60.6 in) 1988–91 Xtracab (2WD): 1,549 mm (61.0 in) 1988–91 regular cab (long bed 4WD): 1,704 mm (67.1 in) 1988–91 Xtracab (4WD): 1,709 mm (67.3 in) 1991–97 regular cab: 1,590 mm (62.6 in) 1991–97 regular cab: 1,595 mm (62.8 in) 1991–97 Xtracab (4WD): 1,755 mm (69.1 in) 1991–97 regular cab (4WD): 1,750 mm (68.9 in)
Curb weight	1,200–1,550 kg (2,650–3,420 lb)

The Hilux, which was produced from August 1988, grew in wheelbase to 2616 mm in the two-door standard model. The seams of the cargo area body were now particularly sealed, since they were previously susceptible to rust. Now there was also more space behind the front seats than in the last generation, for an extra charge, swing seats were available for the rear passengers. The optional automatic transmission now had 4 gears.

The Hilux received a slight facelift in early 1992, with primarily changed the grill and the new Toyota emblem was attached. At the same time, the versions for the North American market were now produced at the NUMMI plant in Fremont, California . As of March 1995, the Toyota Tacoma replaced the Hilux in North America.

The Hilux of the type YN 80 was produced from April 1989 to March 1997 as a licensed construction also by Volkswagen under the name Taro . The conception and the parts came from Toyota. The assembly was carried out at Volkswagenwerk Hannover until 1995 , and then until the end of production at Volkswagenwerk Emden . The Taro was like the Hilux in the versions as a two-seater (Single Cab) and as XtraCab and DoubleCab available.

Engines

gasoline engines

• 1988-1995: 1.8 liters (1812 cc), 2Y-U, 58 kW (79 hp)
• 1988-1995: 2.2 liters (2237 cc), 2Y-U, 69 kW (93 hp)
• 1989-1995: 2.4 liter (2366 cc), 22R-E SOHC EFI I4, 84 kW (112 hp)
• 1989-1995: 3.0 liter (2958 cc), 3VZ-E V6 FI, 112 kW (150 hp)

diesel engines

• 1988-1995: 2.4 liter vortex chamber diesel (2446 cc), 59 kW (80 hp)
• 1988-1995: 2.4 liter vortex chamber diesel (2446 cc), 61 kW (82 hp)
