Motor Cars
Germany
2000s

Opel Vauxhall Vectra C

Opel Vauxhall Vectra C

Production period:

2002 to 2008

Class :

middle class

Body versions :

Sedan , hatchback ,station wagon

Engines:

Gasoline: 1.6-3.2 liters (74-206 kW)
Diesel : 1.9-3.0 liters (74-135 kW)

Length:

4611-4840 mm

Width:

1798 mm

Height:

1460-1500 mm

Wheelbase:

2700-2830 mm

Curb weight :

1395-1638 kg

The Opel Vectra C is a mid- size vehicle from Opel , which was produced from spring 2002 to summer 2008. This replaced by then the seven years Vectra B.The presentation took place in March 2002 at the Geneva Motor Show . The vehicle is based on GM's Epsilon platform.

History

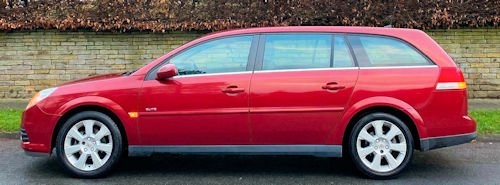

The sale of the Vectra C started in April 2002, first with the notchback sedan, while the hatchback version was introduced in September 2002 as a sporty GTS with standard lowered body. The caravan was presented at the IAA and was available from October 2003 at the dealer. This has a longer wheelbase than the sedan.The Vectra C is longer than its predecessor. It also played a role that the Opel Omega was discontinued in June 2003, as Opel wanted to compete with the Vectra in the more upper middle class . With the epsilon-platform vehicle with the crosslinking was carried out at Opel CAN bus introduced, also in the Opel Astra H was used.

Further innovations were the electrohydraulic power steering , which replaced the previously used purely hydraulic power steering, as well as the optionally available active chassis IDS + with electronic damper adjustment CDC (Continuous Damping Control) from summer 2004 .Like its predecessors, the Vectra C was also sold with notchback, hatchback and as a station wagon ( caravan ).

Opel Vauxhall Vectra C

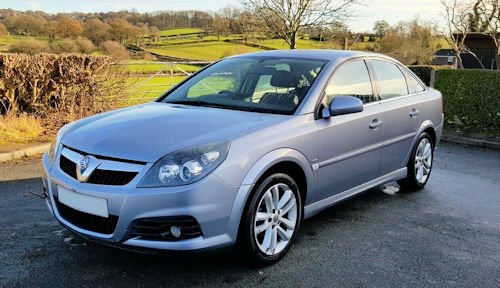

After a first minor revision in March 2004, the Vectra C was subjected to a comprehensive facelift in June 2005 , which was externally visible on a revised front with striking headlights similar to the Astra H. In addition, the front apron and the grille has been redesigned. Inside, higher-grade plastics were used. The diesel engines received standard maintenance-free particle filters . The 3.2-liter V6 gasoline engine accounted for, instead came in two versions of GM known 2.8-liter V6 with turbocharger used.

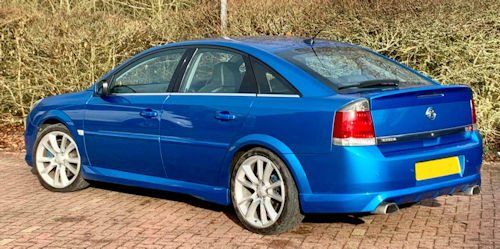

The sports version of the Vectra,OPC and using the VXR name in the United Kingdom for Vauxhall. These high performance variants were only available as hatchbacks and estate.

From June 24, 2005, the OPC Line package with front spoiler lip, rear apron lip, side skirts and rear spoiler (sedan) or roof spoiler (estate) was offered. As of 12 October 2005, included additional dark-tinted front and rear lights.  From 30 November 2005 included, in addition to the sedan two visible, chromed exhaust tailpipes (for 2.2 DIRECT, 2.0 Turbo, 2.8 V6 Turbo and 3.0 V6 CDTI) or a visible, chromed tailpipe (for 1.6, 1.8 and 1.9 CDTI ). At the same time it was renamed OPC Line package . As of March 1, 2006, the OPC Line Package 2 was also offered. In addition to the complete range of equipment of the OPC Line package, it also included bumpers in the OPC design, OPC leather steering wheel and OPC gear knob (only for 6-speed manual gearboxes). It was not available for 1.6 and 2.8 V6 Turbo. From October 16, 2006, the previous OPC Line package wore the designation OPC Line Package 1 with the same equipment .

As of June 22, 2007, the sports package replaced the previous OPC Line Package 1 and OPC Line Package 2 . The sports package had the complete equipment of the OPC Line Package 2 . In addition, it included 7½ J x 18 light-alloy wheels in Y-spoke design with 225/45 R18 tires, sports suspension (body 20 mm lowered) and sports seats (fabric / leather). Instead of sports seats (fabric / leather), the sports package could also be ordered with Recaro sports seats.

In Argentina , Brazil and Uruguay General Motors offers the notchback and hatchback versions of the Vectra C, in Chile and Mexico the Vectra C as Chevrolet Vectra .

From 2006 to 2009, under the Saturn product name of GM, the Saturn Aura was manufactured on the same platform , also using components of the European Vectra model. Subsequently, the export of the model started to Egypt, where it is now offered as Opel Vectra. General Motors Egypt is responsible for sales there .

The production of Vectra C and Signum was completed in July 2008.

Opel Vauxhall Vectra C

Related items
Opel-Vaux Vectra | Vehicles launched in 2002 | Germany 2000s

Rating

Have you Say: Rate this
Overall Vote
  • 1
  • 2
  • 3
  • 4
  • 5
1. Performance & Specification
  • 1
  • 2
  • 3
  • 4
  • 5
Built to last?
2. Appearance Overall *Cool factor*
  • 1
  • 2
  • 3
  • 4
  • 5
How good it looks ?

Technical

Technical
  • Opel Vectra C details (2002-2008)

    Engines

    Petrol engines

    model

    engine type

    capacity

    Cylinders / Valves

    Power (kW (hp) / min -1 )

    Max. Torque (Nm at min -1 )

    construction time

    emission standard

    1.6

    Z16XE

    1598 cc

    R 4 / 16V

    74 (100) / 6000

    150/3600

    08 / 2004-05 / 2005

    Euro 4

    1.6 Twinport

    Z16XEP

    1598 cc

    R4 / 16V

    77 (105) / 6000

    150/3900

    06 / 2005-07 / 2008

    Euro 4

    1.8

    Z18XE

    1796 cm³

    R4 / 16V

    90 (122) / 6000

    167/3800

    03 / 2002-05 / 2005

    Euro 4

    1.8

    Z18XER

    1796 cm³

    R4 / 16V

    103 (140) / 6300

    175/3800

    06 / 2005-07 / 2008

    Euro 4

    2.0 Turbo

    Z20NET

    1998 cm³

    R4 / 16V

    129 (175) / 5500

    265 / 2500-3800

    04 / 2003-07 / 2008

    Euro 4

    2.2

    Z22SE

    2198 cc

    R4 / 16V

    108 (147) / 5600

    203/4000

    03 / 2002-03 / 2004

    Euro 4

    2.2 direct

    Z22YH

    2198 cc

    R4 / 16V

    114 (155) / 5600

    220/3800

    10 / 2003-07 / 2008

    Euro 4

    2.8 V6 Turbo

    Z28NEL, Z28NET

    2792 cc

    V 6 / 24V

    169 (230) / 5500

    330 / 1800-4500

    06 / 2005-06 / 2006

    Euro 4

    2.8 V6 Turbo

    Z28NET

    2792 cc

    V6 / 24V

    184 (250) / 5500

    350 / 1800-4500

    01 / 2006-07 / 2008

    Euro 4

    OPC

    Z28NET

    2792 cc

    V6 / 24V

    188 (255) / 5500

    355 / 1800-4500

    08 / 2005-06 / 2006

    Euro 4

    OPC

    Z28NET, Z28NEH

    2792 cc

    V6 / 24V

    206 (280) / 5500

    355 / 1800-4500

    06 / 2006-07 / 2008

    Euro 4

    3.2 V6

    Z32SE

    3175 cc

    V6 / 24V

    155 (211) / 6200

    300/4000

    07 / 2002-05 / 2005

    Euro 4

    Irmscher i35



    3175 cc

    V6 / 24V

    222 (302) / 5800

    370/4800

    2004-2005

    Euro 3

    Diesel engines

    model

    engine type

    capacity

    Cylinders / Valves

    Power (kW (hp) / min -1 )

    Torque (Nm at min -1 )

    construction time

    emission standard

    1.9 CDTI

    Z19DTL engines

    1910 cm³

    R4 / 8V

    74 (100) / 3500-4000

    260 / 1700-2500

    06 / 2005-07 / 2008

    Euro 4

    1.9 CDTI

    Z19DT

    1910 cm³

    R4 / 8V

    88 (120) / 3500-4000

    280 / 2000-2750

    03 / 2004-07 / 2008

    Euro 4

    1.9 CD TI *

    Z19DTH

    1910 cm³

    R4 / 16V

    110 (150) / 4000

    320 / 2000-2750

    03 / 2004-07 / 2008

    Euro 4

    2.0 DTI

    Y20DTH

    1995 cm³

    R4 / 16V

    74 (100) / 4000

    230 / 1500-2500

    07 / 2002-03 / 2004

    Euro 3

    2.2 DTI

    Y22DTR

    2172 cc

    R4 / 16V

    92 (125) / 4000

    280/1500 to 2750

    07 / 2002-11 / 2004

    Euro 3

    3.0 V6 CDTI

    Y30DT

    2958 cc

    V6 / 24V

    130 (177) / 4000

    370 / 1900-2800

    08 / 2003-05 / 2005

    Euro 3

    3.0 V6 CD TI *

    Z30DT

    2958 cc

    V6 / 24V

    135 (184) / 4000

    400 / 1900-2700

    06 / 2005-07 / 2008

    Euro 4

    The 1.9-liter diesel engines are from Fiat and have been further developed in collaboration with Opel by the specially-founded Fiat Opel Powertrain. The 2.0-liter turbo gasoline engine is an engine that SAAB and Opel cooperated on. The V6 diesel comes in both stages of Isuzu.

    • The CDTI lettering of the 1.9- (110 kW) and 3.0 (135 kW) diesels are distinguished from the other diesel engines by the two red-colored "TI" letters.

    The lettering of the Vectra C GTS with turbocharged gasoline engine was provided with a yellow T.
