Motor Cars
Britain
1950s 1960s

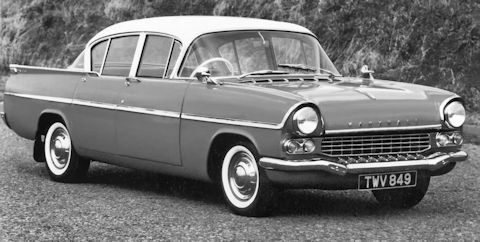

Vauxhall Velox Model PA S/Y

Vauxhall Velox Maintenance Guide  Model PA S/Y

Production period:

1958 to 1960

Body versions :

Sedan

Engines:

Gasoline: 2.3 liters (60.7 kW)

Length:

4509 mm

Width:

1740 mm

Wheelbase :

2667 mm

Curb weight :

1143-1168 kg


In October 1957, the PA series is presented as Velox and Cresta with a completely new state-of-the-art body with tail fins and panoramic windows.

The engine of the predecessor model is slightly modified and makes in this vehicle 82.5 bhp (61.5 kW). The sister model Cresta differs from the Velox by better features and two-color paint. two new six-cylinder cars had been introduced in 1957, the PA Velox and the Cresta, with 2.2-litre oversquare engines.
Vauxhall Velox Technical details Model PA S/Y
In 1959, overdrive came in as an option on the sixes, with Hydramatic automatic transmission in 1960, when the engine capacity was raised to 2.5-litres.
Features .6-Seater Saloon with 4 doors and equipment including body conformity front and rear bench-type seats with door armrests and centre armrest in rear seat; windows operated by winding handles; no-draught ventilators incorporating independent locking catches and drip channels; 2 sun visors; self-parking, 2-speed, electric windscreen wipers; 2-spoke steering wheel with horn ring; large luggage boot; sealed pre-focused head lamps; separate front parking lamps; separate front amber flashing direction indicators; twin rear lamps incorporating within translucent mouldings red reflectors and red stop lights; separate rear amber flashing indicators; number plate illuminating lamp. Accessories: centre armrest to front seat.

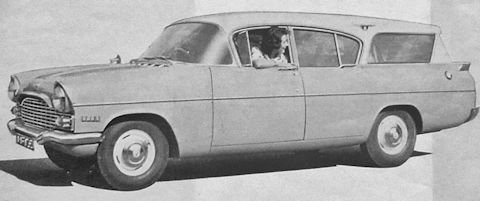

In October 1959 there is the first facelift. The grille becomes much larger and the three-part panoramic rear window gives way to a one-piece. Vauxhall changes the technology of the vehicle in October 1960. Velox Saloon and Friary Estate Car continued Power assisted braking optional extra. Final Chassis No. for 2262 cc models PA—Y 128146
Vauxhall Velox Specifications Model PA S/Y

Vauxhall Previous 50 / 66 Next

Related

Related items
Vauxhall Velox | Britain 1950s | Vehicles launched in 1958

Technical

Technical
  • DIMENSIONS AND WEIGHT:
    Wheelbase 8 ft. 9 in.
    track, front 4 ft. 6 in., rear 4 ft. 6 in.
    overall length 14 ft. 10 in., width 5 ft. 8} in.
    height (laden) 4 ft. 9 in.
    ground clearance 7 in.
    turning circle 36 ft., both locks
    fuel tank capacity 10.8 gal.

    ENGINE:
    Engine: bore 79.37 mm.
    stroke 76.20 mm.
    2,262 c.c maximum speed over 85 m.p.h.
    developing 82.5 b.h.p. at 4,400 r.p.m.
    compression ratio 7.8:1 (77.9 b.h.p. at 4,200 r.p.m. with optional low compression ratio 6.8:1 for export)
    overhead valves
    6-phase carburetter with automatic choke, accelerator pump and part-throttle economy valve
    air filter, silencer and flame arrester
    mechanical petrol pump
    pressurised cooling system with centrifugal pump and temperature indicator

    ELECTRICAL EQUIPMENT:
    oil-filled ignition coil
    12-volt 53-amp./hr. battery
    current voltage
    control regulated generator

    TRANSMISSION DRIVE LINE:
    single dry plate hydraulically operated clutch, diameter 8 in.
    recirculating ball type steering
    3 forward speeds in gearbox providing ratios of 2.866:1, 1.635 : 1, direct, reverse 3.050:1
    Vauxhall controlled synchromesh on first, second and top
    gear change lever mounted on steering column
    hypoid final drive ratio 4.111 : 1

    SUSPENSION:
    independent front wheel springing with stabiliser bar semi-elliptic rear springs with angle-set shock absorbers

    BRAKES:
    hydraulic brakes

    WHEELS TYRES
    steel disc wheels with 6.40-13 tyres.


    -Note: More Specifications and Repair Manuals available for registered users-
