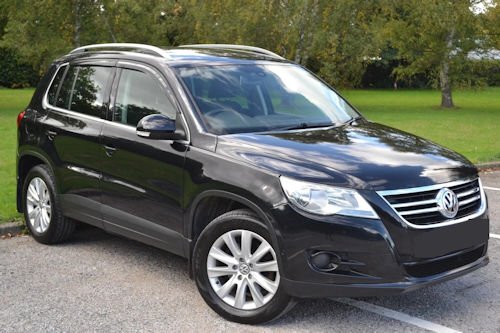

VW Tiguan first generation

VW Tiguan 1st Gen (2007-2018)

Production

2007 to 2018

Assembly

Germany, China, Russia, Vietnam

Class

Compact crossover SUV

Body style

5-door SUV

Platform

Volkswagen A6

Engine

  • Petrol:
  • 1.4 L TSI I4
  • 1.8 L TSI I4
  • 2.0 L TSI I4
  • Diesel:
  • 2.0 L TDI I4

Transmission

6-speed manual
6-speed automatic
6-speed DSG
7-speed DSG

Wheelbase

2,604–2,684 mm (102.5–105.7 in)

Length

4,427–4,432 mm (174.3–174.5 in)

Width

1,809 mm (71.2 in)

Height

1,666–1,686 mm (65.6–66.4 in)



The VW Tiguan first generation is a vehicle model of the German car manufacturer Volkswagen in the market segment of the sport utility vehicles , which was sold between August 2007 and January 2016.

History

At the beginning of December 2006, Volkswagen presented at the Los Angeles Auto Show a design study by its chief designer Murat Günak for a compact SUV, which already had great similarities with the later Tiguan. The production version was officially presented at the IAA 2007 in Frankfurt .

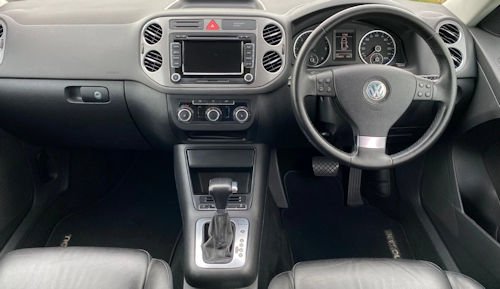

The vehicle takes over numerous modules of the model series VW Golf and VW Passat , including the 4MOTION - all-wheel drive with Haldex clutch and the self-steering parking aid . Visually, the Tiguan is based on the VW Touareg ; Interior and dimensions are based on the VW Golf Plus . The trunk volume is between 360 (with intermediate floor and emergency wheel) and 470 and 1510 liters (without spare wheel with folded rear seats).In China, the Tiguan is offered since 2010 as a long version (wheelbase 8 cm larger, total length 4.54 m).

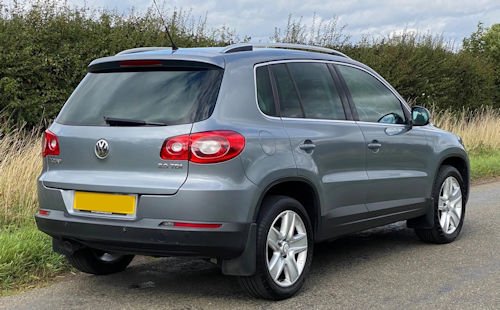

In July 2011, the Tiguan was revised ('facelift'). External differences are the less curved headlights, modified front and rear aprons and modified tail lights.

Technical innovations concerned the two gasoline engines:

At the beginning of 2011 1.4 TSI with 110 kW (150 hp) was replaced to facelift by a motor with 118 kW (160 hp).The 2.0 TSI with 147 kW (200 hp) received under the facelift a more fuel-efficient engine with 155 kW (210 hp).Half a year before the model update, the small 2.0 TSI version with 125 kW (170 hp) was canceled. The successor was a displacement engine with 130 kW (177 hp).

In the Euro NCAP crash test, the Tiguan achieved five out of five stars in occupant protection , four stars in child safety and two out of four stars in pedestrian protection .

VW Tiguan 1st Gen (2007-2018)

Technical data

The internal name of the Tiguan at Volkswagen is "Type 5N". The engines are four gasoline engines from 90 to 147 kW (122-200 hp) and three diesel engines from 81 to 125 kW (110-170 hp) power offered. Completely new developments are the 2.0-liter TDI engines with common-rail injection , which are equipped with particulate filters as standard and since April 2009 the e Euro 5 emission standard. For previously sold vehicles, which also fell below the required emission limits, but were delivered before the entry into force of the Euro 5 standard, Volkswagen offers an update of the engine control software; after that they can be rewritten to the Euro 5 standard, entry-level engine for gasoline engines is a 1.4-liter TSI engine with 90 kW (122 hp) power, the diesel engines, a 2.0-liter TDI engine with 81 kW (110 hp).

At its launch, the Tiguan was initially available only with the all-wheel drive 4Motion . Meanwhile, models can be ordered with the 1.4-liter TSI engine with 110 kW and the 2.0-liter TDI engine with 81 kW with front-wheel drive . The 103 kW diesel engine and the two 125 kW and 147 kW gasoline engines are available with a choice of 7-speed dual-clutch transmissions (up to June 2010 with 6 -speed automatic transmissions ).



Diesel engines

The widely used EA189 engines came in 2015 as part of the VW exhaust emissions scandal worldwide in the headlines. The district court in Cologne ruled in December 2017 to VW had deceived its customers insofar fraudulently.

VW Tiguan Technical details specifications 1st Gen (2007-2018)

Related items
VW Tiguan | Vehicles launched in 2007 | Germany 2000s | Germany 2010s

Rating

Have you Say: Rate this
Overall Vote
80% - 1 vote
1. Performance & Specification
80% - 1 vote
Built to last?
2. Appearance Overall *Cool factor*
80% - 1 vote
How good it looks ?

Technical

Technical

  • -Note: More Specifications and Repair Manuals available for registered users-

    Petrol engines



    1.4 TSI

    Construction period:

    06 / 2010-05 / 2015

    05 / 2015-01 / 2016

    08 / 2007-01 / 2011

    06 / 2011-05 / 2015

    05 / 2015-01 / 2016

    Engine code :

    CAXA

    CZDB

    BWK, CAVA

    CAVD

    CZDA

    Motor series:

    VW EA111

    VW EA211

    VW EA111

    VW EA211

    Engine Type:

    Series construction , direct injection

    Engine charging :

    turbocharger

    Turbocharger, compressor

    turbocharger

    Cylinders / Valves:

    4/16

    displacement:

    1390 cm³

    1395 cm³

    1390 cm³

    1395 cm³

    Max. Power at min -1 :

    90 kW
    (122 hp) / 5000

    92 kW
    (125 hp) / 5000-6000

    110 kW
    (150 hp) / 5800

    118 kW
    (160 hp) / 5800

    110 kW
    (150 hp) / 5000-6000

    Max. Torque at min -1 :

    200 Nm / 1500-4000

    220 Nm / 1500-3500

    240 Nm / 1750-4000

    240 Nm / 1500-4500

    250 Nm / 1500-3500

    Drive type, standard:

    front-wheel drive

    Drive type, optional:

    -

    all wheel drive

    -

    Transmission type, standard:

    6-speed manual transmission

    Transmission type, optional:

    -

    6-speed DSG

    7-speed DSG 3

    6-speed DSG

    Empty weight:

    1501-1512 kg

    1491 kg

    1510-1621 kg

    1522-1631 kg

    1499-1505 kg

    maximum load:

    643-654 kg

    624 kg

    624-645 kg

    633-644 kg

    628-647 kg

    maximum trailer load:

    1800 kg

    1800 kg

    2000-2200 kg

    2000 kg

    Acceleration, 0-100 km / h:

    10.9 s

    10.6 s

    9.3-9.6 s

    8.9-9.2 s

    9.3 s

    maximum speed:

    184-185 km / h

    186 km / h

    198-203 km / h

    192-197 km / h

    198-196 km / h

    Fuel consumption per 100 km, combined:

    6.5 l super

    6,4 l super

    6,7-8,4 l Super

    6,7-7,6 l super

    6.4-6.7 l super

    CO 2 emission, combined:

    152 g / km

    149 g / km

    156-199 g / km

    156-178 g / km

    149-157 g / km

    Emission standard according to EU classification:

    5 euro

    Euro 6

    5 euro

    Euro 6



    2.0 TSI

    Construction period:

    02 / 2011-05 / 2015

    02 / 2008-01 / 2011

    06 / 2011-05 / 2015

    Engine code :

    CCZD

    CCTA, CAWB, CCZA

    CCZB

    Motor series:

    VW EA888

    Engine Type:

    Series construction , direct injection

    Engine charging :

    turbocharger

    Cylinders / Valves:

    4/16

    displacement:

    1984 cm³

    Max. Power at min -1 :

    132 kW
    (180 hp) / 4500-6200

    147 kW
    (200 hp) / 5100

    155 kW
    (211 hp) / 5300-6200

    Max. Torque at min -1 :

    280 Nm / 1700-4500

    280 Nm / 1700-5000

    280 Nm / 1700-5300

    Drive type, standard:

    Four-wheel drive (4Motion)

    Transmission type, standard:

    6-speed manual transmission

    Transmission type, optional:

    7-speed DSG 3

    7-speed DSG

    7-speed DSG

    Empty weight:

    1637-1659 kg

    1653-1684 kg

    1673-1689 kg

    maximum load:

    634-648 kg

    621-639 kg

    612-616 kg

    maximum trailer load:

    2200-2500 kg

    Acceleration, 0-100 km / h:

    7.9-9.6 s

    7.4-8.5 s

    7.3-7.8 s

    maximum speed:

    201-204 km / h

    207-210 km / h

    213-215 km / h

    Fuel consumption per 100 km, combined:

    8.5-8.7 l super

    8.5-9.9 l super

    8.5-8.6 l super

    CO 2 emission, combined:

    199-203 g / km

    199-234 g / km

    199 g / km

    Emission standard according to EU classification:

    5 euro

    1 to 2010 with 125 kW (170 hp) / 4300

    2 to 2010 with 280 Nm / 1700-4200

    3 to 06/2010 with 6-speed automatic

    4 10 / 2011-04 / 2012 with 6-speed automatic or 7-speed DSG



    Diesel engines

    The widely used EA189 engines came in 2015 as part of the VW exhaust emissions scandal worldwide in the headlines. The district court in Cologne ruled in December 2017 to VW had deceived its customers insofar fraudulently.





    2.0 TDI

    2.0 TDI SCR BlueMotion Technology

    Construction period:

    06 / 2010-01 / 2016

    08 / 2007-05 / 2015

    05 / 2015-01 / 2016

    Engine code :

    CFFD

    CBAB CFFB

    CUVC

    Motor series:

    VW EA189

    VW EA288

    Engine Type:

    Series Type , Common Rail Injection , Diesel Particulate Filter

    Engine charging :

    turbocharger

    Cylinders / Valves:

    4/16

    displacement:

    1968 cm³

    Max. Power at min -1 :

    81 kW (110 hp) / 2750-4200

    103 kW (140 hp) / 4200 1

    110 kW (150 hp) / 3500-4000 1

    Max. Torque at min -1 :

    280 Nm / 1750-2750

    320 Nm / 1750-2500

    340 Nm / 1750-3000

    Drive type, standard:

    front-wheel drive

    Drive type, optional:

    -

    all wheel drive

    Transmission type, standard:

    6-speed manual transmission

    Transmission type, optional:

    -

    7-speed DSG 4

    7-speed DSG

    Empty weight:

    1540-1543 kg

    1597-1711 kg

    1535-1711 kg

    maximum load:

    612-615 kg

    628-634 kg

    614-682 kg

    maximum trailer load:

    2000 kg

    2000 kg

    2000-2500 kg

    Acceleration, 0-100 km / h:

    11.9 s

    10.2-10.7 s

    9.8 s

    maximum speed:

    174-175 km / h

    182-193 km / h

    191-198 km / h

    Fuel consumption per 100 km, combined:

    5.3 l diesel

    5.3-7.5 liters of diesel

    5.0-5.7 l diesel

    CO 2 , combined:

    139 g / km

    139-199 g / km

    130-150 g / km

    Emission standard according to EU classification:

    5 euro

    Euro 6



    2.0 TDI

    2.0 TDI SCR BlueMotion Technology

    Construction period:

    02 / 2008-10 / 2012

    10 / 2012-05 / 2015

    05 / 2015-01 / 2016

    Engine code :

    CBBB

    CFGC

    CUWA

    Motor series:

    VW EA189

    VW EA288

    Engine Type:

    Series Type , Common Rail Injection , Diesel Particulate Filter

    Engine charging :

    turbocharger

    Cylinders / Valves:

    4/16

    displacement:

    1968 cm³

    Max. Power at min -1 :

    125 kW (170 hp) / 4200 2 3

    130 kW (177 hp) / 4200

    135 kW (184 hp) / 3500-4000 1

    Max. Torque at min -1 :

    350 Nm / 1750-2500

    380 Nm / 1750-2500

    380 Nm / 1750-3250

    Drive type, standard:

    all wheel drive

    Drive type, optional:

    -

    Transmission type, standard:

    6-speed manual transmission

    7-speed DSG

    Transmission type, optional:

    -

    7-speed DSG

    -

    Empty weight:

    1681-1695 kg

    1678-1694 kg

    1727 kg

    maximum load:

    620-637 kg

    637-641 kg

    628 kg

    maximum trailer load:

    2200-2500 kg

    2200 kg

    Acceleration, 0-100 km / h:

    8.9 s

    8.5 s

    8.3 s

    maximum speed:

    201 km / h

    200-202 km / h

    204 km / h

    Fuel consumption per 100 km, combined:

    6.0-7.0 l diesel

    5.8-6.0 l diesel

    5.7 l diesel

    CO 2 , combined:

    151-159 g / km

    151-154 g / km

    150 g / km

    Emission standard according to EU classification:

    5 euro

    Euro 6

    1 for some export countries with 100 kW (136 hp) / 4200

    2 for some exporting countries with 120 kW (163 hp) / 4400

    3 to 11/2009 with 125 kW (170 hp) / 4400

    4 to 06/2010 with 6-speed automatic
