| Volkswagen AG engines |
|---|
|
| VW EA 188 |
|---|
| Production period: | 1998-2010 |
| Manufacturer: | Volkswagen AG |
| How it works: | diesel |
| displacement: | 1896 cm 3 |
| Fuel supply: | Unit injector |
| Engine charging: | VTG turbochargers |
The EA188 covers the power range from 45 to 230 kW. There are line engines with three, four or five cylinders, and a V10 engine with displacement sizes from 1.2 to 4.9 liters. EA188 engines were launched in 1998 in the VW Passat B5 used. The series EA 188 was developed starting from 1996 from the predecessor series EA 180. EA 188 was replaced by the series EA 189 .

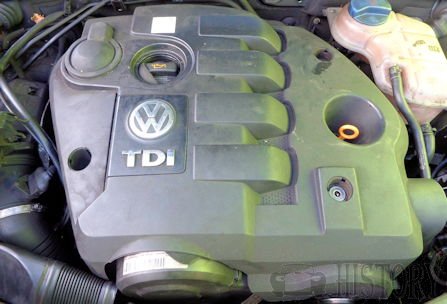

The 1.9-liter TDI engine is based essentially on the 1.9-liter TDI engine of the EA180 series and has a cylinder block made of gray cast iron. The engines are water-cooled supercharged four-cylinder in-line engines. The piston hubs and the connecting rods of the engines are trapezoidal in design. The eight valves of the motors are actuated by a toothed belt driven overhead camshaft.
The cylinder head houses the unit injector, which is actuated by an additional cam on the camshaft via a roller rocker arm. The injection pressure is up to 2050 bar. On the cylinder head, the vacuum pump of the engines is driven, which is driven by the camshaft. The oil filter housing of the engines with paper filter is upright, the engine coolant pump is integrated in the cylinder block. Part of the exhaust gas is returned to the combustion chamber. Previously, it is cooled by a heat exchanger. For engine charging, a VTG turbocharger is used. The engine control is taken over by the engine control unit Bosch EDC 15P and from 2003 by the EDC 16.
Technical data
| | 1.9-liter TDI |
|---|
| Engine code | AJM | ATJ, AUY, BVK | AVB, AVQ | AWX | ASZ, AVF, BLT | BSU | BRU, BXF, BXJ, | ANU |
|---|
| construction time | 1998-1999 | 1999-2010 | 2000-2005 | | | |
|---|
| design type | Line four-cylinder |
|---|
| Number of valves per cylinder | 2 valves |
|---|
| capacity | 1896 cm³ |
|---|
| Bore × stroke | 79.5 × 95.5 mm |
|---|
| Power at 4000 min -1 | 85 kW (115 hp) | 74 kW (101 hp) | 96 kW (130 hp) | 55 kW (75 hp) | 66 kW (90 hp) |
|---|
| Max. torque | 285 Nm at 1900 min -1 | 310 Nm at 1900 min -1 | 250 Nm at 1900 min -1 | 285 Nm at 1750-2500 min-1 | 310 Nm at 1900 min -1 | 210 Nm at 1900 min -1 | 210 Nm at 1800-2500 min-1 | 240 Nm at 1800-2500 min-1 |
|---|
| cooling | water cooling |
|---|
| mixture preparation | Unit injector |
|---|
| charging | A VTG turbocharger |
|---|
| fuel | Diesel fuel with at least 49 cetane |
|---|
| compression | 18.0: 1 | 19.0: 1 |
|---|
| motor control | Bosch EDC 15P | AVB: Bosch EDC 15P, AVQ: Bosch EDC 16 | Bosch EDC 15P | Bosch EDC 15P |
|---|
| | 1.9-liter TDI |
|---|
| Engine code | ATD, AXR, BEW, BMT | BSW | BJB, BKC, BLS, BSV, BXE | BPZ | ARL, BTB | BPX, BUK |
|---|
| construction time | | | | 2007-2008 | | 2004-2007 |
|---|
| design type | Line four-cylinder |
|---|
| Number of valves per cylinder | 2 valves |
|---|
| capacity | 1896 cm³ |
|---|
| Bore × stroke | 79.5 × 95.5 mm |
|---|
| Power at 4000 min -1 | 74 kW (101 hp) | 77 kW (105 hp) | 85 kW (115 hp) | 110 kW (150 hp) | 118 kW (160 hp) at 3750 min -1 |
|---|
| Max. torque | 240 Nm at 1800-2400 min-1 | 240 Nm at 1800 min -1 | 250 Nm at 1900 min -1 | 250 Nm at 1900 min -1 | 320 Nm at 1900 min -1 | 330 Nm at 1900 min-1 |
|---|
| cooling | water cooling |
|---|
| mixture preparation | Unit injector |
|---|
| charging | A VTG turbocharger |
|---|
| fuel | Diesel fuel with at least 49 cetane |
|---|
| compression | 19.0: 1 | | 19.5: 1 | 19.0: 1 |
|---|
| motor control | (ATD, AXR: Bosch EDC 15P) Bosch EDC 16 | Bosch EDC 15P |
|---|
