Datsun Violet 140J / 160J first generation

Datsun Violet 140J / 160J first generation
Manufacturer:  Datsun
Production: 1973 to 1978
Class:  motor car
Assembly plants:  Fukuoka, Japan
Body and chassis
Body styles:  sedan /coupe/station wagon
Chassis/body:  Steel
Engine and Powertrain
Drive:  rear
Engine Type petrol:  1.4-1.6-1.8
Transmission:  4- or 5-speed



The Datsun Violet first generation Type 710/711 was built from 1973 to 1978 in Japan.

History

The Datsun Violet also as the Datsun 140J / 160J is a from 1973 to 1981 in two generations produced model of the Japanese car manufacturer Nissan .The first generation of the Violet was a derived from the contemporary Nissan Bluebird U610 model with rear-wheel drive and rigid rear axle, which was offered in Japan as a two- and four-door sedan and two-door hardtop coupe, later as a station wagon.

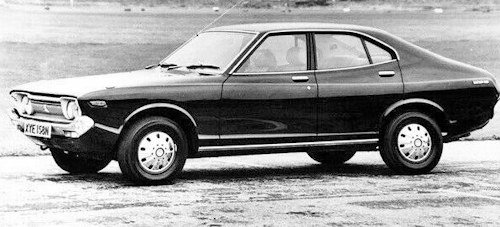

The Violet came as a four-door and coupe in October 1973 under the designations Datsun 140J (1.4 liter, 48 kW / 65 hp), 160J (1.6 liter, 52 kW / 72 hp) and 160J SSS coupe (1, 6 liters, 61 kW / 83 hp) in Japan there were also variants with 1.8-liter engine.

In 1976, the Violet received a facelift (type 711), in its train accounted for the 1.4-liter and the previous hatchback of the sedan was replaced by a notchback.

In Taiwan, the sports coupe was introduced in 1971 under the name Yue Loong VIP Brougham and produced by the Chinese Yulon Motor Company . The model was very successful there and replaced the Yue Loong Bluebird for eight years . Especially in high society, the luxury model was in demand and made for a large fan base. Nevertheless, the sister model of the Datsun Violet SSS was produced in just one generation. Thereafter, the model was replaced again in 1979 by the Bluebird.

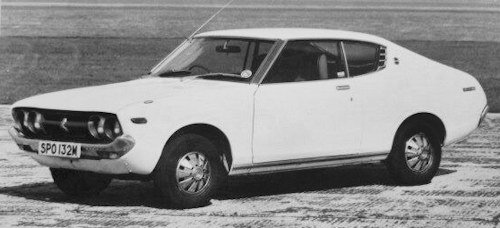

DATSUN-VIOLET-160J-SSS



Related items
Japanese Vehicles 1970s | Vehicles launched in 1973

Technical

Technical
  •  Datsun Violet  140J / 160J (710) Technical details and specifications

    Datsun Violet

    1400

    1600

    1600 SSS

    1600 SSS-E

    Engine:

    4-cylinder in-line engine (four-stroke)

    displacement:

    1428 cm³

    1595 cm³

    Bore × stroke:

    83 × 66 mm

    83 × 73.7 mm

    Power at 1 / min:

    48 kW (65 hp)
    at 5800

    53 kW (72 hp)
    at 6000

    61 kW (83 hp)
    at 6200

    84.5 kW (115 hp)
    at 6200

    Max. Torque at 1 / min:

    116 Nm at 3600

    132 Nm at 4000

    135 Nm at 4200

    143 Nm at 4400

    Compression:

    9.0: 1

    8.5: 1

    9: 1

    9.5: 1

    Fuel supply:

    1 downdraft double carburetor

    2 SU carburetors

    Electr. Injection

    Valve control:

    OHC , chain

    Cooling:

    water cooling

    Transmission:

    4- or 5-speed gearbox, stick control, rear-wheel drive
    (aW three-speed automatic)

    Front suspension:

    Struts, wishbones, coil springs, stabilizer

    Rear suspension:

    Rigid axle with semi-elliptic leaf springs

    brakes:

    Disc brakes front, drum brakes rear, aW servo (partly four-wheel drum brakes)

    Steering:

    Recirculating ball steering

    Body:

    Sheet steel, self-supporting

    Track front / rear:

    1290/1310 mm

    Wheelbase:

    2450 mm

    Dimensions:

    Saloon: 4120 × 1580 × 1405 mm
    Coupé: 4120 × 1580 × 1385 mm

    Empty weight:

    925-970 kg

    945-980 kg

    960-980 kg

    980-1000 kg

    maximum speed:

    155 km / h

    160 km / h

    165 km / h

    170 km / h

    0-100 km / h:

    not specified

    Consumption (liters / 100 km, plant):

    9.5

    9.5

    10-14

    10-14



Manuals

Download: Workshop manuals Tech Guides exclusive to registered users.
