Range Rover Sport 2nd generation


Production period:	since 2013
Body versions :	station wagon
Type:	Off road
Engines:	Gasoline : 2.0-5.0 liters (221-423 kW) Diesel engines : 2.0-4.4 liters (177-250 kW) Hybrid : 2.0 liters (297 kW) Diesel-Hybrid : 3, 0 liter (250-260 kW)
Length:	4850-4879 mm
Width:	1983 mm
Height:	1780-1803 mm
Wheelbase :	2923 mm
Curb weight :	2083-2471 kg

The second generation, which is no longer based on the Land Rover Discovery but on the new Range Rover, even though 75% of the parts are different, was unveiled on March 26, 2013 in New York City . Market launch in Europe was on 20 September 2013.

History

The Range Rover Sport is an off-road vehicle that has been offered since 2005. The first generation was based on the platform of Land Rover Discovery , but was sold for marketing reasons under the more prestigious name Range Rover , which should be addressed to a different, younger shoppers. The introduction started in February 2005.

The second generation appeared Europe-wide on 20 September 2013. It is characterized by a significant weight reduction, which is achieved by a body made entirely of aluminum. Technically, the model is based on the fourth Range Rover generation. Many components such as chassis, on-board electronics, gearbox and suspension were taken over. For model year 2018, the series will receive a revision.

The vehicle is available in various equipment lines, all differentiated by different standard extras and build on each other: S / SE; HSE; HSE Dynamic and Autobiography Dynamic.

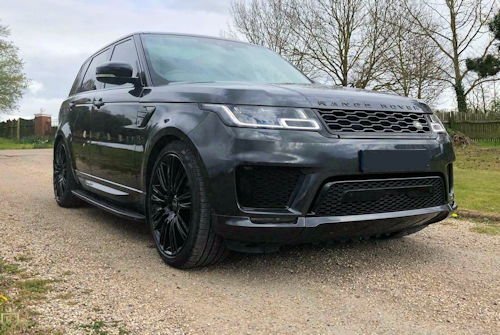

Range Rover Sport 2nd generation

On June 6, 2013, Paul Dallenbach set the Range Rover Sport 5.0 Supercharged a new best time for series SUVs on the official race track of the famous Pikes Peak International Hill Climb hill climb . The vehicle was in original condition except for an additionally installed roll cage. With a power loss of up to 40%, which is due to the thin air at the appropriate height, Dallenbach needed 12 minutes 36 seconds and 61 hundredths.

Compared to its predecessor, the off-road capabilities have been improved. The Range Rover Sport from model year 2014 has a maximum fording depth of 850 mm. New onboard systems such as "Wade Sensing", which uses radar sensors in the exterior mirrors to measure the depth of water around the vehicle, enable safe driving on unknown routes.

For the first time in the Range Rover Sport, this generation of manufacturers decided to offer two different drive variants for different requirements. Basically, the vehicle is always equipped with four-wheel drive. However, there is in addition to the already known system with reduction gear and differential lock a less expensive and 18 kg lighter, but not so powerful version with a Torsendifferential as standard equipment. This is designed for operation on paved roads and provides enough traction in everyday use. The version with the known system is especially recommended for off-road driving and towing with a trailer.

Range Rover Sport SVR (since 2014)

Land Rover announced a super sports version of Range Rover Sport at the 2014 Pebble Beach Concours d'Elegance . The modified V8 supercharged engine delivers 405 kW (550 hp) and has been on the market since October 2014. Since model year 2018, the SVR makes 423 kW (575 hp).

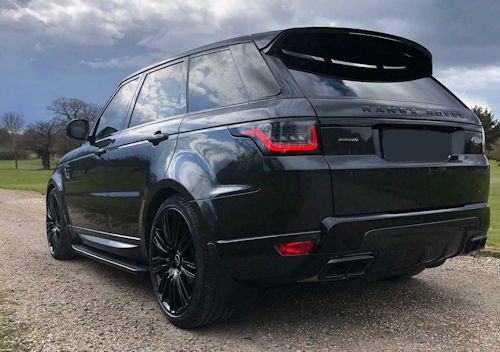

Range Rover Sport 2nd generation rear

Technical

Range Rover Sport 2nd generation Technical data

parameters	SD4	SDV6	TDV6	SDV6		SDV8		P400e PHEV	SDV6 hybrid
Construction period	01 / 2017-05 / 2018	since 08/2018	09 / 2013-05 / 2018	09 / 2013-07 / 2015	since 07/2015	01 / 2014-07 / 2015	since 07/2015	since 01/2018	04 / 2014-07 / 2015	08 / 2015-03 / 2017
Motor characteristics
engine type	R4 diesel engine	V6 diesel engine				V8 diesel engine		R4 gasoline engine +electric motor	V6 diesel engine + electric motor
mixture preparation	Common rail direct injection							Gasoline direct injection	Common rail direct injection
engine charging	turbocharger	Biturbo						turbocharger
capacity	1999 cm³	2993 cm³				4367 cc		1997 cm³	2993 cm³
Max. power	177 kW (240 hp) at 4000 rpm	183 kW (249 hp) at 3500-4250 / min	190 kW (258 hp) at 4000 rpm	215 kW (292 hp) at 4000 rpm	225 kW (306 hp) at 4000 rpm	250 kW (339 hp) at 3500 rpm		297 kW (404 hp) at 5500 rpm	250 kW (340 hp) at 4000 rpm	260 kW (354 hp) at 4000 rpm
Max. torque	500 Nm at 1500 rpm	600 Nm at 1500-2500 / min	600 Nm at 2000 rpm	600 Nm at 2000 rpm	700 Nm at 1500-1750 / min	700 Nm at 1750-3500 / min	740 Nm at 1750-2250 / min	640 Nm at 1500-4000 / min	700 Nm at 1500-1750 / min
power transmission
Drive, standard	all wheel drive
Gearbox, standard	8-speed automatic transmission
readings
top speed	207 km / h	209 km / h		209/222 km / h	209/225 km / h	225 km / h		220 km / h	210 km / h
Acceleration, 0-100 km / h	8.3 s	7.9 s	7.6 s	7.2 s	7.2 s	6.9 s		6,7 s
Fuel consumption per 100 km (combined)	6.2 liters of diesel	7.5 l diesel	7.3 l diesel	7.5 l diesel	7.0 l diesel	8.6 liters of diesel	8.4 l diesel	2.8 l super	6.4 l diesel	6.2 liters of diesel
CO ₂emission (combined)	164 g / km	198 g / km	194 g / km	199 g / km	185 g / km	229 g / km	219 g / km	64 g / km	169 g / km	164 g / km
Emission standardaccording to EU classification	Euro 6	Euro 6d TEMP	Euro 6	5 euro	Euro 6 (since 08/2018: Euro 6d TEMP)	5 euro	Euro 6 (since 08/2018: Euro 6d TEMP)		5 euro	Euro 6

¹ In Europe from 01/2018

Range Rover Sport 2nd generation Technical data

parameters	SD4	SDV6	TDV6	SDV6		SDV8		P400e PHEV	SDV6 hybrid
Construction period	01 / 2017-05 / 2018	since 08/2018	09 / 2013-05 / 2018	09 / 2013-07 / 2015	since 07/2015	01 / 2014-07 / 2015	since 07/2015	since 01/2018	04 / 2014-07 / 2015	08 / 2015-03 / 2017
Motor characteristics
engine type	R4 diesel engine	V6 diesel engine				V8 diesel engine		R4 gasoline engine +electric motor	V6 diesel engine + electric motor
mixture preparation	Common rail direct injection							Gasoline direct injection	Common rail direct injection
engine charging	turbocharger	Biturbo						turbocharger
capacity	1999 cm³	2993 cm³				4367 cc		1997 cm³	2993 cm³
Max. power	177 kW (240 hp) at 4000 rpm	183 kW (249 hp) at 3500-4250 / min	190 kW (258 hp) at 4000 rpm	215 kW (292 hp) at 4000 rpm	225 kW (306 hp) at 4000 rpm	250 kW (339 hp) at 3500 rpm		297 kW (404 hp) at 5500 rpm	250 kW (340 hp) at 4000 rpm	260 kW (354 hp) at 4000 rpm
Max. torque	500 Nm at 1500 rpm	600 Nm at 1500-2500 / min	600 Nm at 2000 rpm	600 Nm at 2000 rpm	700 Nm at 1500-1750 / min	700 Nm at 1750-3500 / min	740 Nm at 1750-2250 / min	640 Nm at 1500-4000 / min	700 Nm at 1500-1750 / min
power transmission
Drive, standard	all wheel drive
Gearbox, standard	8-speed automatic transmission
readings
top speed	207 km / h	209 km / h		209/222 km / h	209/225 km / h	225 km / h		220 km / h	210 km / h
Acceleration, 0-100 km / h	8.3 s	7.9 s	7.6 s	7.2 s	7.2 s	6.9 s		6,7 s
Fuel consumption per 100 km (combined)	6.2 liters of diesel	7.5 l diesel	7.3 l diesel	7.5 l diesel	7.0 l diesel	8.6 liters of diesel	8.4 l diesel	2.8 l super	6.4 l diesel	6.2 liters of diesel
CO ₂emission (combined)	164 g / km	198 g / km	194 g / km	199 g / km	185 g / km	229 g / km	219 g / km	64 g / km	169 g / km	164 g / km
Emission standardaccording to EU classification	Euro 6	Euro 6d TEMP	Euro 6	5 euro	Euro 6 (since 08/2018: Euro 6d TEMP)	5 euro	Euro 6 (since 08/2018: Euro 6d TEMP)		5 euro	Euro 6

¹ In Europe from 01/2018
