Off-Road
Britain
2010s

Range Rover Velar

Range Rover Velar (2017-)

Production :

since 2017

Class :

SUV Off Road

Body versions :

station wagon

Stars in the Euro NCAP:

5 Stars

Engines:

Gasoline: 2.0-5.0 liters
Diesel: 2.0-3.0 liters

Wheelbase:

2874 mm

Length: 4803 mm
Width:1933 mm
Height: 1657 mm
Curb weight: 1804-2085 kg



The Range Rover Velar (code name L560) is an SUV of the British SUV manufacturer Land Rover.

History

The vehicle was presented in March 2017 at the Geneva Motor Show and came in September 2017 as the fourth model of the Range Rover series. The Velar is placed between the Range Rover Evoque and the Range Rover Sport and builds on the aluminium platform of the Jaguar F-Pace and 2,874 mm (113.1 in) wheelbase. All the Velar models come with a useful three-year or 60,000-mile warranty. It’s comfortable, quiet and drives well over long-distance and on the smaller roads as well as motorways

The name of the SUV is a reminder of the first Range Rover. The first prototypes in the late 1960s bore this name. The vehicle was presented to the public from 10 May 2017 to 16 July 2017 on an inland waterway vessel reconstructed for the launch. There two varieties the standard Velars and the sportier R-Dynamic versions all can tow up to 2,500kg.

The Range Rover Velar uses Jaguar Land Rover's Ingenium line of four-cylinder diesel and petrol engines in addition to JLR's six-cylinder engines. which include a 2.0L I4 petrol and 2.0L Ingenium P400e PHEV I4 petrol engines, with larger 3.0L P400 turbo MHEV I6 and 3.0L AJ126 Supercharged V6 petrol engines also the 5.0L AJ133 supercharged V8 petrol Autobiography Dynamic Edition the diesel engines 2.0L Jaguar Land Rover Ingenium t/c also MHEV and a 3.0L AJD V6 turbo-diesel

Range Rover Velar (2017-)

All models now use an automatic transmission, the 6-cylinder engines use the ZF 8HP70 8-speed automatic transmission. All 4-cylinder engines use the ZF 8HP45 8-speed automatic transmission. off road and off-road drive models include Dynamic mode, Basic Terrain Response, Eco, Comfort, Grass-Gravel-Snow, Mud-Ruts and Sand settings (see video below).

Range Rover Velar (2017-)

In the spring of 2018 Land Rover changed the engine range so that in the future it will meet the Euro 6d TEMP standard. For safety there it comes with Six airbags as standard and options for adaptive cruise control, plus blind-spot assist and lane-keeping assist the adaptive suspension as an option also.

Range Rover Velar Technical details and specifications (2017-)

On February 5, 2019, the manufacturer presented the series as Autobiography Dynamic Edition. It is powered by the 404 kW (550 hp) five-litre supercharged engine from the Jaguar F-Pace SVR.

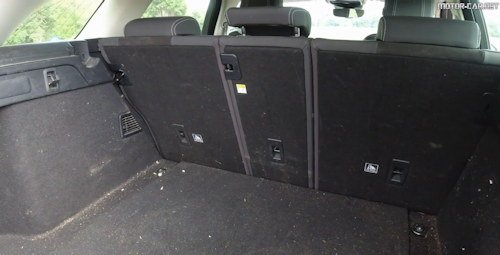

The Velar featuring LED headlights, heated front seats on all models. With upgrades such as navigation and a Meridian premium audio system. Boot space is large at 558 litres of capacity. That increases to 1,731 litres of capacity with the rear seats folded down but the rear room space is just about adequate for two adults only.

Range-Rover-Velar car Technical details and specifications

A revised version of the Velar was presented in September 2020. Since then, the SUV has also been available as a plug-in hybrid with a fast 0-60 mph time of around 5.4 second. The 48V electric supercharger (MHEV) 106 kW at 144 PS (142 hp). This P400e plug-in hybrid model. Land Rover claims up to 130mpg with combined range with a claimed 33 miles on battery alone.

Range-Rover-Velar history



Related items
SUV | Vehicles launched in 2017 | Range Rover | off road

Rating

Have you Say: Rate this
Overall Vote
80% - 1 vote
  • 1
  • 2
  • 3
  • 4
  • 5
1. Performance & Specification
  • 1
  • 2
  • 3
  • 4
  • 5
Built to last?
2. Appearance Overall *Cool factor*
  • 1
  • 2
  • 3
  • 4
  • 5
How good it looks ?

Technical

Technical
  • Range Rover Velar Technical data

    Petrol Engines

    parameters

    P250

    P300

    P380

    P400

    P400e PHEV

    SV Autobiography Dynamic Edition

    construction period

    09/2017 - 04/2018

    04/2018 - 09/2020

    since 09/2020

    09/2017 - 04/2018

    04/2018 - 09/2020

    09/2017 - 04/2018

    since 09/2020

    02/2019 - 09/2020

    engine characteristics

    engine type

    R4 petrol engine

    V6 petrol engine

    R6 petrol engine

    R4 petrol engine + electric motor

    V8 petrol engine

    mixture preparation

    direct fuel injection

    engine charging

    turbocharger

    compressor

    turbocharger

    compressor

    displacement

    1999cc

    1997cc

    1999cc

    2995cc

    1997cc

    4999cc

    compression ratio

    10.5:1

    9.5:1

    10.5:1

    9.5:1

    maximum power

    184 kW (250 hp)
    at 5500 rpm

    221 kW (300 hp)
    at 5500 rpm

    280 kW (380 hp)
    at 6500 rpm

    294 kW (400 hp)
    at 5500-6500 rpm

    297 kW (404 hp)
    at 5500 rpm

    404 kW (550 hp)
    at 6000-6500 rpm

    maximum torque

    365 Nm
    at 1200-4500 rpm

    365 Nm
    at 1300-4500 rpm

    400 Nm
    at 1500-4500 rpm

    450 Nm
    at 3500-4500 rpm

    550 Nm
    at 2000-5000 rpm

    640 Nm
    at 1500-4400 rpm

    680 Nm
    at 2500-5500 rpm

    power transmission

    Drive, standard

    all wheel drive

    Transmission, standard

    ZF 8-speed automatic transmission

    readings

    top speed

    217km/h

    220-234km/h

    234km/h

    220-250km/h

    250km/h

    240km/h

    274 km/h

    Acceleration,
    0-100km/h

    6.7s

    7.1s

    7.5s

    6.0s

    6.2s

    5.7s

    5.5s

    5.4s

    4.5s

    tank capacity

    63L

    82L

    63L

    82L

    69 l

    82L

    Fuel consumption
    per 100 km (combined)

    7.6L super

    8.1-8.5L Super

    7.7-7.8L Super

    7.8L super

    8.1-8.4L Super

    9.4L super

    8.9L super

    2.3L super

    12.3L super

    CO 2 emissions
    (combined)

    173g/km

    185-193g/km

    174-177g/km

    178g/km

    185-193g/km

    214g/km

    202g/km

    52-53g/km

    270g/km

    Emissions standard according to
    EU classification

    euro 6

    Euro 6d TEMP

    Euro 6d

    euro 6

    Euro 6d TEMP

    euro 6

    Euro 6d

    Euro 6d TEMP

    Diesel Engines

    parameters

    D180

    D200

    D240

    D275

    D300

    construction period

    09/2017 - 04/2018

    04/2018 - 09/2020

    since 09/2020

    09/2017 - 04/2018

    04/2018 - 09/2020

    09/2017 - 04/2018

    04/2018 - 09/2020

    since 09/2020

    engine characteristics

    engine type

    R4 diesel engine

    V6 diesel engine

    R6 diesel engine

    mixture preparation

    Common rail direct injection

    engine charging

    turbocharger

    Biturbo

    displacement

    1999cc

    1997cc

    1999cc

    2993cc

    2996cc

    compression ratio

    15.5:1

    16.5:1

    15.5:1

    16.1:1

    15.5:1

    maximum power

    132 kW (180 hp)
    at 4000 rpm

    150 kW (204 hp)
    at 4250 rpm

    177 kW (240 hp)
    at 4000 rpm

    202 kW (275 hp)
    at 4000 rpm

    221 kW (300 hp)
    at 4000 rpm

    maximum torque

    430 Nm
    at 1500 rpm

    430 Nm
    at 1750-2500 rpm

    500 Nm
    at 1500 rpm

    625 Nm
    at 1500 rpm

    700 Nm
    at 1500-1750 rpm

    650 Nm
    at 1500-2500 rpm

    power transmission

    Drive, standard

    all wheel drive

    Transmission, standard

    ZF 8-speed automatic transmission

    readings

    top speed

    209km/h

    193km/h

    210km/h

    217km/h

    218km/h

    220-241km/h

    150 mph

    230km/h

    Acceleration,
    0-100km/h

    8.9s

    8.2s

    7.3s

    7.4s

    7.0s

    6.5s

    6.7s

    6.5s

    tank capacity

    60L

    66L

    Fuel consumption
    per 100 km (combined)

    5.4L diesel

    5.7-6.1L Diesel

    5.3L diesel

    5.8L diesel

    6.2-6.6L Diesel

    6.5-6.8L Diesel

    6.4L diesel

    6.5-6.8L Diesel

    6.9L diesel

    CO 2 emissions
    (combined)

    142g/km

    151-161g/km

    139-141g/km

    164-174g/km

    154g/km

    171-180g/km

    167g/km

    171-180g/km

    183g/km

    Emissions standard according to
    EU classification

    euro 6

    Euro 6d TEMP

    Euro 6d

    euro 6

    Euro 6d TEMP

    euro 6

    Euro 6d TEMP

    Euro 6d
