Renault Kangoo I

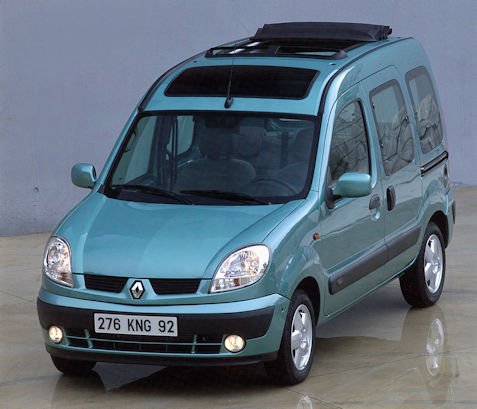

Renault Kangoo I Service Guide (1997-2010)
Make  Renault
Years of production 1997 - 2010 (Europe)

Phase 1: 1997 - 2003
Phase 2: 2003 - 2006
Phase 3: 2006 - 2010
Argentina: 1999 - 2018

Production 2,200,000 aprox
Classroom Utility light
Ludospace
Pick up
TPMR Somac
Motor (s) Gasoline
1,0 59/68 hp
1,2 60/75 hp
1,4 75 hp
1.6 95 hp
Diesel
1.9 D 55/65
1,9 dTi 80 hp
1.9 Dci 80/85 hp
1,5 dCi 55/60 / 65/70/80 hp
Electric
15 to 30 kW (132 volt)
Hybrid-Petrol
0.5 22 to 29 hp + 100 Ah at 132 volts or 11.5 kWh = <50 hp
LPG
1,2 60 hp
GNV Somac
1,4 Vacuumed 70 hp
1.6 Injected 90 hp
Engine position Transversal before
Displacement 1.0 to 1.6  cm 3
Maximum power 55 to 95  hp
Maximum torque 81 to 185  Nm
Gearbox Manual 5 speed
Automatic 4 speed
Unloaded weight From 975 to 1,085 kg
Maximum speed 135 to 177 km / h
Acceleration 0 to 100 km / h in 21.2 to 10.7 s
Mixed consumption 8.5 to 5.3 L / 100 km
Emission of CO 2 From 139 to 205 g / km
Bodywork (s) Utility 3 door, 2 seater
Utility 4 door, 2 seater
Ludospace 4 door, 5 seater
Ludospace 5 door, 5 seater
Pickup 2 door, 2 seater
Frame Renault Clio I
Length 4,035 mm
Width 1,670 mm
Height 1,855 mm
wheelbase 2,605 mm


The Renault Kangoo is a car manufactured by Renault from October 1997. The MPV version of the first Kangoo was produced in France until 2008, and until 2010 in a utility version , but the model is still produced in both variants in Argentina. The Kangoo 2 replaces it in 2007, which is significantly larger.The utility version of Kangoo is called Kangoo Express . The first generation was also marketed by Nissan in Latin America and Europe as Kubistar .

The Kangoo was classified in the category MPV , it was presented as a practical family car, highlighting the large volume of its interior, and as an alternative to compact minivans.

Before this, other vehicles had attempted the marriage of the volume of a utility in the back seat of a sedan, accompanied by a tailgate instead of the double-door of the trunk. Among them are the Matra-Simca Rancho , the presence of a civilian version in the Renault Express range , and more contemporary to the Kangoo, the twin Citroën Berlingo and Peugeot Partner .

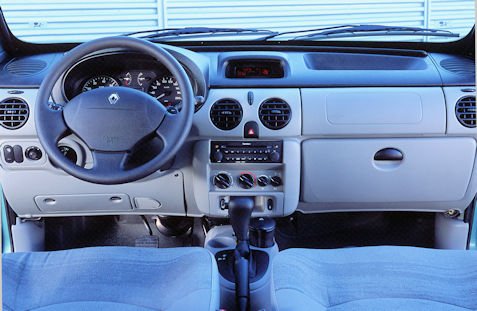

Renault Kangoo I Technical details (1997-2010)

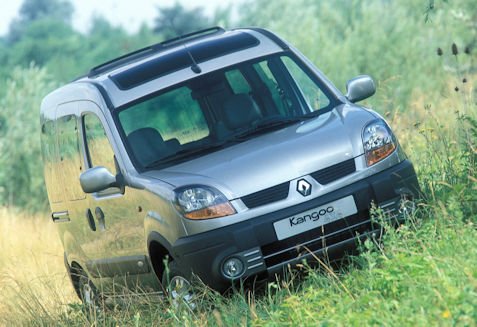

The main innovation of the Kangoo was its third sliding door, highlighting the practical aspect of the car, both in civil and utility version. PSA then incorporated a third door to its two MPVs, at the time Renault equipped the Kangoo with a fourth door. The Kangoo doors have since been used in the main European general manufacturers version of their vans , equipped with two sliding rear doors.As early as 1998, an all-road version (2-wheel drive, raised slight by 5 cm ) appeared under the name "Pampa" in  some markets. It will be completed by a 4x4 version from 2001.
Renault Kangoo I Repair Manual (1997-2010)

The Kangoo was restyled in April 2003 (phase II): new front, new taillights, dashboard, etc. General improvements in handling , soundproofing , finishing and equipment. In Europe where the second generation is introduced in 2007, the MPV continues its career until 2008, while the utility van is extended until 2010.

  • 1997-2010: MCA plant (Maubeuge Construction Automobile) in Maubeuge (59), France
  • 1999-2017: Factory of Santa Isabel in Córdoba (Argentina)

The Kangoo is again restyled in 2014 with a new grille, inspired by the Clio, especially for the Argentinean market, where it competes with the first generation Berlingo.Its production stops in 2017.In 2018 , he was replaced in Argentina by a rebadged Renault version of Dacia Dokker .

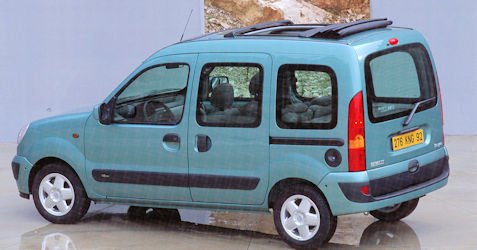

Renault Kangoo I Specifications (1997-2010)


Renault Previous 55 / 84 Next

Related

Related items
Renault Kangoo | France 2000s | France 1990s | Vehicles launched in 1997 | Vans | Commercial vehicles

Technical

Technical
  • Motorizations

      1.9 D 55 1.9 D 65 1.9 dTi 80 1.9 Dci 80 1.9 Dci 85
    Motor types F8Q F9Q
    Displacement 1,870  cm 3
    Bore (mm) / stroke (mm) 80/93
    Architecture 4 cylinders online
    Max power 55  hp at  4500  rpm 65  hp at  4500  rpm 80  hp at  4500  rpm 80  hp at  4000  rpm 84  hp at  4000  rpm
    Max torque 125  Nm at a speed of  2250  rpm 120  Nm at a speed of  2250  rpm 160  Nm at a speed of  2000  rpm 180  Nm at a speed of  2000  rpm
    Gearbox BVM5 BVM5

    4x4

    Max speed 135 140 160 142 146
    0- 100  km / h 19.5 21.2 14.1 14.7 16.2
    Consumption (in L / 100 km) 6.8 7.3 5.7 7.4
    CO 2 emissions (in g / km) NC 154 176 196



      1.5 DCi 55 1.5 DCi 60 1.5 DCi 65 1.5 DCi 70 1.5 DCi 80 1.5 DCi 85
    Motor type K9K
    Displacement 1,461  cm 3
    Bore (mm) / stroke (mm) 76 / 80.5
    Architecture 4 cylinders online
    Max power 55  hp at  5250  rpm 60  hp at  5250  rpm 65  hp at  4000  rpm 68  hp at  4000  rpm 80  hp at  4000  rpm 85  hp at  4250  rpm 88  hp at  4250  rpm
    Max torque 130  Nm at a speed of  2000  rpm 160  Nm at a speed of  2000  rpm 160  Nm at a speed of  2000  rpm 185  Nm at a speed of  1750  rpm
    Gearbox BVM5 BVM5

    4x4

    BVM5 BVM5 BVM5

    4x4

    BVM5 BVM5 BVM5

    4x4

    BVM5 BVM5

    4x4

    Max speed 138 140 146 148 155 157
    0- 100  km / h 18.6 17.9 16 12.5 11.3
    Consumption (in L / 100 km) 5.3 5.4 5.5 5.3
    CO 2 emissions (in g / km) 141 144 146 147 139
      1.0 8V 60 1.0 16V 70 1.2 8V 60 1.2 16V 75 1.4 75 1.6 95
    Motor types D7D D4D D7F D4F E7J (Energy) - K7J K4M
    Displacement 999  cm 3 1 149  cm 3 1,390  cm 3 1,598  cm 3
    Bore (mm) / Stroke (mm) 69 / 66.8 69 / 76.8 E7J: 75.8 / 77 K7J: 79.5 / 70 79.5 / 80.5
    Architecture 4 cylinders online
    Max power 59  hp at  5500  rpm 68  hp at  5750  rpm 60  hp at  5250  rpm 75  hp at  5500  rpm 75  hp at  5500  rpm 95  hp at  5000  rpm
    Max torque 81 Nm at  4250  rpm 93 Nm at a speed of  4500  rpm 93 Nm at a speed of  2500  rpm 106  Nm at a speed of  3500  rpm 114  Nm at  4250  rpm 148  Nm at a speed of  3750  rpm
    Gearbox BVM5 BVM5 BVM5 BVM5 BVM5

    4x4

    BVM5 BVA4 BVM5 BVM5

    4x4

    BVA4
    Max speed 135 144 140 154 157 155 147 179 153 152
    0- 100  km / h 21.2 18.6 17.2 14.2 13.5 14.9 16.9 10.7 13.1 12.4)
    Consumption (in L / 100 km) NC 6.9 7 7.5 7.9 7.5 8.5 8
    CO 2 emissions (in g / km) NC 163 165 177 188 177



      Electric Hybrid LPG 1.2 60 GNV 1.4 70 GNV 1.6 90
    Displacement NC Thermal: 475  cm 3 1 149  cm 3 1,390  cm 3 1,598  cm 3
    Architecture synchronous wound rotor Bycilindre 4 cylinders 4 cylinders 4 cylinders
    Max power 15 to 30 kW Electric: 22 (29) kW

    Thermal: 22 hp

    60  hp at  5250  rpm - 82  hp at  5000  rpm
    Max torque 165 Nm Thermal:

    35 Nm

    Electric:

    165 Nm

    91  Nm at  2500  rpm - 148  Nm at a speed of  3750  rpm
    Gearbox - - BVM5
    Max speed 103 134 - 158
    0- 100  km / h 0 to 80:

    <25

    0 to 80:

    <25

    18.8 - 14.9
    Consumption (in L / 100 km) 0 0 to 9 9 - 8.5
    CO 2 emissions (in g / km) 0 0 to 40 166 NC
    Autonomy (in km) 60 to 100 150 to 200 NC



Service

Service

  • Engine: Renault Kangoo I 1.2L Petrol OHC (1140cc)

    Compression ratio - 9.65:1
    Ignition system - Sagem
    Diagnostic socket - fitted
    Valve clearance -INLET 0.10 (Check cold)
    Valve clearance -EXHAUST 0.20 (Check cold)
    Firing order - 1-3-4-2
    Engine oil grade - normal climate 10W/30 SAE
    Engine oil change - 4.0 litres
    Manual gearbox oil grade - 75W/80SAE
    Manual gearbox oil refill - 3.4 litres
    Cooling system - 5.0 litres
    Thermostat opens - 89c

    Note:
    All engines and full specifications available for registered users
