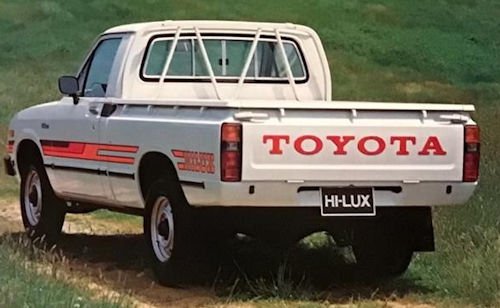

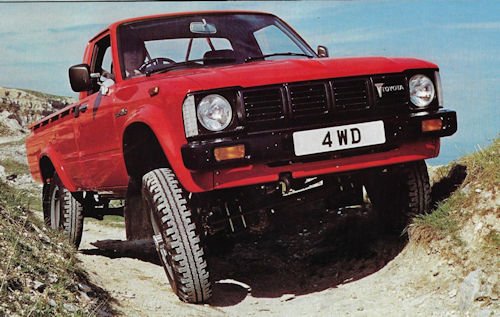

Toyota Hilux Third generation
 | |
Model code |
|
Production | 1978 to 1983 |
Body style |
|
Layout |
|
Engine |
|
Transmission |
|
Wheelbase |
|
Curb weight |
|
The redesigned Hilux was introduced in August 1978.
From January 1979, the export also began in Europe , with which from 1981, the L-series diesel engine was installed. Four-wheel drive was now available in North America. Optionally, a 3-speed automatic transmission was available. In 1981, the joint development of an SUV based on the Hilux between Toyota and Winnebago Industries began . The vehicles that resulted from this collaboration were the Trekker (Winnebago), the Wolverine and the Trailblazer (Griffith). All three used the Hilux 4x4 RV cab and chassis. The Trailblazer had an all-steel body with fiberglass roof, at least 1,500 trekkers, 400 trail blazers, and an unknown number of wolverines have been sold in North America.
From then on, based on these models, the Toyota 4Runner and Toyota Hilux Surf was developed.
EQUIPMENT
Bench seat with head restraints, Steering lock,interior mirror, 2 door mirrors, driver & passenger sun visors, cigarette lighter, parcel tray, rubber floor mats, two-speed wipers with intermittent wipe, locking fuel cap, heavy duty heat mister with side demister, fuel tank shield, heavy duty rear springs,
front free wheel hubs, hazard flashers, guard frame,front towing hook, seat belts, brake low level warning light, wing liners, rear deck guard panel, mud flaps.
OPTIONAL EQUIPMENT
Rear deck tonneau cover, bow & tilt.
Engines
- 1978-1980: 2.2 litres (2189 cc), 20R SOHC I4, 67 kW (90 hp)
- 1981-1983: 2.4 litres (2366 cc), 22R SOHC I4, 72 kW (96 hp)
- 1981-1983: 2.2 Liter diesel I4, 46 kW (62 hp)
- 1981-1983: 1.8 litres (Australia)
Rating
Technical
-
ENGINE
Four cylinder. single OHC, water cooled,
five bearing crankshaft.
Bore & Stoke: 85.5mm x 80.0mm.
Capacity :1968 cc.
Compression ratio: 8.5 : 1
Max. power: S9 bhp @ 5,000 rpm (DIN)
torque: 107b ft. @ 3,600 rpm (DIN)
Nikki choke down draught carburettor with automatic choke.
12 60 amp. hour.
Alternator: 12 volt 40 amp.CLUTCH
Single dry plate, 10.0 ins. (254 mm) dia.GEARBOX
Manual 4 speed, all synchromesh, floor change.
Ratio: 1st 4-016.2nd 2.510. 3rd 1.534. 4th 1.000. Rev 4.571 : 1.TRANSFER BOX
2 speed helical gear, 2/4 wheel drive.
Ratio: High 1.000 low 2.277 : 1.FINAL DRIVE
Semi-floating, hypoid, ratio 4.875 .
Free wheeling front hubs.STEERING
Recirculating ball, variable ratio 20.5—23-5 : 1 with damper.BRAKES
Dual circuit hydraulic with 254 mm (10 ins) front disc, 254 mm (10 ins) rear drums
load sensitive pressure valve. Tandem master cylinder with 190 mm (7-5 ins) servo.SUSPENSION
Front : Live axle, semi-elliptic leafsprings, radius rods and double acting telescopic shock absorbers.
Rear : Live axle, semi-elliptic leaf springs, double-acting shock absorbers.WHEELS & TYRES
Pressed steel 5-5J x 16
7.00—16.6 ply semi lug Dunlop tyres.TANK CAPACITY
13-4 Imp. gallons (61 litres).
DIMENSIONS & WEIGHTS
Wheelbase 2800 mm. (110.2 ins)
Track front 1420 mm. (55-9 ins)
Track rear 1400 mm. (55.1 ins)
Overall length 4725 mm. (186.0 ins)
Overall width 1690 mm. (66.5 ins)
Overall height 1775 mm. (69-9 ins)
Ground clearance 305 mm. (12.0 ins)
Kerb weight 1315 kg. (2893 lbs)
Gross weight 2400 kg. (5280 lbs)
Towing Capacity with brake 23.6 cwt. (1200 kg)
Without brake 7.85 cwt. (400 kg)-Note: More Specifications and Repair Manuals available for registered users
